Samson C03U User Manual

10
ENGLISH

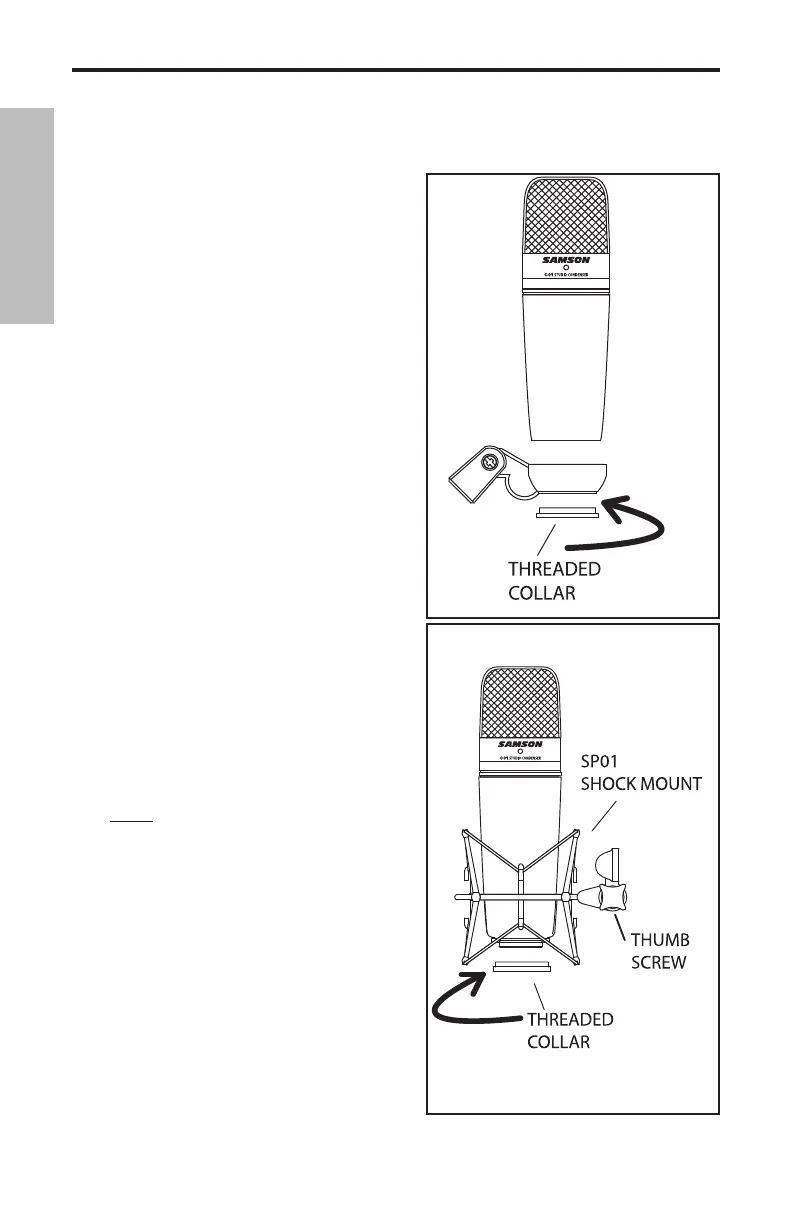

Using the Optional SP01 “Spider” Shock-Mount
Using the Optional SP01 Shock-Mount
1
2
For additional isolation the C03U can be
fitted on the optional SP01 “Spider” shock
mount. Follow the steps below the to install
the SP01.
• First, screw the SP01 shock mount onto
your mic stand or boom arm. If you’re
using a US 5/8” mic stand or boom,
remove the Euro adapter.
• Remove the C03U swivel mount by
rotating the threaded collar counter-
clockwise as shown in figure 1.
• Install the C03U into the SP01 by fitting
the microphone into the center of the
web, positioning the C03U onto the bot-
tom mounting plate.
• Secure the SP01 by reinstalling the
threaded collar, rotating clockwise until
tight. (Figure 2)
• Now, loosen the thumb screw to adjust
the angle of the microphone and posi-
tion the C03U to the desired location.
Once set, tighten the thumbscrew to
secure the microphone in place.
Note: Be careful not to cross thread
or over tighten the threaded collar or
thumb screw.

Samson C03U Specifications

General

Type	Stage/performance microphone
Bit rate	16 bit
Sample rate	48 kHz
Microphone frequency	20 - 18000 Hz
USB port	Yes
Connectivity technology	Wired
Depth (imperial)	3.5 \
Width (imperial)	10.5 \
Height (imperial)	13 \
Product color	Gray

Weight and Dimensions

Microphone weight	453 g
