18
MDR8 System Set-Ups

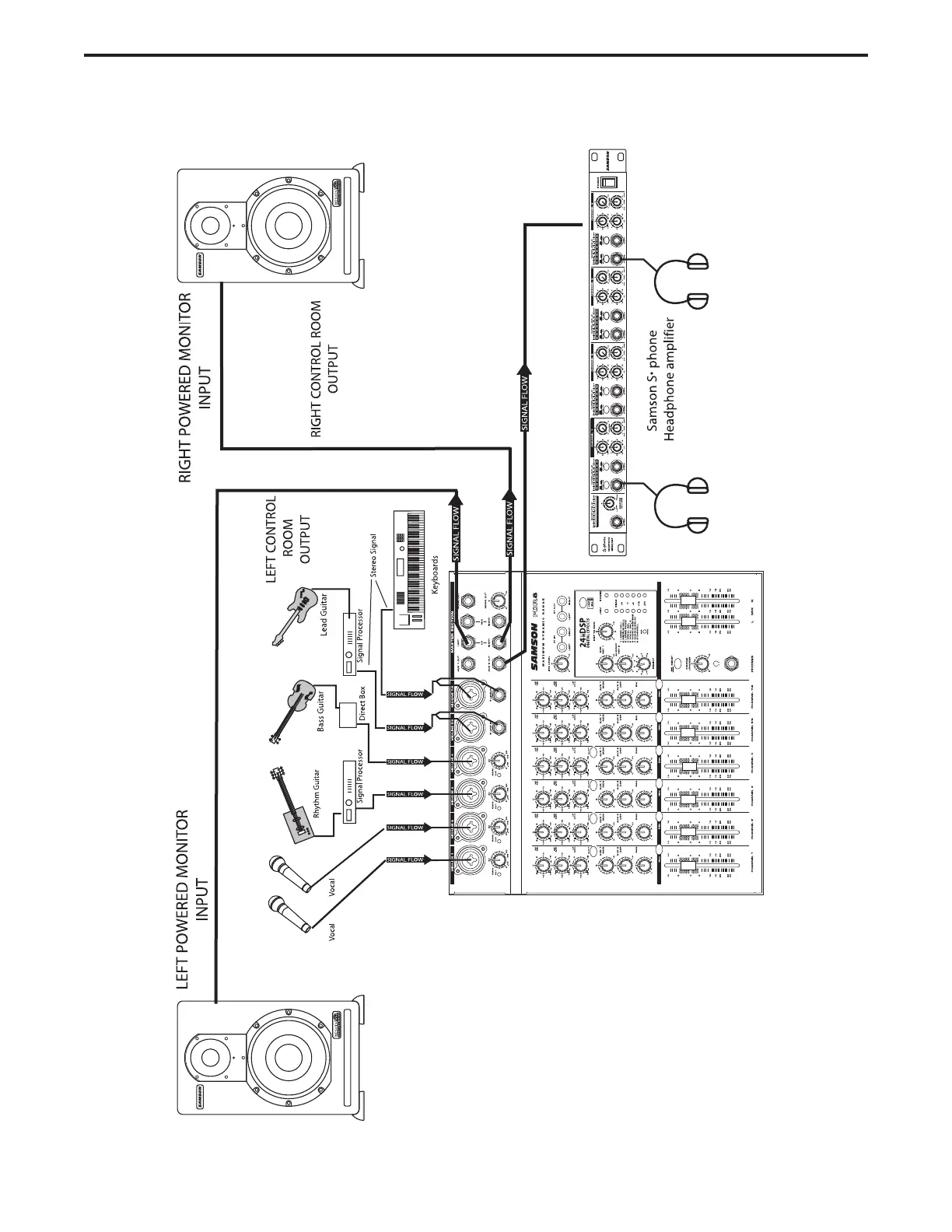

This system shows the MDR8 in
a recording set up with the
LEFT and RIGHT CONTROL
ROOM output hooked up to
powered studio monitors and
the AUX 1/ Mon feed head-
phone mix sent to a Samson S
phone headphone amp. For
inputs, two microphones are
connected to channel 1 and 2’s
low-impedance inputs, and the
output of the Bass Direct Box is
also connected to the low-
impedance input on channel
4. The Keyboards, as well as
the Lead and Rhythm Guitar
signal processor's’ outputs, are
connected to the MDR8’s line
inputs.
MDR8 RECORDING SET-UP
