Samson PA324 User Manual

Tip (signal)Signal
Signal
Sleeve (ground)
Ground
Ground
Tip (signal)
Signal (tip)
Signal (ring)
Signal (tip)
Signal (ring)
Ring (signal)
Sleeve (ground)
Ground
Ground

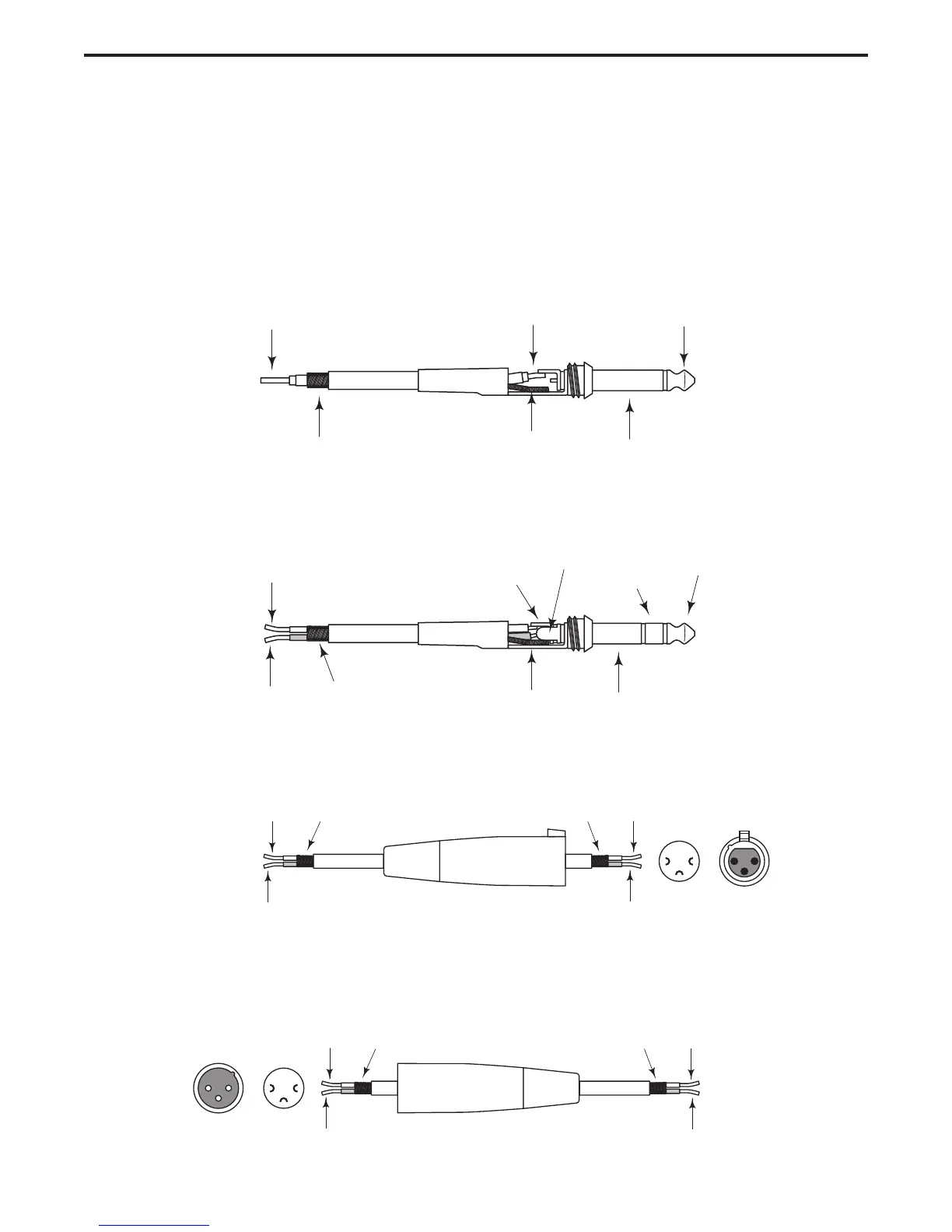

PA324 Wiring Guide
1
3
2
2
3
1
Hot
Cold
Female XLR
Male XLR
Hot (2)
Cold (3)
Common (1)Common
Hot
Cold
Hot (2)
Cold (3)
Common (1) Common
Solder Points End View
End View Solder Points
12
3
21
3
Unbalanced 1/4” Connector
XLR Balanced Wiring Guide
CONNECTING THE PA324
The are several ways to interface the PA324 to support a variety of applications. The PA324 features balanced
inputs and outputs, so connecting balanced and unbalanced signals is possible.
Balanced TRS 1/4” Connector
18
