8

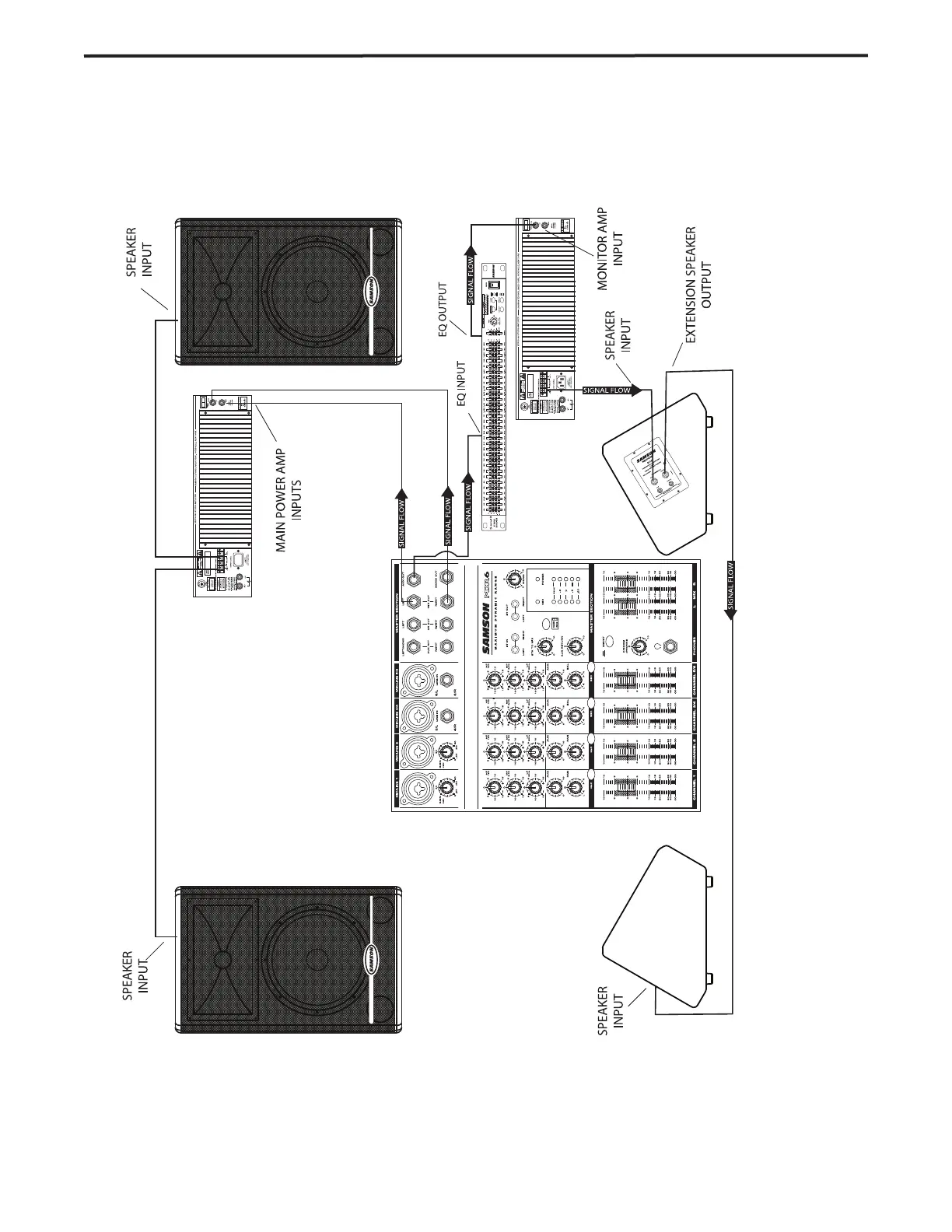

This example shows a typical PA system using a mixer with an external power amplifier and a pair of Resound HDs for the main left
and right mix. A separate signal from the mixer’s AUX/MONITOR bus is sent to two additional Resound HD’s placed in the tilt-back,
wedge positions for use as floor monitors. In order to increase the output of the monitor system, the use of an external graphic equal-
izer like one of the Samson “E” or “S curve” series is highly recommended.
Setting Up Your Resound HD System
