Resound HD Wiring Guide
4IPSIGNAL3IGNAL
3IGNAL
3LEEVEGROUND
'ROUND
'ROUND
SPEAKON™
SPEAKON™
+
-
1- 1+
2+ 2-
NOT CONNECTED
Unbalanced 1/4” Connector

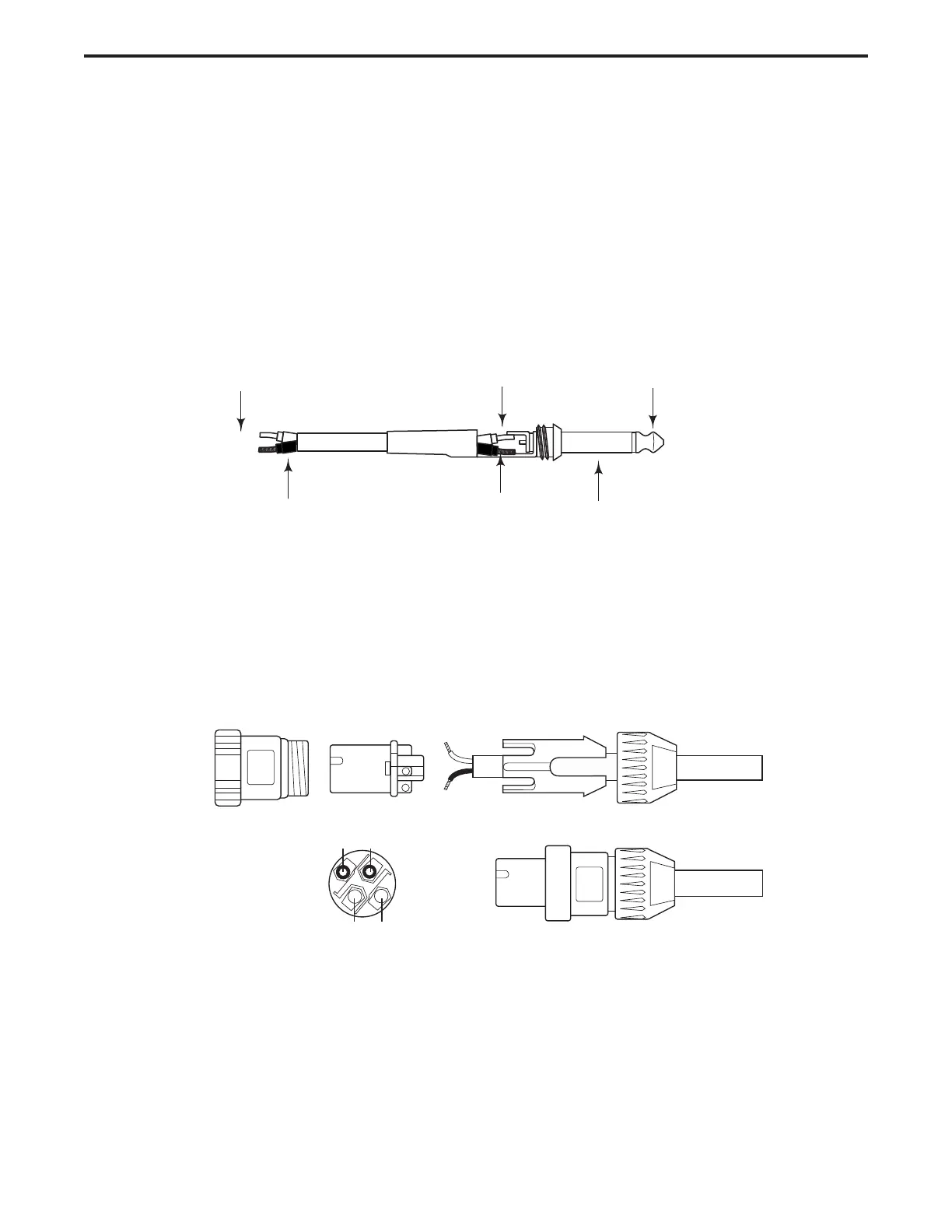

Speakon Wiring Guide
The Resound HD provides both Speakon and 1/4” phone connectors for easy interface with industry standard cables.
You can use a variety of standard speaker cables that are available “off the shelf” at your local pro-audio or musical
instrument retailer. Be sure that cables use standard, stranded speaker wire. A 12-14 gauge is recommended. If you are
making your own cables, use the diagrams following below to ensure a proper hook up.
