Samson XPL200 - Page 11

Expedition Pro XPL200
UTILISER UN FUSIBLE
DE RECHANGE DE
MEME TYPE.
AMPLIFIED SPEAKER CABINET
BI-AMPED 150 WATTS L OW
50 WATTS HIGH FREQUENCY
SIGNAL OUTPUT
SIGNAL INPUT
AC OUT
350VA MAX
POWER
AC
CAUTION:
ATTENTION:
FOR CONTINUED
PROTECTION
AGAINST RISK
OF FIRE,
REPLACE ONLY
WITH SAME
TYPE OF FUSE.
FUSE: T5AL 250V
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
VOLUME
RATING
POWER
100-240 V ~ 50Hz/60Hz 360W
100
5
LIMITER
AC IN
ON
CHARGE
BATTERY OPERATION
OFF
+3dB
0dB
-10dB
75%
50%
25%
BATTERYMAIN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
UTILISER UN FUSIBLE
DE RECHANGE DE
MEME TYPE.
AMPLIFIED SPEAKER CABINET
BI-AMPED 150 WATTS L OW
50 WATTS HIGH FREQUENCY
SIGNAL OUTPUT
SIGNAL INPUT
AC OUT
350VA MAX
POWER
AC
CAUTION:
ATTENTION:
FOR CONTINUED
PROTECTION
AGAINST RISK
OF FIRE,
REPLACE ONLY
WITH SAME
TYPE OF FUSE.
FUSE: T5AL 250V
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
VOLUME
RATING
POWER
100-240 V ~ 50Hz/60Hz 360W
100
5
LIMITER
AC IN
ON
CHARGE
BATTERY OPERATION
OFF
+3dB
0dB
-10dB
75%
50%
25%
BATTERYMAIN
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
SAMSON
MPL2242
MMPL2242
MPL2242

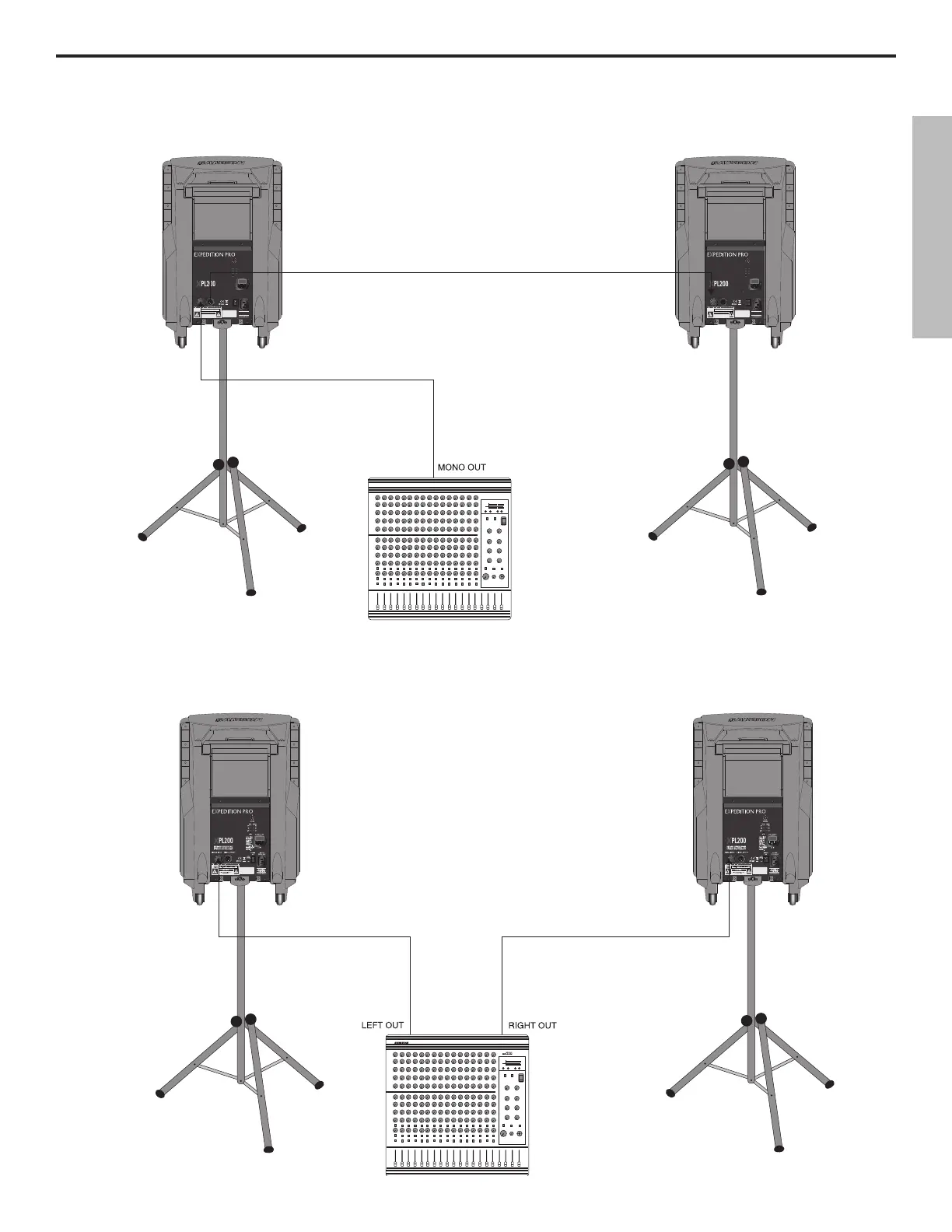

Using two XPL200s in mono: A single mono signal (bus or aux send) is routed from a mixer to one XPL200’s XLR input, and a
connection is made between that XPL200’s XLR output to a second XPL100’s XLR input.
Using two XPL200s in stereo: A stereo signal (bus or aux send) is routed from a mixer, with the left side connected to one
XPL200’s XLR input, and the right side connected to the other XPL200’s XLR input.
ENGLISH
7
