Expedition Pro XPL100

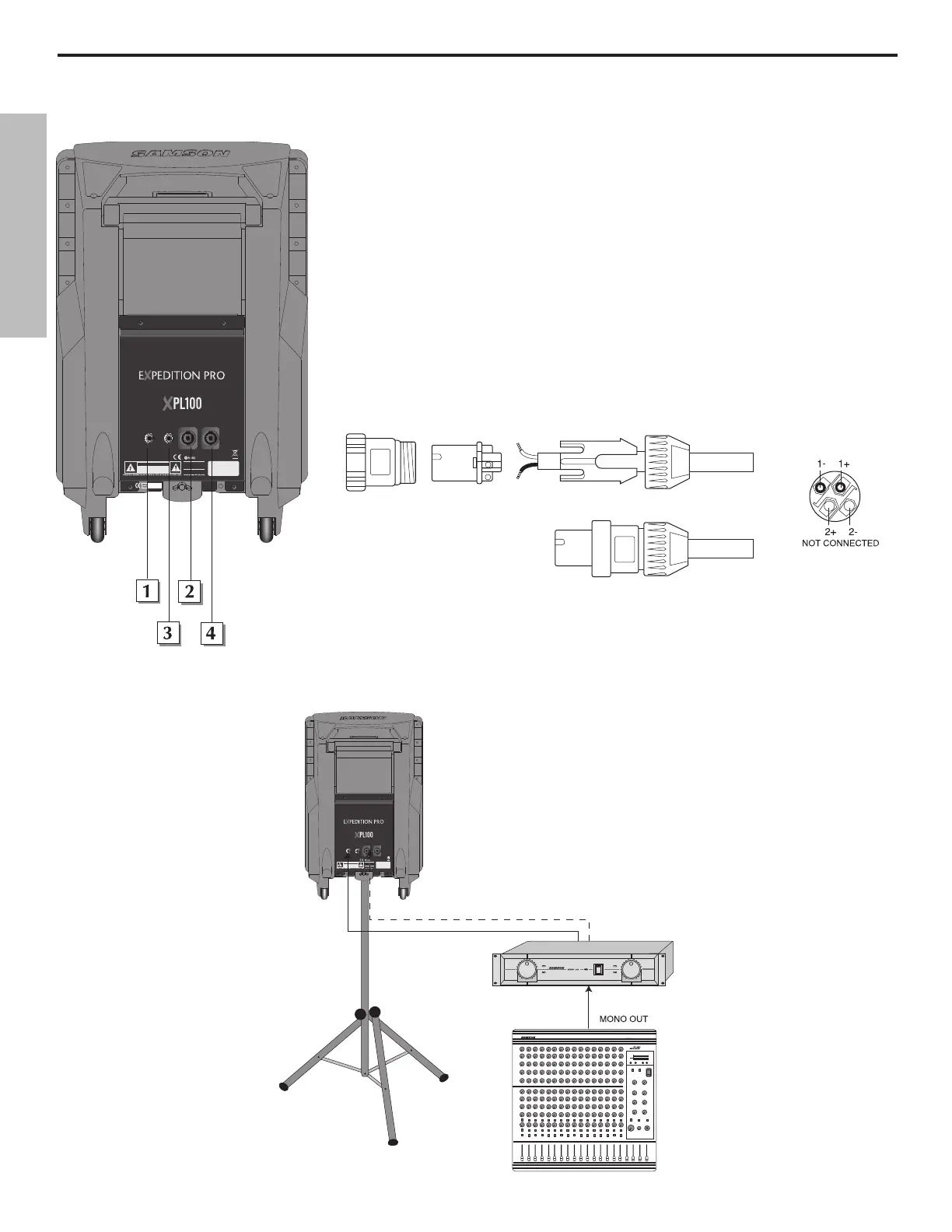

Guided Tour
1: 1/4" input - Use this standard 1/4" connector to connect signal from a power
amplifier (rated at up to 250 watts into 8 ohms) to the XPL100.
2: Speakon™ input - Alternatively, you can use this Speakon™ connector to connect
signal from a power amplifier (rated at up to 250 watts into 8 ohms) to the XPL100.
3: 1/4" extension - Use this standard 1/4" connector to daisy-chain one XPL100 to
another. See below for interconnection diagrams.
4: Speakon™ extension - Alternatively, you can use this Speakon™ connector to
daisy-chain one XPL100 to another. See below for interconnection diagrams.
Speakon™ Wiring
Interconnecting the XPL100
AMPLIFIER INPUTS AND EXTENSIONS
INPUT EXTENSION
MAXIMUM POWER
250 WATTS RMS
2 WAY 8 OHM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
INPUT EXTENSION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
SPEAKON™
SPEAKON™
+
-
AMPLIFIER INPUTS AND EXTENSIONS
INPUT EXTENSION
MAXIMUM POWER
250 WATTS RMS
2 WAY 8 OHM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
INPUT EXTENSION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
Using one XPL100: A single mono signal (bus or aux
send) is routed from a mixer to a power amplifier. One
speaker output of the power amplifier is connected to either
the XPL100 1/4" input connector (solid line) or Speakon™
input connector (dotted line).
