Expedition Pro XPL100
AMPLIFIER INPUTS AND EXTENSIONS
INPUT EXTENSION
MAXIMUM POWER
250 WATTS RMS
2 WAY 8 OHM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
INPUT EXTENSION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
AMPLIFIER INPUTS AND EXTENSIONS
INPUT EXTENSION
MAXIMUM POWER
250 WATTS RMS
2 WAY 8 OHM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
INPUT EXTENSION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
SAMSON
MPL2242
MMPL2242
MPL2242
SERVO - 240
SAMSON
AMPLIFIER INPUTS AND EXTENSIONS
INPUT EXTENSION
MAXIMUM POWER
250 WATTS RMS
2 WAY 8 OHM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
INPUT EXTENSION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
AMPLIFIER INPUTS AND EXTENSIONS
INPUT EXTENSION
MAXIMUM POWER
250 WATTS RMS
2 WAY 8 OHM
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
INPUT EXTENSION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE.
AVIS;
MADE IN CHINA
SAMSON
MPL2242
MMPL2242
MPL2242
SERVO - 240
SAMSON

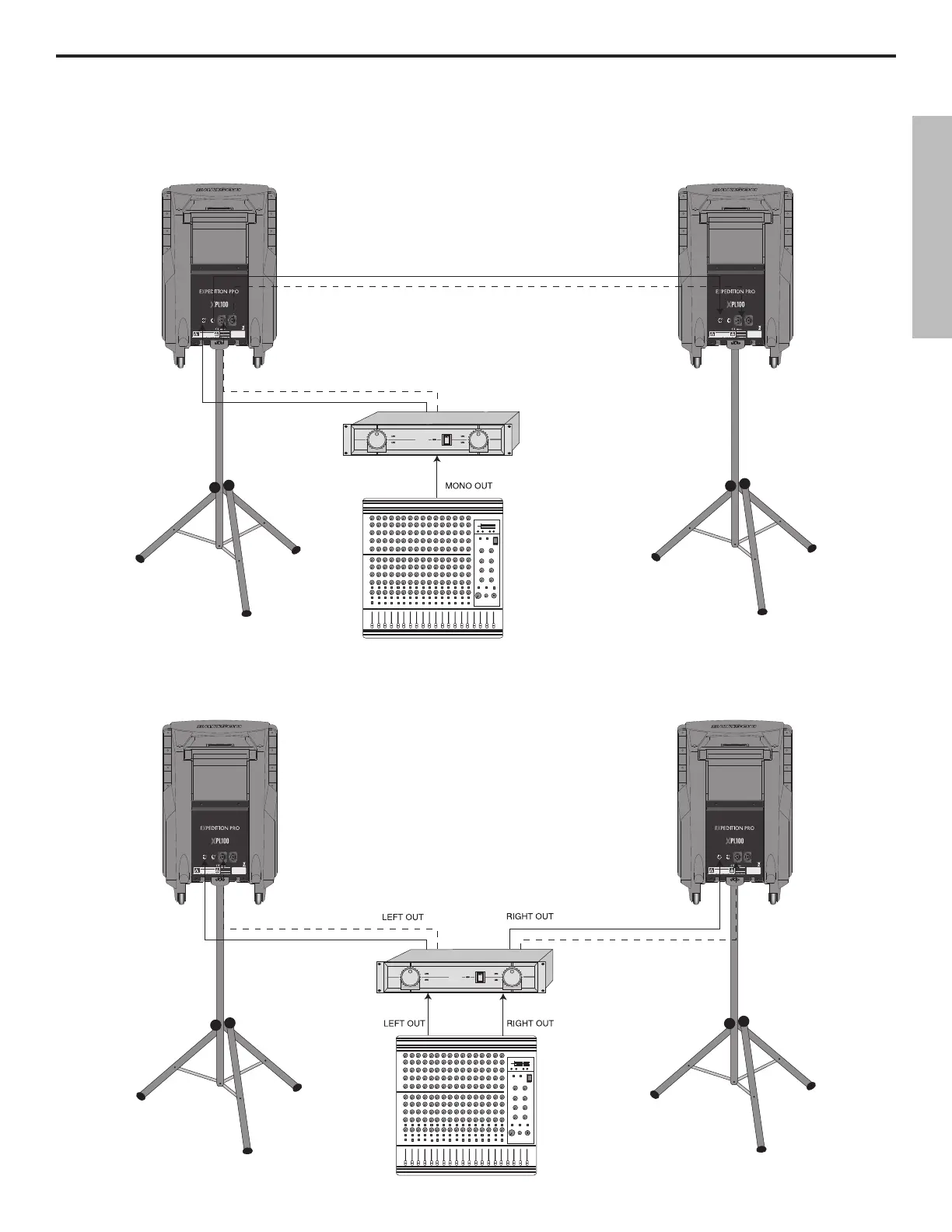

Using two XPL100s in mono: A single mono signal (bus or aux send) is routed from a mixer to a power amplifier. One speaker
output of the power amplifier is connected to either the XPL100 1/4" input (solid line) or Speakon™ input (dotted line), and a con-
nection is made between either the 1/4" extension to a second XPL100’s input (solid line) or between the Speakon™ extension to a
second XPL100’s Speakon™ input (dotted line).
Using two XPL100s in stereo: A stereo signal (bus or aux send) is routed from a mixer to a power amplifier. The left speaker out-
put of the power amplifier is connected to one XPL100 (using either the 1/4" input [solid line] or Speakon™ input [dotted line]),
and the right speaker output of the power amplifier is connected to the other XPL100 (again using either the 1/4" input [solid line]
or Speakon™ input [dotted line]).
ENGLISH
5
