Samsung Electronics
5-3
■

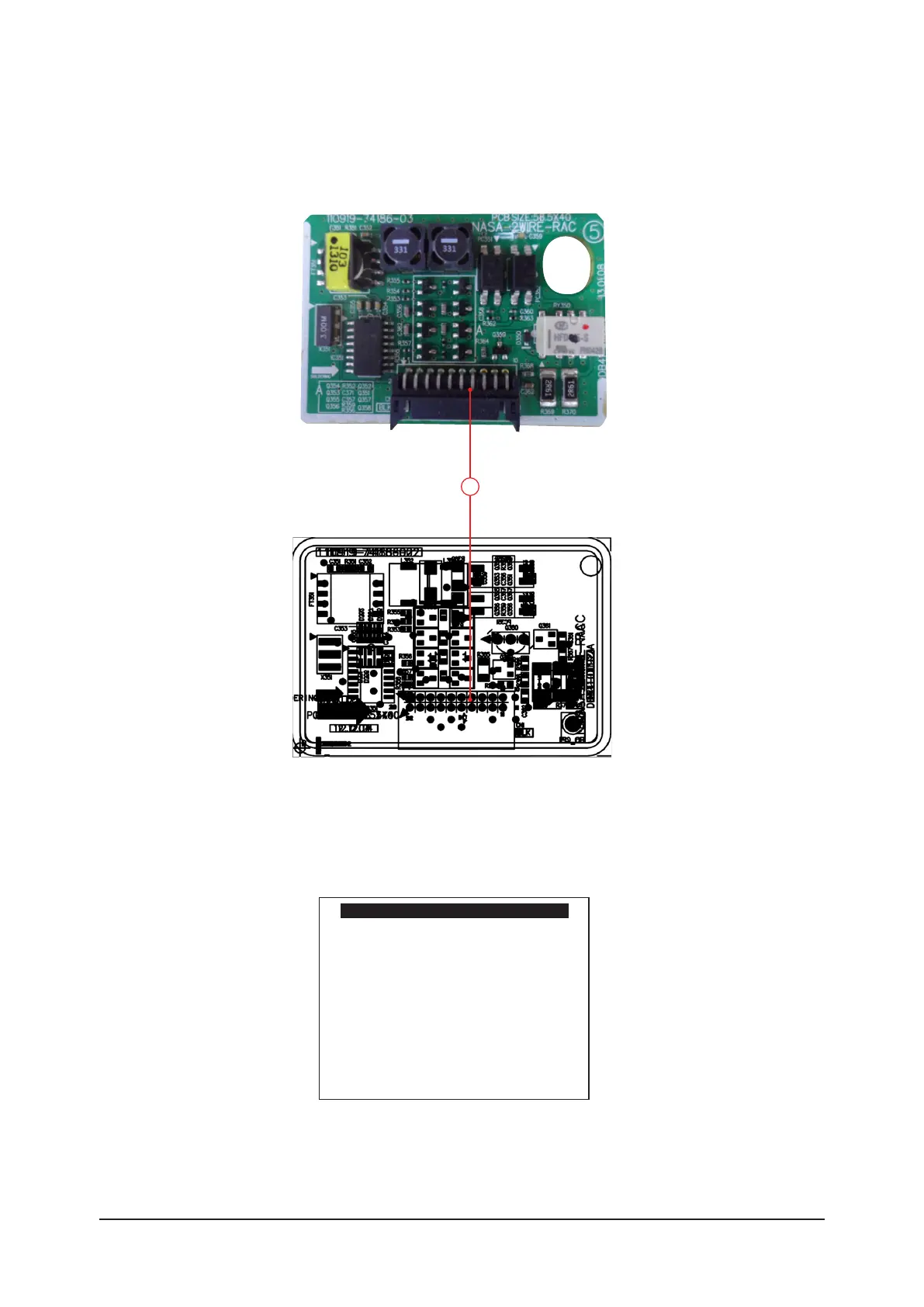

Sub PCB
1
①
#1,#2,#19,#20:COMM. SIGNAL
#3,#18:EXTERNAL CONTROL
#4,#17:COMP CHECK
#5,#16:ERROR CHECK
#6:VCC(DC5V
)
#7,#14:GND
#8,#13,#15:DC12V
#9~#12:COMM. SIGNAL
CN
1-
2WIRES C
OMM.
78
80
Table of Contents
Table of Contents
2
Precautions
4
Precautions for the Service
4
Precautions Related to Static Electricity and PL
4
Precautions Related to Product Safety
5
Other Precautions
5
Product Specifications
6
The Feature of Product
6
Product Specifications
7
Accessories
9
Disassembly and Reassembly
10
Indoor Unit
11
Outdoor Unit
20
Troubleshooting
34
Troubleshooting for Outdoor Unit
44
Troubleshooting by Symptoms
46
Indoor Temperature Sensor (Open/Short)
46
Indoor Heat Exchanger Temperature Sensor (Open/Short)
47
Indoor FAN Error
48
Communication Error after Finishing Tracking
49
Indoor Unit Float Sensor Error
50
EEPROM Circuit Failure
51
Outdoor Unit Is Not Powered on
53
Communication Error
54
Outdoor Temperature Sensor Error
55
Outdoor Coil Temperature Sensor Error
57
Outdoor Discharge Temperature Sensor Error
59
Outdoor Discharge over Temperature Error
61
Outdoor Fan Motor Error
62
Compressor Starting Error
63
Compressor Wire Missing Error/Rotation Error
64
Over Current) Error
65
Dc_Link Voltage Sensor Error
66
Dc_Link Voltage Under/Over Error, over Voltage Protection Error/Pfc over Load
67
Current Sensor Error/Input Current Sensor Error
69
Heatsink Sensor Error/Heatsink over Heat
70
Comp Vlimit Error/Comp Current Limit Error
71
EEPROM Error/Otp Error
72
AC Zero Cross Signal Error
73
Operation Condition Secession Error
74
Capacity Miss Match Error
75
Gas Leak Error
76
PCB Diagram
77
Indoor Unit
77
Outdoor Unit
80
Samsung Electronics
90
