Samsung AC MN KH/EU Series Service Manual

5-4 Samsung Electronics
5-2 Outdoor Unit

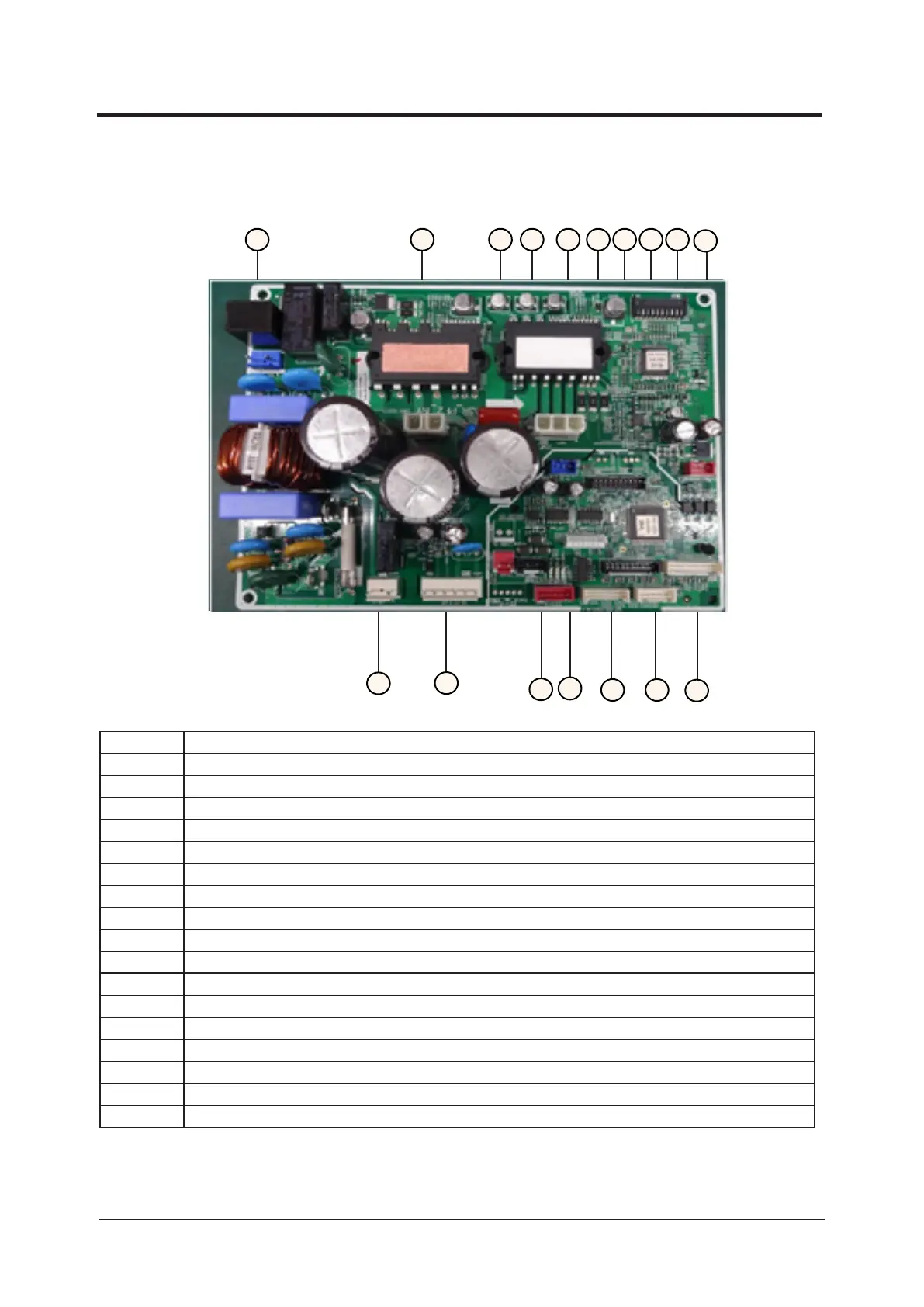

5-2-1 MAIN PCB
■ AC026MXADKH / AC035MXADKH
NO Description
1 SMPS POWER: YW396-03AV BLU
2 4WAY:YW396-03AV WHT
3 REACTOR:DBT081-2P WHT
4 BLDC FAN:YW396-06V WHT
5 COMM:YW396-02V RED
6 SUB PBA POWER:SMW200-05P BLK
7 EEV1:SMW250-05 RED
8 COMP:DBT061-3P WHT
9 SMPS: SMW250-03 BLU
10 EEPROM:B7P-MQ WHT
11 TEMP SENSOR: SMW200-08P WHT
12 MAIN DOWNLOAD:YDW200-20 BLK
13 SUB PBA: SMW200-10P BLK
14 DRED:SMW250-05 WHT
15 INV DOWNDOWN: YDAW200-20TR BLK
16 SUB PBA: SMW200-10P WHT
17 ENABLE CGND: SMW250-03 RED
1 3 5 6 8 10 12 13 15
2
4
7
9
11 14
16
17
