English
Installation

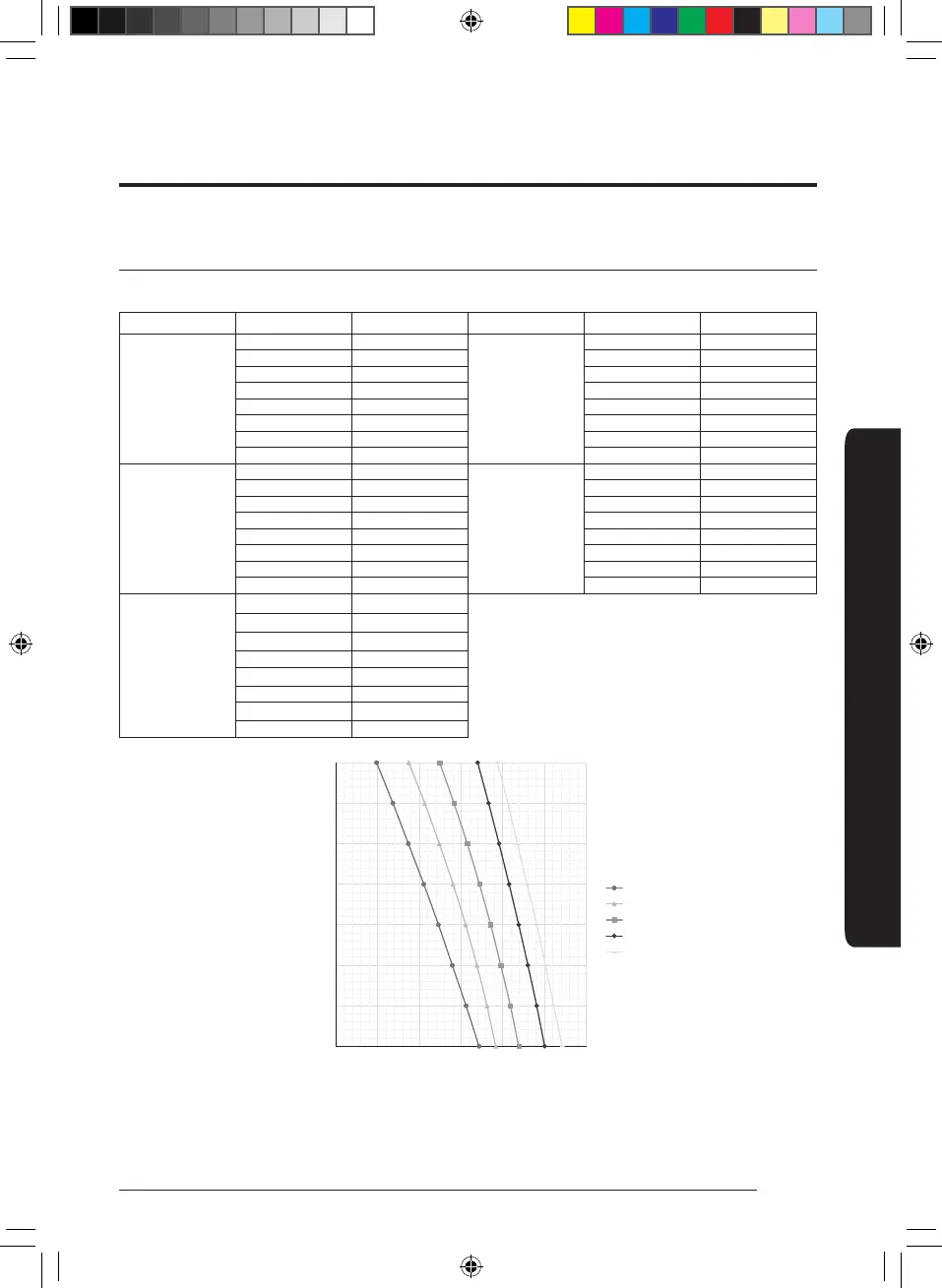

AC018BNZDCH
HP : 1/3 Default motor taps : High/Mid/Low = 4/3/2.
Motor Tap P(inwg) CFM Motor Tap P(inwg) CFM
1
0.1 543
4
0.1 700
0.2 512 0.2 681
0.3 479 0.3 660
0.4 446 0.4 638
0.5 411 0.5 615
0.6 374 0.6 591
0.7 337 0.7 566
0.8 298 0.8 540
2
0.1 583
5
0.1 742
0.2 562 0.2 722
0.3 538 0.3 702
0.4 511 0.4 681
0.5 481 0.5 658
0.6 448 0.6 635
0.7 413 0.7 612
0.8 375 0.8 587
3
0.1 638
0.2 618
0.3 595
0.4 571
0.5 544
0.6 515
0.7 483
0.8 449
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
200 300 400 500 600 700 800
Q (CFM)
1
2
3
4
5
P (inwg)
