English

Installation

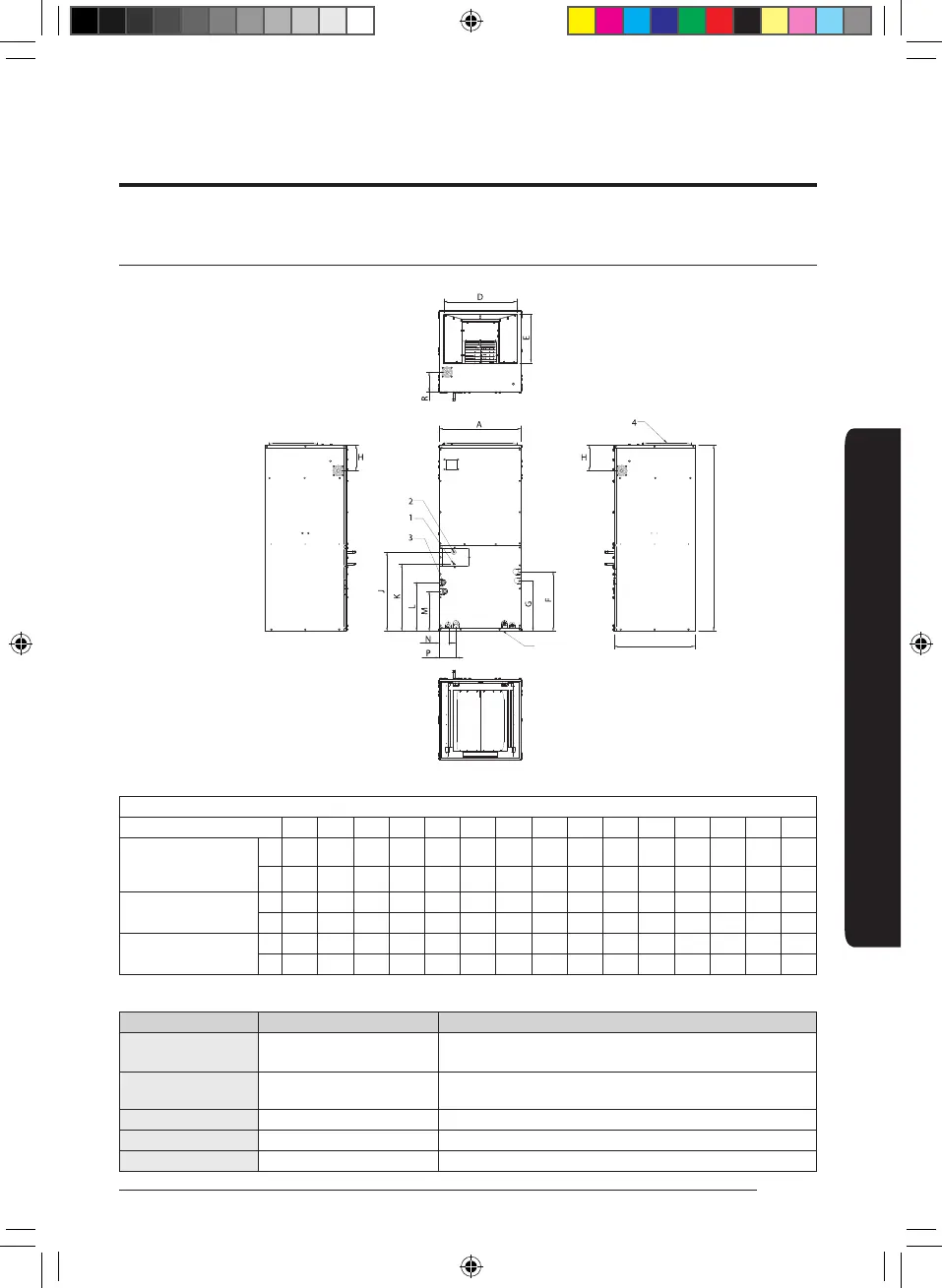

Dimensions

BOTTOMs

TOP

LEFT SIDE RIGHT SIDEFRONT

DIMENSIONAL DATA MULTI-POSITION AIR HANDLER

MODEL A B C D E F G H J K L M N P R

AC012BNZDCH

AC018BNZDCH

AC024BNZDCH

inch 17.50 43.00 21.00 15.50 12.50 13.50 11.00 6.75 16.75 14.00 11.00 8.50 2.00 4.00 2.00

mm 444.50

1092.20

533.40 393.70 317.50 342.90 279.40 171.45 425.45 355.60 279.40 215.90 50.80 101.60 50.80

AC030BNZDCH

AC036BNZDCH

inch 21.00 48.00 21.00 19.00 12.50 13.38 13.00 6.75 20.00 17.00 12.75 10.30 2.30 4.35 2.50

mm 533.40 1219.20 533.40 482.60 317.50 339.73 330.20 171.45 508.00 431.80 323.85 261.62 58.42 110.49 63.50

AC042BNZDCH

AC048BNZDCH

inch 24.50 58.75 21.75 19.50 16.25 19.75 17.25 6.75 26.00 23.00 16.75 14.35 2.30 4.35 2.00

mm 622.30 1492.25 552.45 495.30 412.75 501.65 438.15 171.45 660.40 584.20 425.45 364.49 58.42 110.49 50.80

NOTE: ALL DIMENSION ARE IN INCHES AND ARE APPROXIMATE. ALL DIMENSIONS ARE ROUNDED

No. Name Description

1 





2 Gas pipe connection





3 - 

4 - -

5 - -

DB68-11271A-02_IM_CAC Universal AHU Indoor_AA_EN_.indd 7 2022-09-15 오전 9:53:15
