Disassembly and Reassembly
3-42 Samsung Electronics

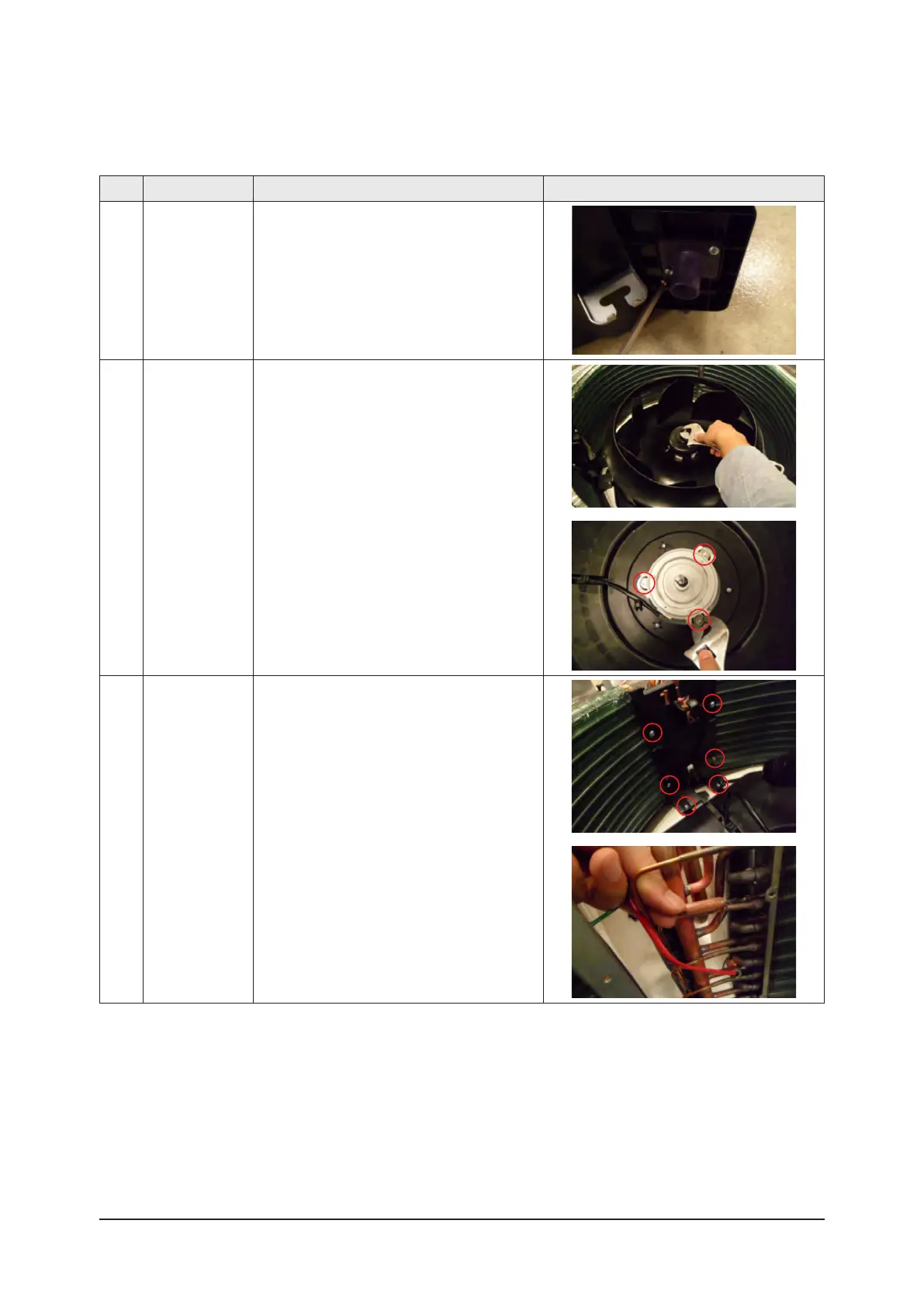

No. Parts Procedure Remark
4 Drain Pump &
Hose
2) Remove 2ea of screws and separate the
Drain Hose that is on the side lower part
of Indoor Unit.
(Use +Screw Driver)
5 Fan & Motor 1)
Remove the hex nut which is fixed to top of
Fan and separate the Fan from the Motor.
(Use Monkey Spanner)
2) Remove the 3 hex nuts which is fixed to
Motor and separate the Motor from the
Indoor Unit.
(Use Monkey Spanner)
6 Temperature
Sensor
1) Remove 6ea of screws which are fixed to
Evaporator and separate the Partition.
2) Separates the Temperature Sensor which
is fixed to Evaporator Pipe with the fixing
clip together by the hand.
To Next Page
