Disassembly and Reassembly
Samsung Electronics 3-43
No. Parts Procedure Remark

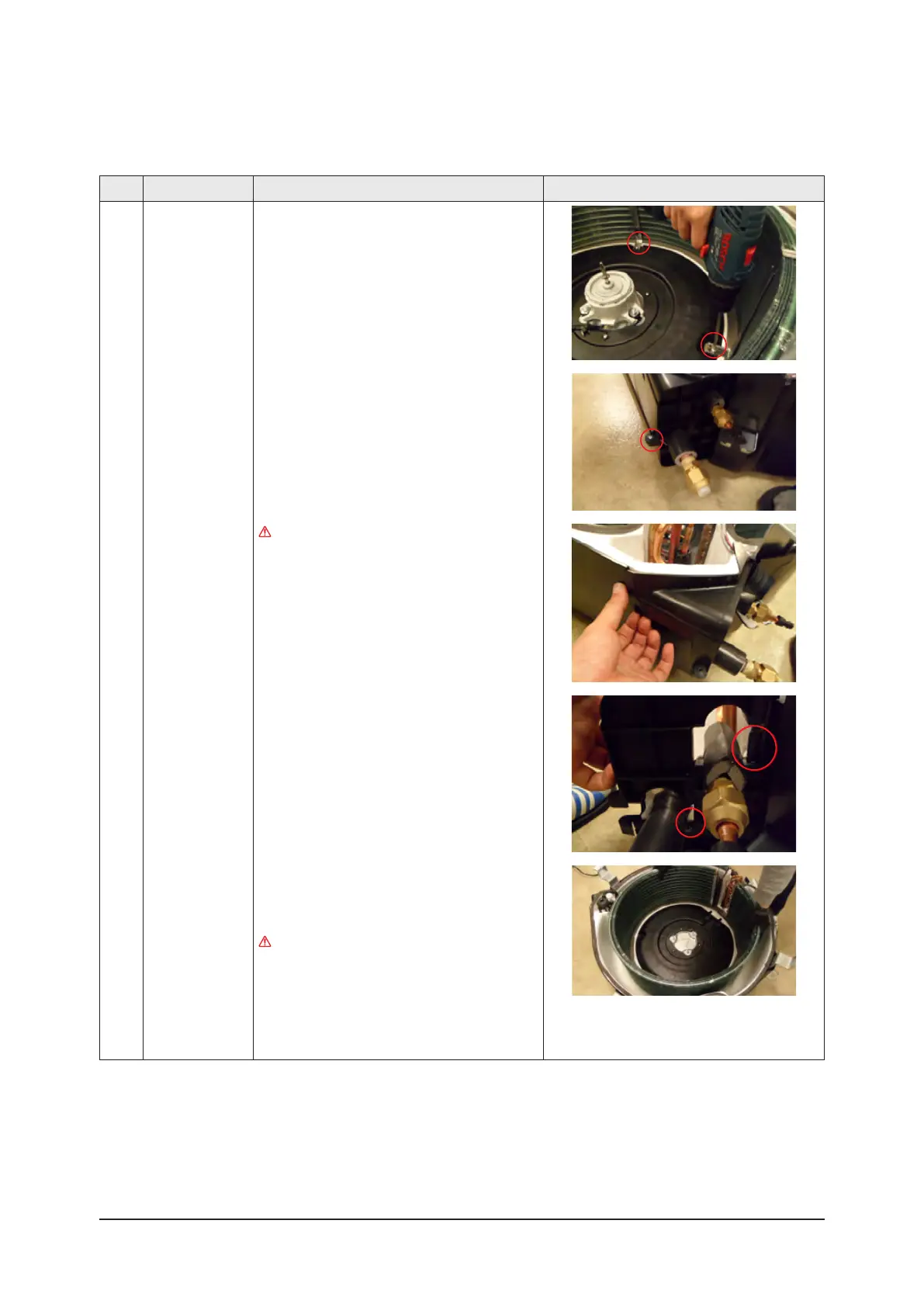

7 Evaporator
1) Remove 2ea of screws which are fixed to
Indoor Unit and separate the Evaporator
fixing bracket.
(Use +Screw Driver)
2) Remove a screw which is fixed to Indoor
Unit and pull the hook and then separate
the Drain Cover.
(Use +Screw Driver)
When assemble, be careful with the
interference structure of piping
projecting p
3) Separate the Evaporator from the Indoor
Unit.
If you remove the Evaporator with bare
hands, it may injure your hands, gloves
must be worn.
To Next Page
