Disassembly and Reassembly
3-44 Samsung Electronics
No Parts Procedure Remark
1 Motor & Blower
(Continues)

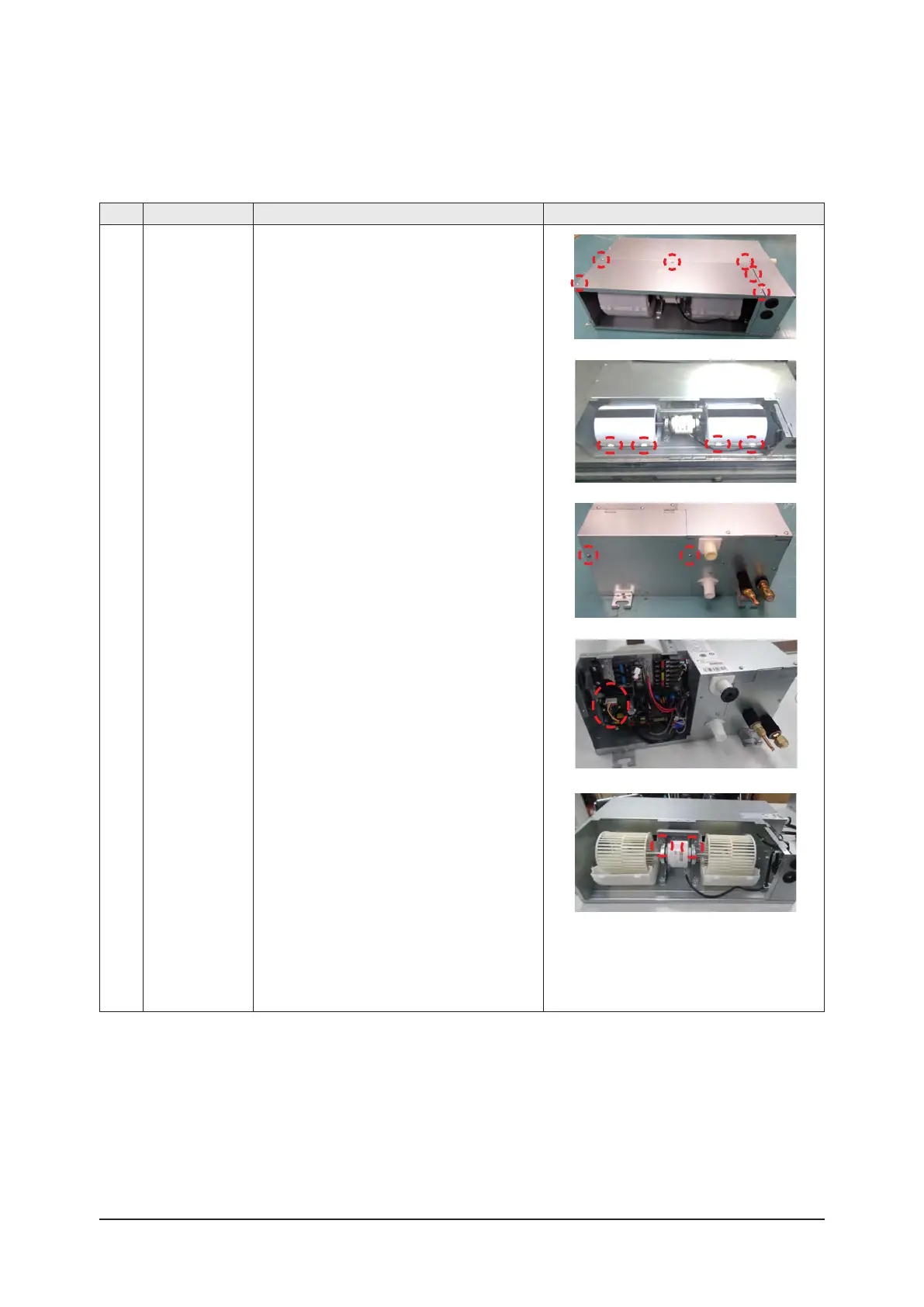

1) Disassemble the Cabinet Top Motor.
- Unscrew 6 screws
2) Disassemble the Cover Blower Upper with
pushing its hook.
3) Disassemble the Cover Control.
- Unscrew 2 screws
4) Disassemble Motor Wires
connected to the inside of PCB.
5) Disassemble the band Motor for fixing the
Motor.
- Unscrew 2 screws
■ Home ducct : AC***BNLDCH
To Next Page
