Installation
21!,,/+&10

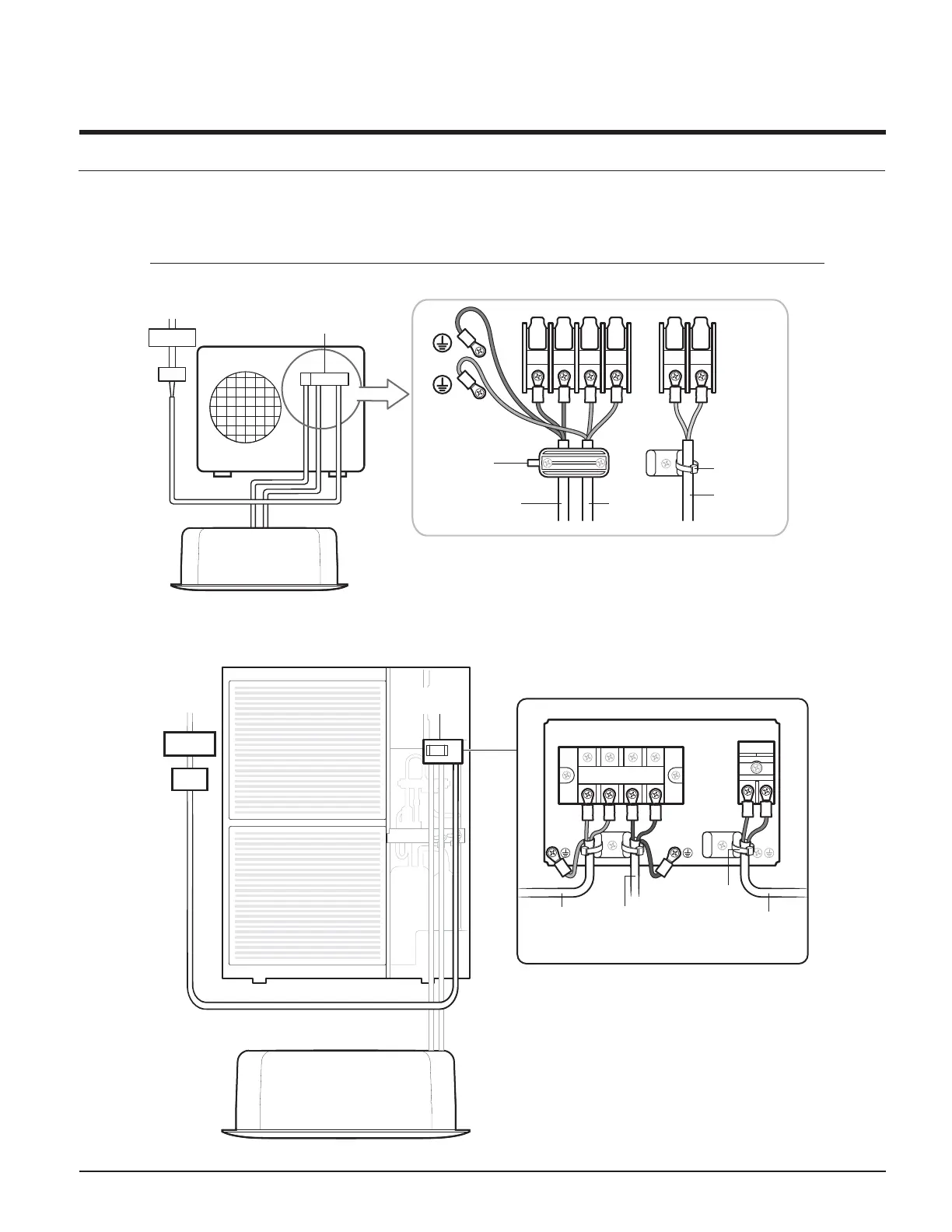

Connecting the main power cable
When using ELB for AC024/030/036/042/048BXADCH (1-phase)
Cable tie
MCCB
Communication cable
Indoor Unit
Outdoor to indoor
power cable
ELB
Electrical
component box
Main power
cable
The appearance of the unit may be different
from the picture depending on the model.
Power supply
1(L)
2(N) L N
F1
F2
When using ELB for AC018BXADCH (1-phase)
F2
Power Supply
The appearance of the unit may be different from the picture
depending on the model.
Cable tie
MCCB
Outdoor to indoor
power cable
1(L)
ELB
Cable clamp
2(N)
Indoor Unit
Main power
cable
L
F1
Electrical
component box
Communication
cable
N
