Samsung AC052MNCDKH - Page 23

3-12 Samsung Electronics
No Parts Procedure Remark

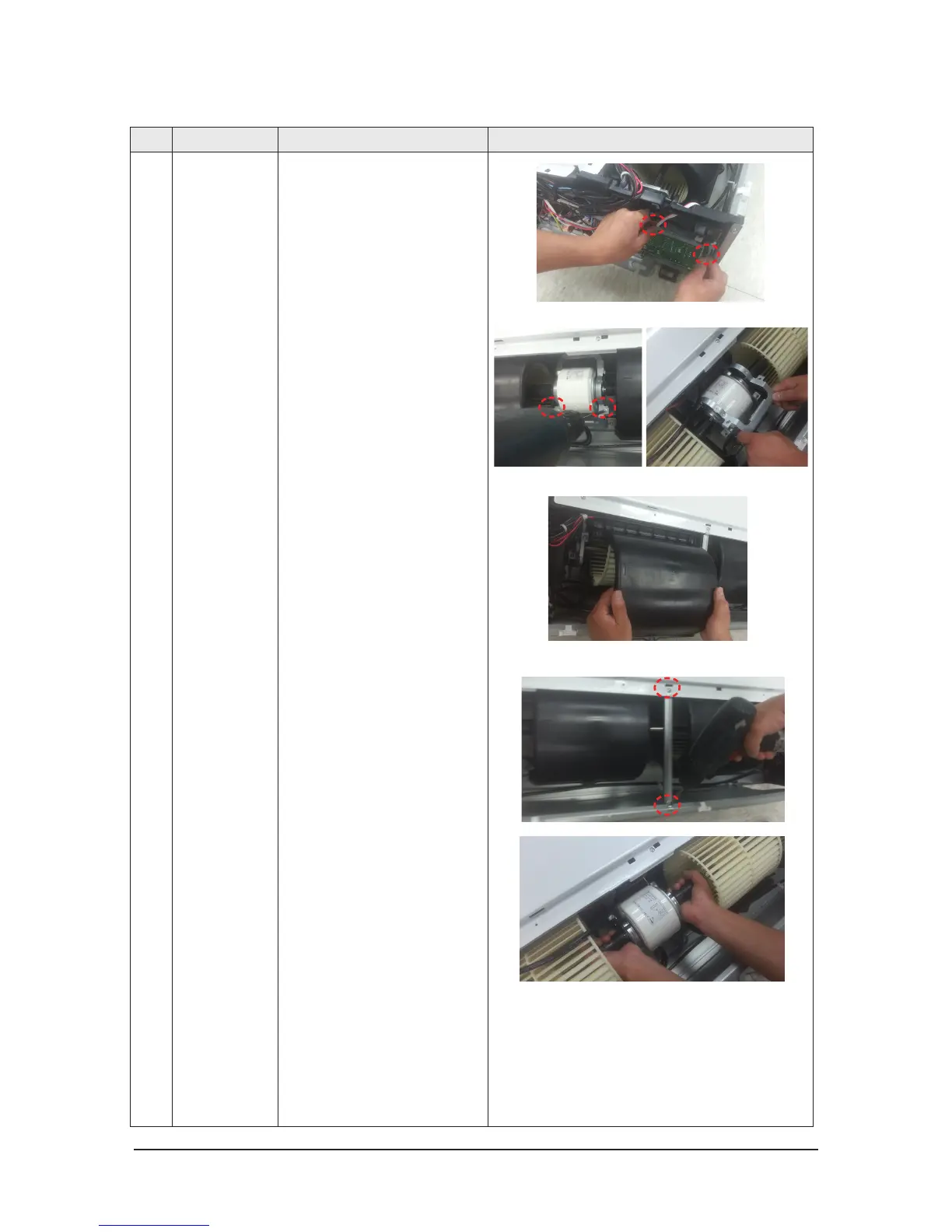

2 Fan & Motor 1) Disconnect 2 wires of Motor.
2) Detach Holder Motor by removing
2 screws.
3) Detach the Upper case of Fan.
( 4EA )
4) Detach Bracket Grille by removing
2 Screws.
Samsung Electronics 3-3
No Parts Procedure Remark
2 Fan & Motor
1) Disconnect 2 wires of Motor
2) Detach Holder Motor by
removing 2 screws
3) Detach the Upper case of Fan
( AC036HBCDBD/AC036JBCDBD/
AC040JBCDBD : 3EA
AC060HBCDBD/ AC060JBCDBD
: 4EA )
4) Detach Bracket Grille by
removing 2 Screws.
( Bracket Grille
AC036JBCDBD/AC036JBCDBD/
AC040JBCDBD : 1EA
AC060HBCDBD/ AC060JBCDBD
: 2EA )
Samsung Electronics 3-3
No Parts Procedure Remark
2 Fan & Motor
1) Disconnect 2 wires of Motor
2) Detach Holder Motor by
removing 2 screws
3) Detach the Upper case of Fan
( AC036HBCDBD/AC036JBCDBD/
AC040JBCDBD : 3EA
AC060HBCDBD/ AC060JBCDBD
: 4EA )
4) Detach Bracket Grille by
removing 2 Screws.
( Bracket Grille
AC036JBCDBD/AC036JBCDBD/
AC040JBCDBD : 1EA
AC060HBCDBD/ AC060JBCDBD
: 2EA )
Samsung Electronics 3-3
No Parts Procedure Remark
2 Fan & Motor
1) Disconnect 2 wires of Motor
2) Detach Holder Motor by
removing 2 screws
3) Detach the Upper case of Fan
( AC036HBCDBD/AC036JBCDBD/
AC040JBCDBD : 3EA
AC060HBCDBD/ AC060JBCDBD
: 4EA )
4) Detach Bracket Grille by
removing 2 Screws.
( Bracket Grille
AC036JBCDBD/AC036JBCDBD/
AC040JBCDBD : 1EA
AC060HBCDBD/ AC060JBCDBD
: 2EA )
Samsung Electronics 3-3
No Parts Procedure Remark
2 Fan & Motor
1) Disconnect 2 wires of Motor
2) Detach Holder Motor by
removing 2 screws
3) Detach the Upper case of Fan
( AC036HBCDBD/AC036JBCDBD/
AC040JBCDBD : 3EA
AC060HBCDBD/ AC060JBCDBD
: 4EA )
4) Detach Bracket Grille by
removing 2 Screws.
( Bracket Grille
AC036JBCDBD/AC036JBCDBD/
AC040JBCDBD : 1EA
AC060HBCDBD/ AC060JBCDBD
: 2EA )
Samsung Electronics 3-3
No Parts Procedure Remark
2 Fan & Motor
1) Disconnect 2 wires of Motor
2) Detach Holder Motor by
removing 2 screws
3) Detach the Upper case of Fan
( AC036HBCDBD/AC036JBCDBD/
AC040JBCDBD : 3EA
AC060HBCDBD/ AC060JBCDBD
: 4EA )
4) Detach Bracket Grille by
removing 2 Screws.
( Bracket Grille
AC036JBCDBD/AC036JBCDBD/
AC040JBCDBD : 1EA
AC060HBCDBD/ AC060JBCDBD
: 2EA )
