Samsung Electronics 3-13

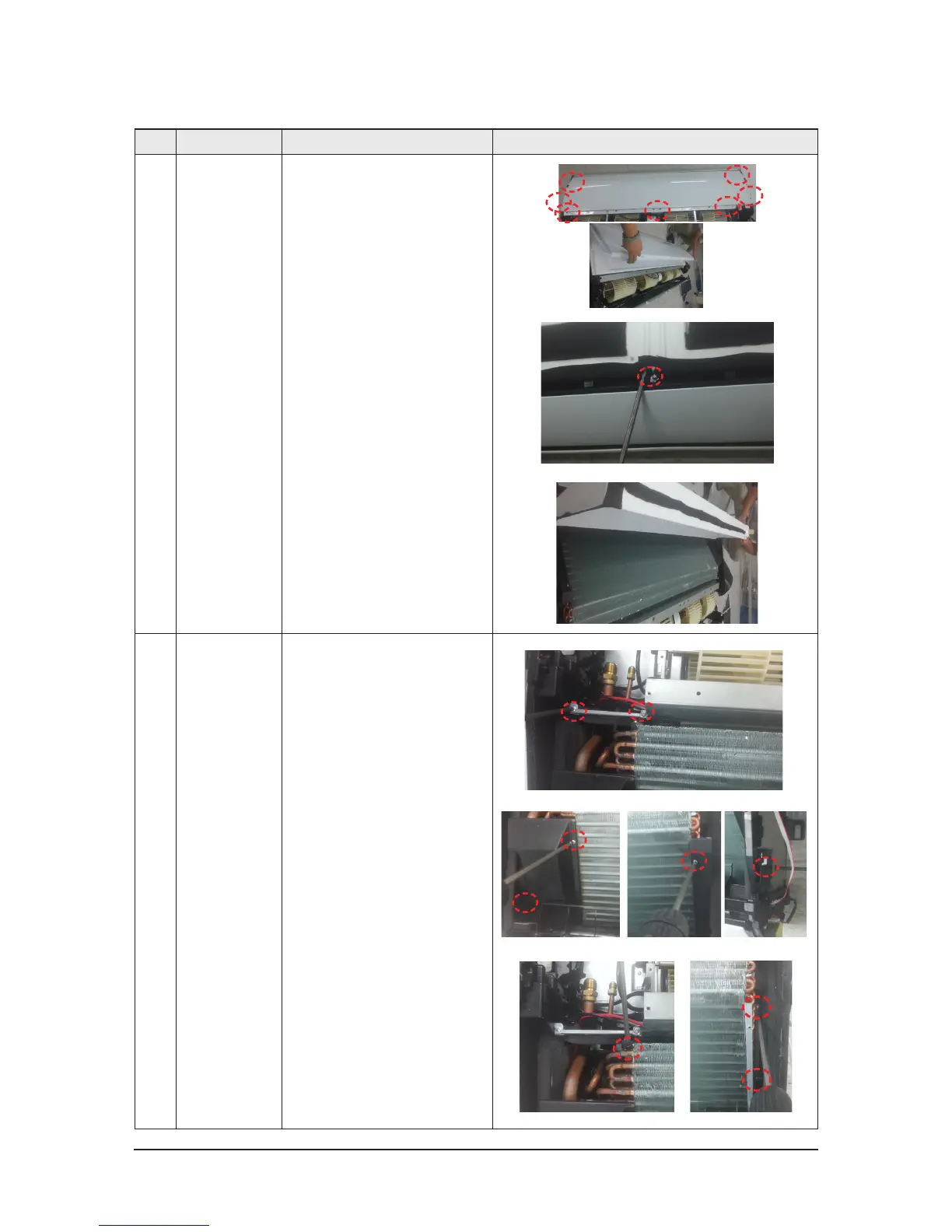

No Parts Procedure Remark
3 Drain Pan 1) Detach the Cabinet Front by
removing 7 screws.
2) Remove 1 screw in the middle of
drain pan.
3) Detach the Drian pan.
Be careful that there might be some
water left in the drain pan when you
remove the drain pan.
4 Evaporator 1) Detache the Cover Pipe by removing
2 screws.
2) Detache the Cover Evap LF/RH by
removing 4 screws.
3) Detach the Evaporator assembly by
removing 3 screws.
3-4 Samsung Electronics
No Parts Procedure Remark
3 Drain Pan
1)Detach the Cabinet Front by
removing 7 screws.
2) Remove 1 screw in the middle
of drain pan
3) Detach the Drian pan.
Be careful that there might be
some water left in the drain pan
when you remove the drain pan.
4 Evaporator
1)Detache the Cover Pipe by
removing 2 screws.
2)Detache the Cover Evap LF/RH
by removing 4 screws.

when installer remove drain pan, the water in drian pan can be poured.
3-4 Samsung Electronics
No Parts Procedure Remark
3 Drain Pan
1)Detach the Cabinet Front by
removing 7 screws.
2) Remove 1 screw in the middle
of drain pan
3) Detach the Drian pan.
Be careful that there might be
some water left in the drain pan
when you remove the drain pan.
4 Evaporator
1)Detache the Cover Pipe by
removing 2 screws.
2)Detache the Cover Evap LF/RH
by removing 4 screws.

when installer remove drain pan, the water in drian pan can be poured.
3-4 Samsung Electronics
No Parts Procedure Remark
3 Drain Pan
1)Detach the Cabinet Front by
removing 7 screws.
2) Remove 1 screw in the middle
of drain pan
3) Detach the Drian pan.
Be careful that there might be
some water left in the drain pan
when you remove the drain pan.
4 Evaporator
1)Detache the Cover Pipe by
removing 2 screws.
2)Detache the Cover Evap LF/RH
by removing 4 screws.

when installer remove drain pan, the water in drian pan can be poured.
3-4 Samsung Electronics
No Parts Procedure Remark
3 Drain Pan
1)Detach the Cabinet Front by
removing 7 screws.
2) Remove 1 screw in the middle
of drain pan
3) Detach the Drian pan.
Be careful that there might be
some water left in the drain pan
when you remove the drain pan.
4 Evaporator
1)Detache the Cover Pipe by
removing 2 screws.
2)Detache the Cover Evap LF/RH
by removing 4 screws.

when installer remove drain pan, the water in drian pan can be poured.
3-4 Samsung Electronics
No Parts Procedure Remark
3 Drain Pan
1)Detach the Cabinet Front by
removing 7 screws.
2) Remove 1 screw in the middle
of drain pan
3) Detach the Drian pan.
Be careful that there might be
some water left in the drain pan
when you remove the drain pan.
4 Evaporator
1)Detache the Cover Pipe by
removing 2 screws.
2)Detache the Cover Evap LF/RH
by removing 4 screws.

when installer remove drain pan, the water in drian pan can be poured.
Samsung Electronics 3-5
No Parts Procedure Remark
3)Detach the Evaporator
assembly by removing 3 screws.
5 Stepping
Motor
1)Detach the Connector.
2)Detache the Stepping Motor
by removing 2 screws.
6 Holder Blade
1) Remove 4 screws at both side
of the Holder blade.
