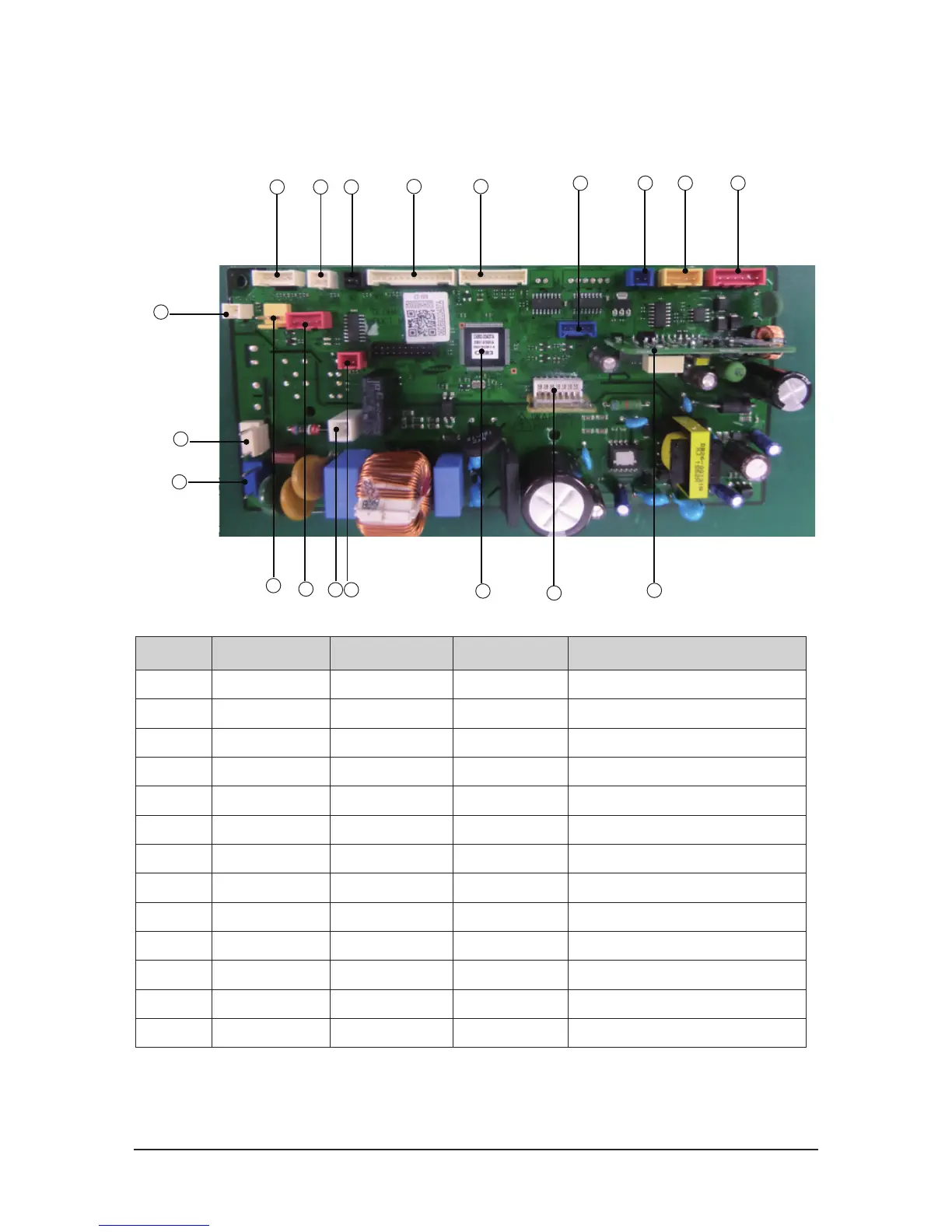

Samsung AC100MNCDKH - Main Pcb

5-2 Samsung Electronics
1
2
4
5
6
8
3
10
121314
11
1516
171819
7
9
No Part Code Local Function Description
1 3711-003942 CN140 SMW200-02(WHT) DRAIN PUMP
2 3711-000203 CN906 YM396-03AV(WHT) BLDC PBA POWER
3 3711-003404 CN101 YW396-03AV(BLU) GND
4 3711-000179 CN701 YW396-02V(YEL) FLOAT-S/W
5 3711-000939 CN81 SMW250-04(RED) VEMTILATOR
6 3711-000796 CN83 SMW250-02(RED) ON/OFF EXTERNAL SIGNAL
7 3711-000744 CN1 TDW236-01(WHT) ERROR CHECK/COMP CHECK
8 3711-002001 CN301 YDW200-20(BLK) SPI MODULE
9 3711-007817 CN201 B7P-MQ(WHT) COM1/COM2
10 3711-004773 CN311 BMW200-12(WHT) DOWNLOAD
11 3711-005097 CN601 SMW200-05(BLU) POWER INPUT
12 3711-001037 CN302 SMW250-06(RED) DISPLAY
13 3711-000941 CN801 SMW250-04(YEL) FUSE BLOCK
MAIN PCB
■ AC100MNCDKH / AC120MNCDKH / AC140MNCDKH
