Samsung Electronics 4-1

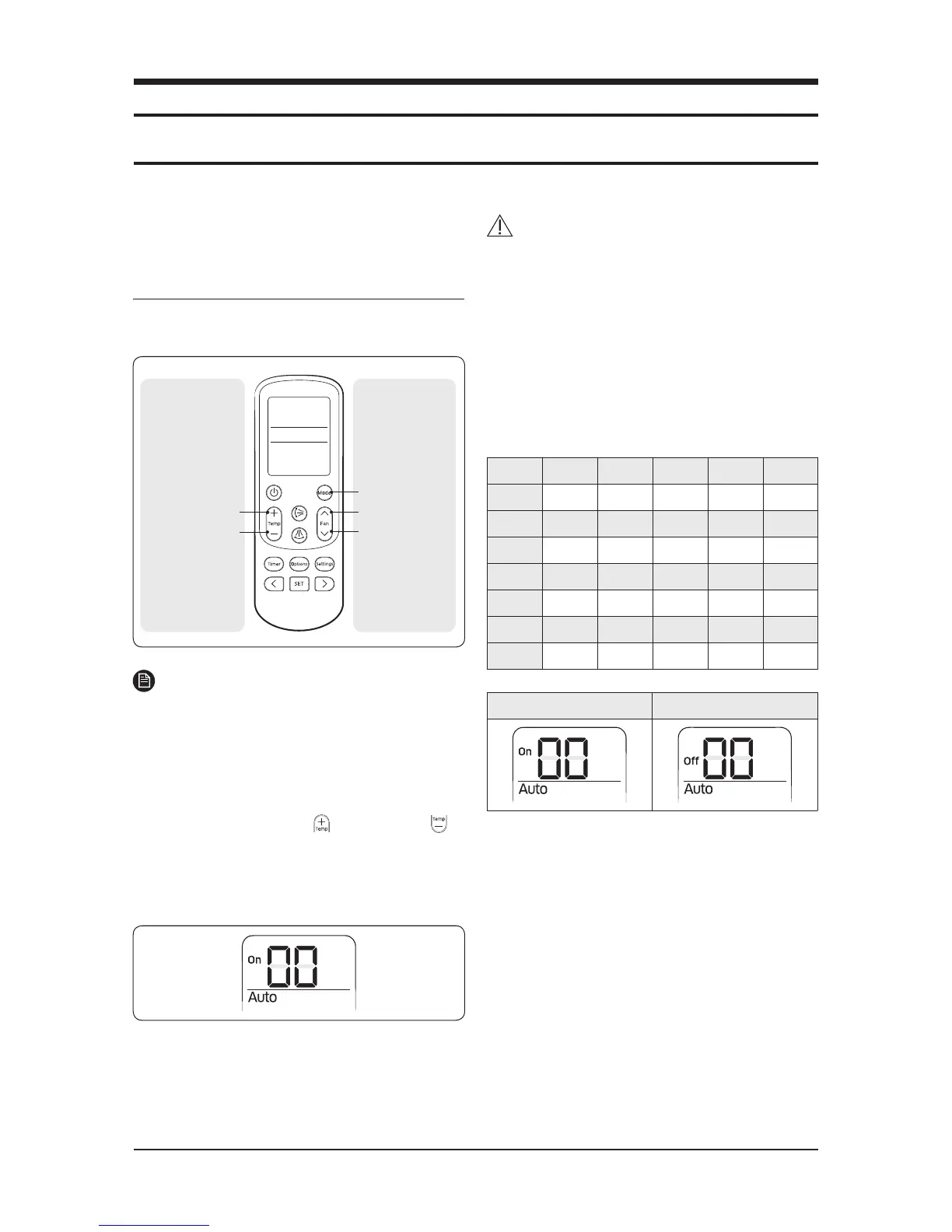

4-1 Setting Option Setup Method
You cannot set both of the indoor unit addresses and
the installation options in a batch: set both of them
respectively.
4-1-1 Common steps for setting the
addresses and options
MR-EC00 and MR-EH00 remote controls
Low Temp button
High Temp button
Mode button
Low Fan button
High Fan button
Setting the
option values
Entering the mode
for setting the
options
NOTE
• The remote control display and buttons may vary
depending on the model.
1 Enter the mode for setting the options:
a Remove the batteries from the remote control, and
then insert them again.
b While holding down the
(High Temp) and
(Low Temp) buttons simultaneously, insert the
batteries into the remote control.
c Make sure that you are entered to the mode for
setting the options:
2 Set the option values.
CAUTION
• The total number of available options are 24: SEG1 to
SEG24.
• Because SEG1, SEG7, SEG13, and SEG19 are the page
options used by the previous remote control models,
the modes to set values for these options are skipped
automatically.
• Set a 2-digit value for each option pair in the following
order: SEG2 and SEG3 � SEG4 and SEG5 � SEG6 and SEG8 �
SEG9 and SEG10 � SEG11 and SEG12 � SEG14 and SEG15 �
SEG16 and SEG17 � SEG18 and SEG20 � SEG21 and SEG22
� SEG23 and SEG24
SEG1 SEG2 SEG3 SEG4 SEG5 SEG6
0 X X X X X
SEG7 SEG8 SEG9 SEG10 SEG11 SEG12
1 X X X X X
SEG13 SEG14 SEG15 SEG16 SEG17 SEG18
2 X X X X X
SEG19 SEG20 SEG21 SEG22 SEG23 SEG24
3 X X X X X
On (SEG1 to SEG12) Off (SEG13 to SEG24)
4. Troubleshooting
