3-19

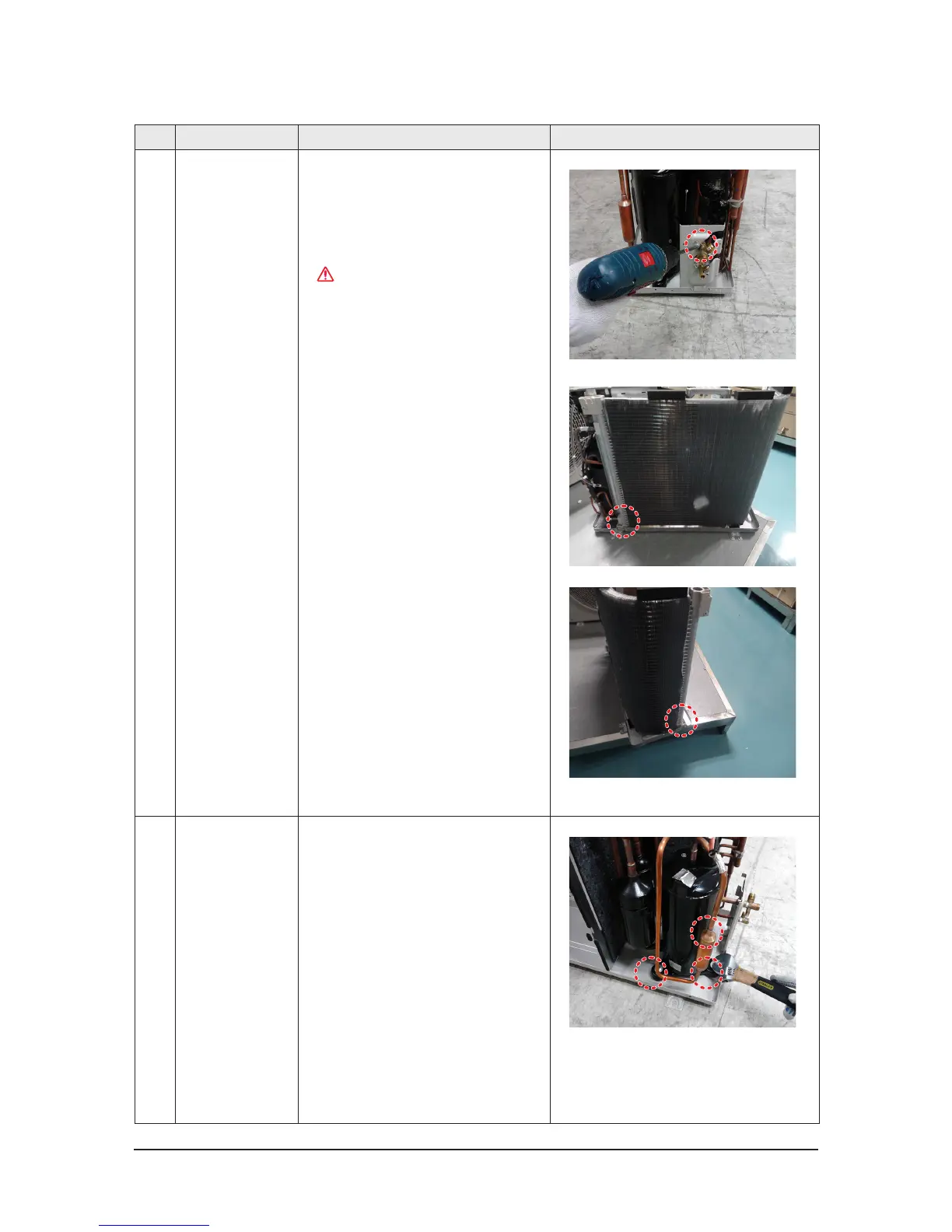

No Parts Procedure Remark
4 Heat exchanger 1) Release the refrigerant at first
2) Loosen fixing screw on both side..
3) Disassemble the pipes in both inlet and
outlet with welding torch.
4) Detach the heat exchanger.
When removing the compressor,
Heat Exchanger, and Pipe, purge the
Coolant inside the Compressor complete-
ly and remove the pipe with a welding
flame.
5 Compressor
1)Loosen the 3 bolts at the bottom of com-
pressor.
To Next Page
