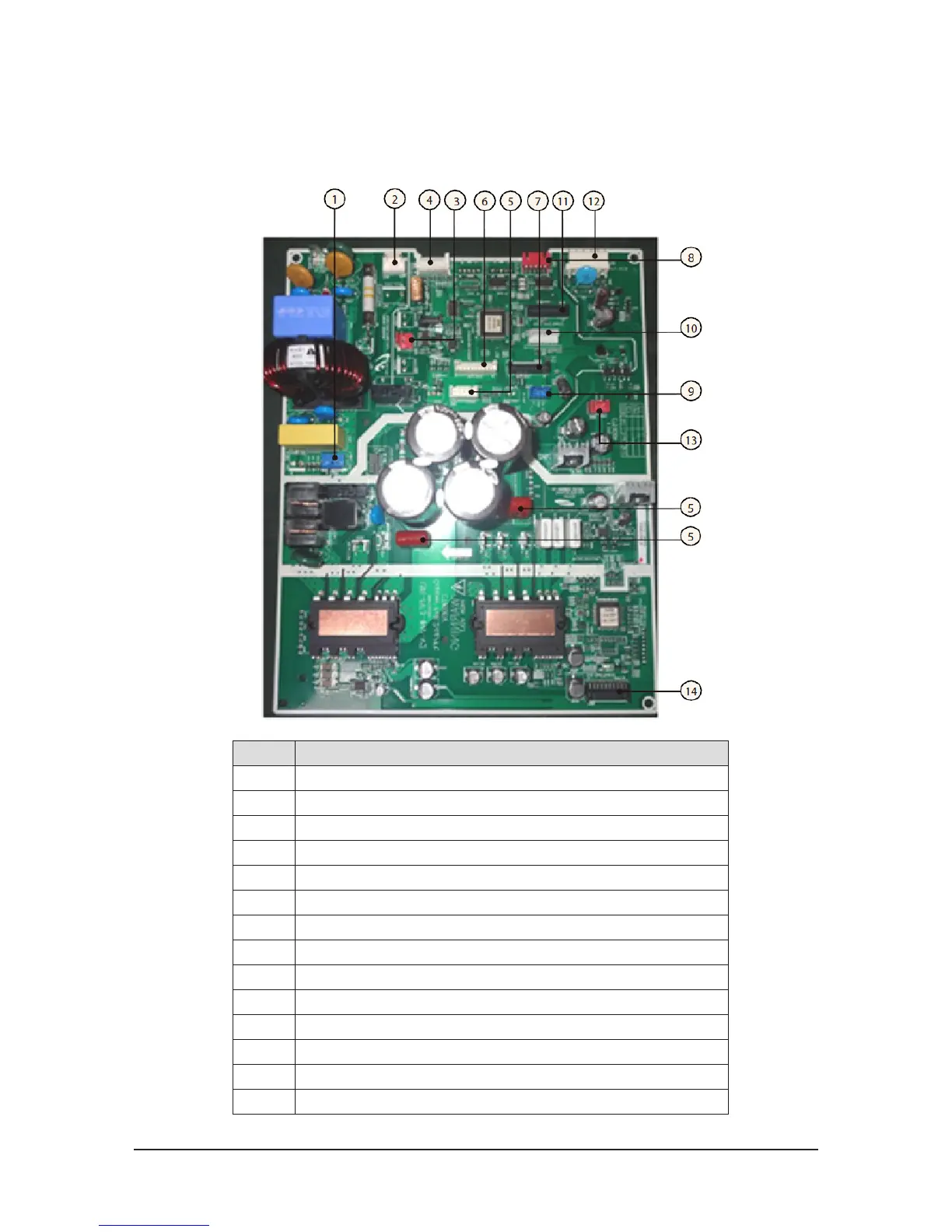

MAIN PCB
AC071MXADKH
No. Description
1 SMPS POWER :YW 396-03AV BLU
2 4WAY :YW 396-03AV WHT
3 COMM :YW 396-02V RED
4 TEMP SENSOR :SMW200-08P WHT
5 DRED :SMW250-05 WHT
6 SUB PBA :SMW200-10P WHT
7 SUB PBA :SMW200-10P BLK
8 EEV1 :SMW250-05 RED
9 SMPS :SMW250-03 BLU
10 EEPROM :B7P-MQ WHT
11 MAIN DOWNLOAD :YDW200-20 BLK
12 BLDC FAN MOTOR :YAW396-06V WHT
13 ENABLE CGND :SMW250-03 RED
14 INV DOWNLOAD :YDAW200-20TR BLK
