Samsung AC100RN4PKG Installation Manual

13English
Installation Procedure

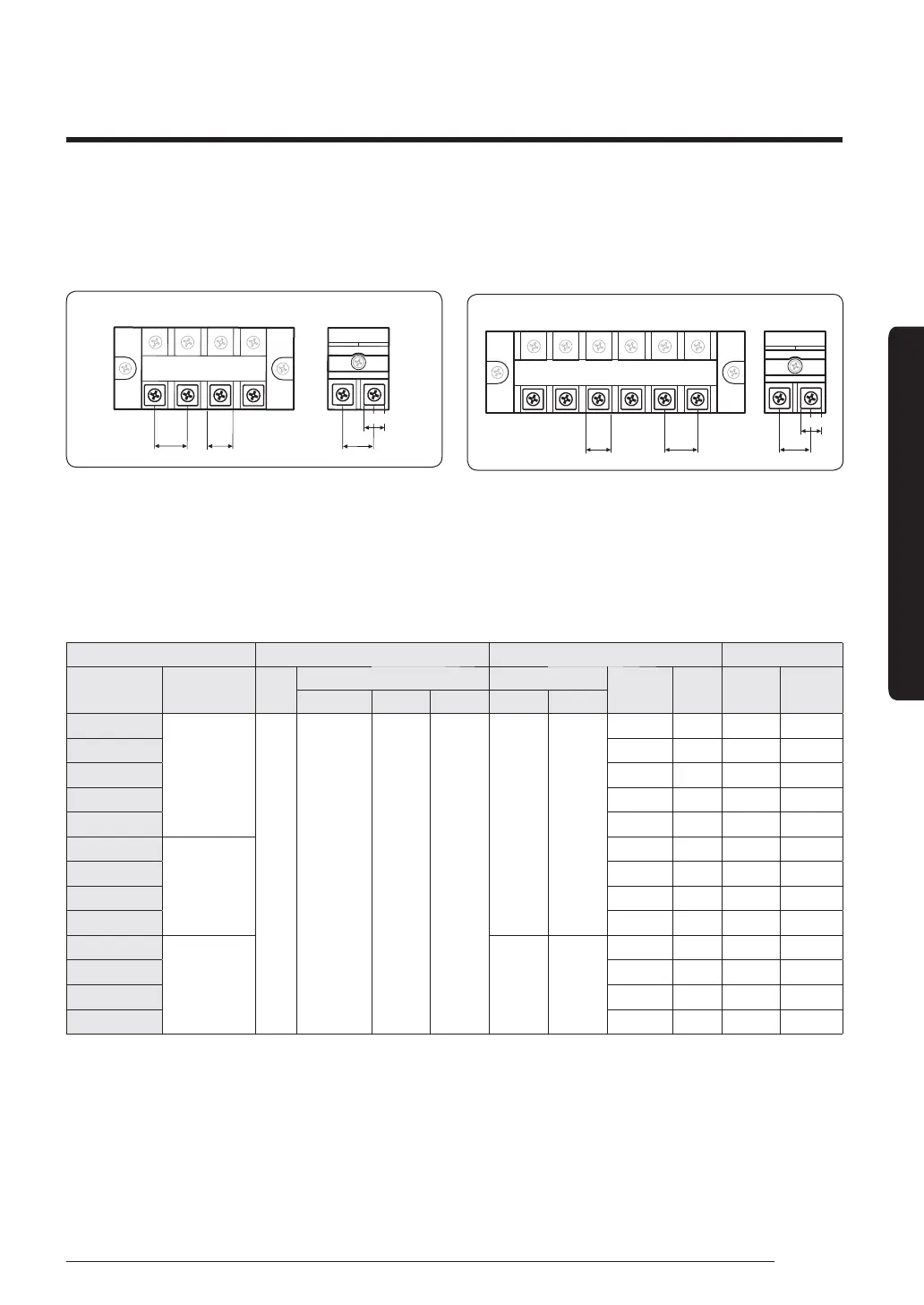

Main power terminal block specifications
• 1-phase terminal block specifications
(Unit: mm)
AC100/120/140RXADKG
1(L) 2(N)
F1 F2
LN
16.3 12 11.4
10.1
• 3-phase terminal block specifications
(Unit: mm)
AC100/120/140RXADNG
1(L) 2(N) L1(R) L2(S) L3(T) N
9.8 14.2 11.4
F1 F2
10.1
Main power cable specifications
The power cable is not supplied with air conditioner.
• Select the power supply cable in accordance with relevant local and national regulations.
• Wire size must comply with the applicable local and national code.
• Specifications for local wiring power cord and branch wiring are in compliance with local cord.
Single phase
Model Outdoor unit Input current (A) Power supply
Indoor unit Outdoor unit Hz
Voltage range (V) Outdoor unit
Indoor unit Total MCA (A) MFA (A)
Rated Min. Max. Cooling Heating
AC100RN4DKG
AC100RXADKG
50 220 to 240 198 264
24.0 24.0
1.0 25.0 25.0 30.0
AC100RN4PKG
1.5 25.5 25.5 30.0
AC100RNMDKG
2.5 26.5 26.5 30.0
AC100RNCDKG
2.5 26.5 26.5 30.0
AC100RNTDKG
1.6 25.6 25.6 30.0
AC120RN4DKG
AC120RXADKG
1.0 25.0 25.0 30.0
AC120RN4PKG
1.5 25.5 25.5 30.0
AC120RNMDKG
2.5 26.5 26.5 30.0
AC120RNCDKG
2.5 26.5 26.5 30.0
AC140RN4DKG
AC140RXADKG 32.0 32.0
1.0 33.0 33.0 40.0
AC140RN4PKG
1.5 33.5 33.5 40.0
AC140RNMDKG
2.5 34.5 34.5 40.0
AC140RNCDKG
2.5 34.5 34.5 40.0
