8
Installation Procedure
English

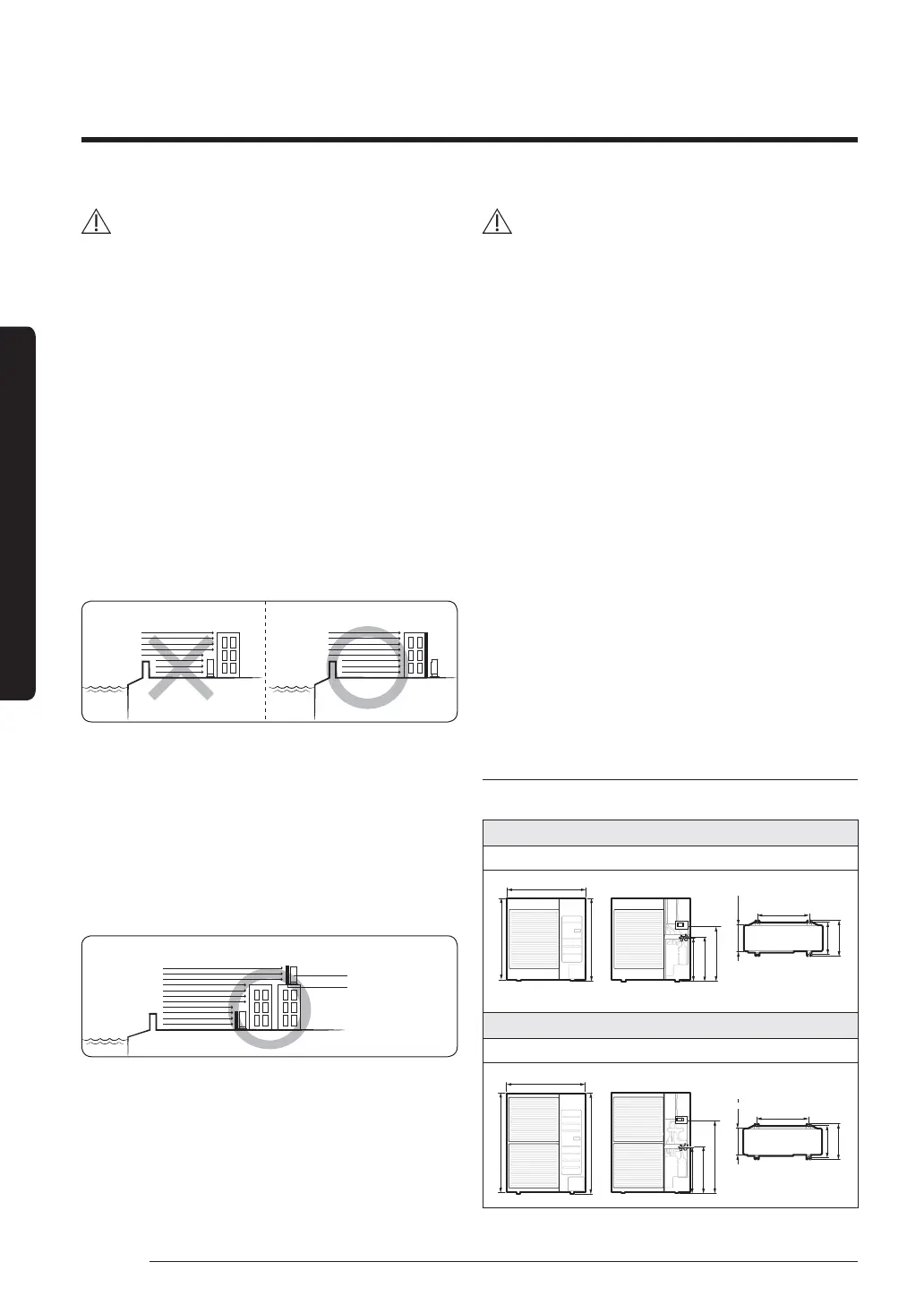

Installation Procedure
CAUTION
• You have just purchased a system air conditioner
and it has been installed by your installation
specialist.
• This device must be installed according to the
national electrical rules.
• If your outdoor unit exceeds a net weight of 60 kg,
do not install it on a suspended wall, but stand it
on a floor.
• When installing the outdoor unit at the seaside, make
sure that it is not directly exposed to sea breeze. If
you cannot find an adequate place free from direct
sea breeze, construct a protection wall or a protective
fence.
– Install the outdoor unit in a place (such as near
buildings etc.) where it can be prevented from sea
breeze. Failure to do so may cause a damage to
the outdoor unit.
Sea breeze Sea breeze
Sea Sea
Outdoor Unit Outdoor Unit
• If you cannot avoid installing the outdoor unit at the
seaside, construct a protection wall around to block
the sea breeze.
• Construct a protection wall with a solid material such
as concrete to block the sea breeze. Make sure that the
height and the width of the wall are 1.5 times larger
than the size of the outdoor unit. Also, secure a space
larger than 700 mm between the protection wall and
the outdoor unit for exhausted air to ventilate.
Protection wall
Outdoor Unit
Sea breeze
Sea
CAUTION
• Depending on the condition of power supply, unstable
power or voltage may cause malfunction of the parts
or control system. (At the ship or places using power
supply from electric generator...etc)
• Install the unit in a place where water can drain smoothly.
• If you have any difficulty finding installation location as
prescribed above, contact your manufacturer for details.
• Be sure to clean the sea water and the dust on the
heat exchanger of the outdoor unit and apply a
corrosion inhibitor on it. (At least once in a year.)
• Check the condition of the product periodically.
– Check the installation site every 3 months and
perform anti-corrosion treatment such as R-Pro
supplied by SAMSUNG (Code: MOK-220SA) or
commercial water repellent grease and wax, etc.,
based on the product condition.
– When the product is to be shut down for a long
period of time, such as off-peak hours, take
appropriate measures like covering the product.
• If the product installed within 500m of seashore,
special anti-corrosion treatment is required.
࢜
Please contact your local SAMSUNG representative
for further details.
Outdoor unit dimensions
(Unit: mm)
A Type
AC100RXADKG/AC100RXADNG/AC120RXADKG/AC120RXADNG
998
977
537
528
620
940
330
384
360
675
B Type
AC140RXADKG/AC140RXADNG
620
330
384
360
1210
1185
940
567
558
675
To Next Page
