Disassembly and Reassembly
Samsung Electronics 229
ŶWall Mounted type(A3050)

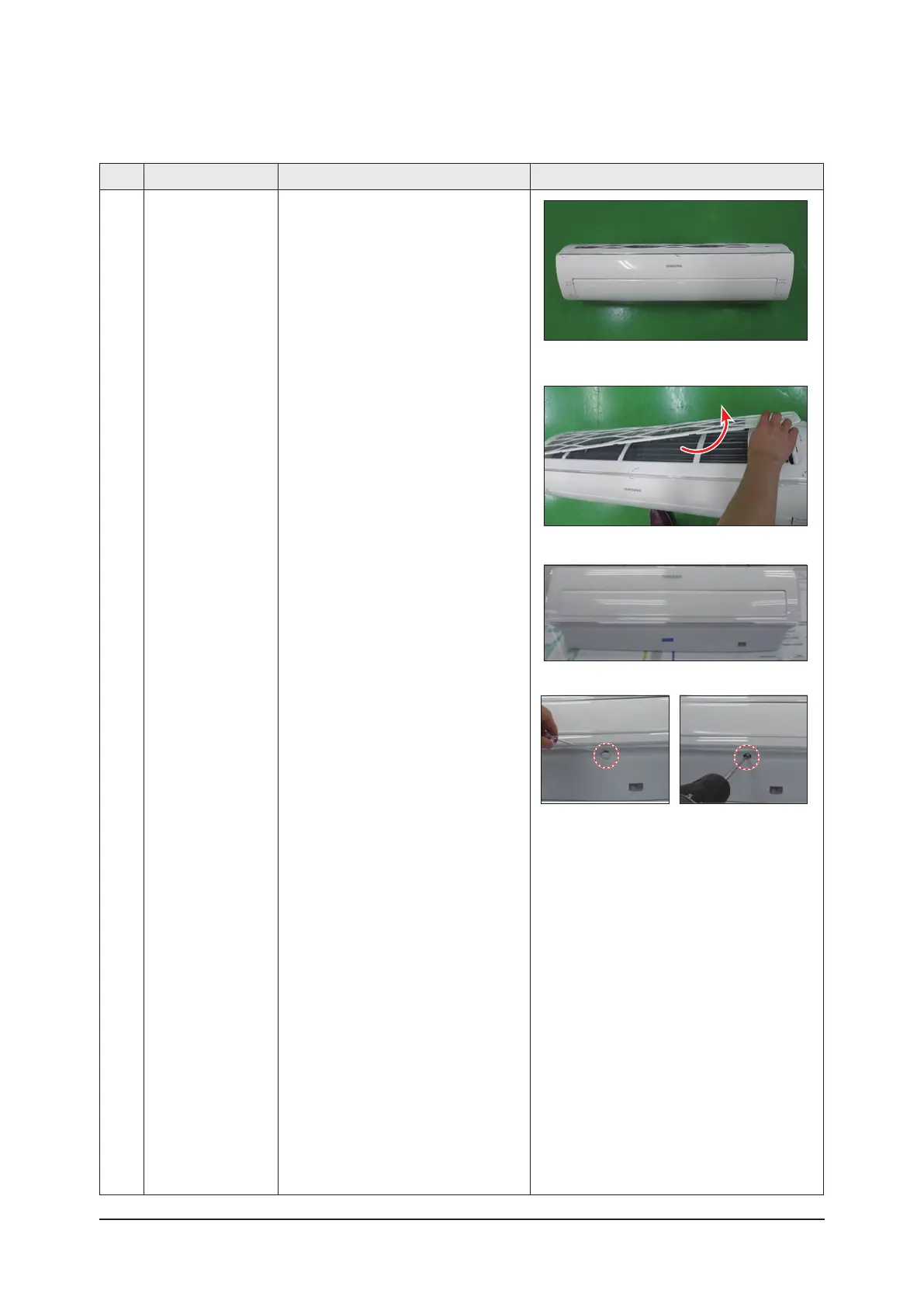

No Parts Procedure Remark
1 PANEL-FRONT 1) Stop the driving of air conditioner and shut off
main power supply.
2) Detach FILTER PRE from the PANEL FRONT.
3) Cover Panel is assembled on bottom of indoor
unit as shown in the figure.
Remove the Cap Screw as shown on the right
side and then remove the screw and separate
the Cover Panel.

Samsung AM017HN1DEH/EU Specifications

General

Type	Air conditioner indoor unit
Cord length	2.5 m
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity (nominal)	5800 BTU/h
Heating capacity (nominal)	6500 BTU/h
Heating capacity in watts (max)	1900 W
Cooling capacity in watts (nominal)	1700 W
Heating capacity in watts (nominal) (Warmer heating season)	- W
AC input voltage	220-240 V
Current (cooling)	0.14 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Power consumption (cooling) (max)	24 W
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Ceiling
Indoor unit depth	135 mm
Indoor unit width	740 mm
Indoor unit height	360 mm
Indoor unit weight	8000 g
Indoor units quantity	1
Indoor unit package depth	435 mm
Indoor unit package width	895 mm
Indoor unit package height	223 mm
Indoor unit package weight	10800 g
Cooling airflow (indoor unit)	4.3 m³/h
Indoor unit sound power level	46 dB
Indoor unit noise level (low speed)	21 dB
Indoor unit noise level (high speed)	27 dB
Outdoor unit noise level	- dB
