Troubleshooting
366 Samsung Electronics
4-4-42 Outdoor Cond Out sensor breakaway error
2.
Cause of problem
1. Judgment Method
1) No inspection for Cooling operation.
2) For heating operation (Each of the conditions below needs to be satisfied for more than 20 minutes.)
High pressure average > 25kg/cm² OK
Low pressure average < 8.5kg/cm² OK
Teva, out - Tair, in ≥ 3°C OK
Teva, in - Tair, in ≥ 2°C OK
Tcond, out - Tair, out ≤ 0°C NO
Every compressor is in operation & indoor unit operation and Thermo On OK

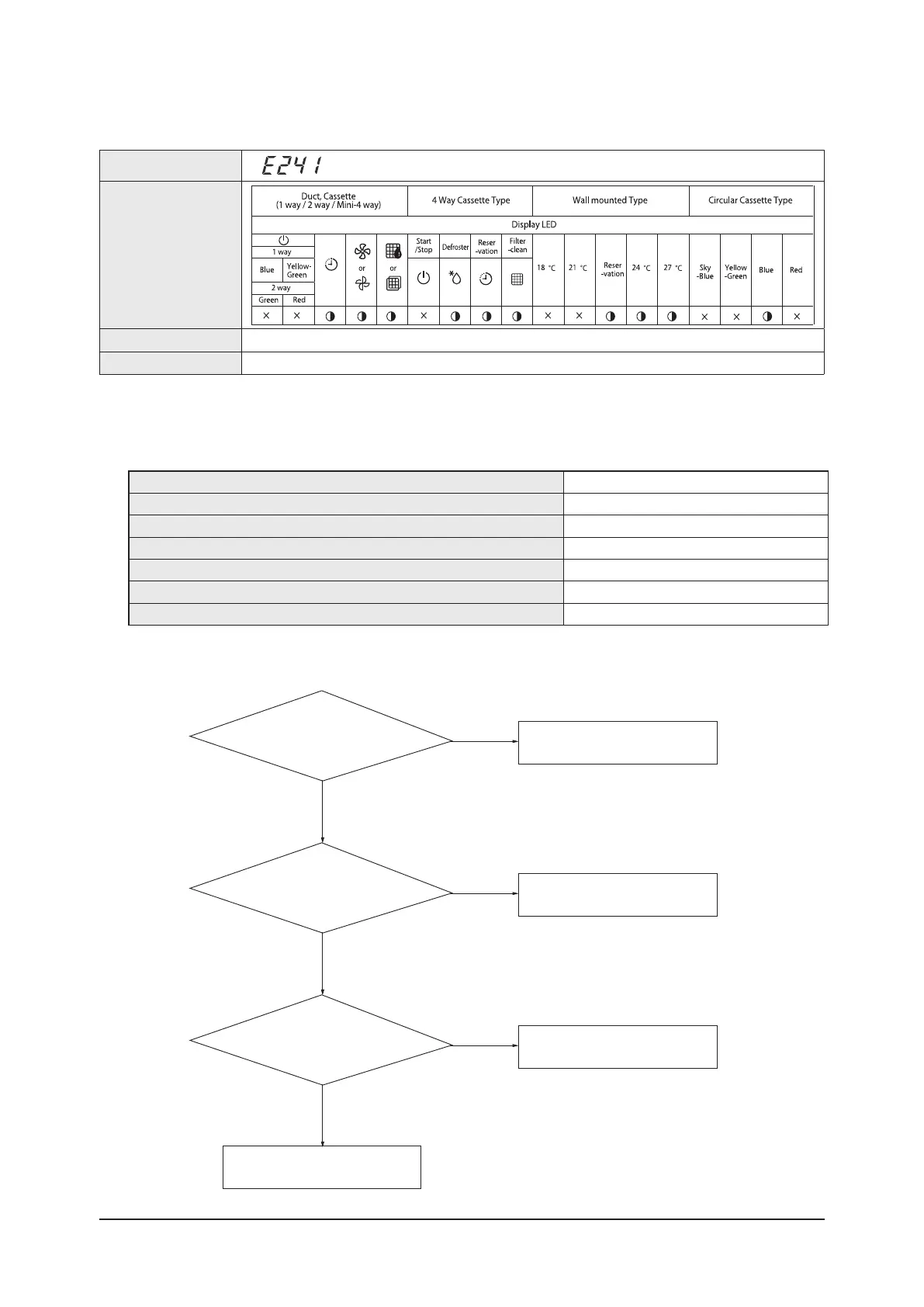

Error Content Outdoor Cond Out sensor breakaway error
Ye s
Ye s
Is the Cond Out
sensor and the sensor holder correctly
attached?
Are there any changes
n the value of the sensor when operating from
stop to heating?
Is the Cond Out sensor
resistance value reasonable?
(Refer to E231)
Complete
Re-insert sensor.
Re-attach sensor holder.
Ye s
No
Defective Sensor : Replace Sensor
No
Blocked Sensor Path :
Change heat exchanger Ass'y
No
Outdoor unit display
Indoor unit display
Criteria
 Refer to the judgment method below.
Cause of problem
 Outdoor Cond Out sensor breakaway/defective/ relevant path blocked.

Samsung AM017HN1DEH/EU Specifications

General

Type	Air conditioner indoor unit
Cord length	2.5 m
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity (nominal)	5800 BTU/h
Heating capacity (nominal)	6500 BTU/h
Heating capacity in watts (max)	1900 W
Cooling capacity in watts (nominal)	1700 W
Heating capacity in watts (nominal) (Warmer heating season)	- W
AC input voltage	220-240 V
Current (cooling)	0.14 A
AC input frequency	50 Hz
Design load (cooling)	- kW
Power consumption (cooling) (max)	24 W
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Ceiling
Indoor unit depth	135 mm
Indoor unit width	740 mm
Indoor unit height	360 mm
Indoor unit weight	8000 g
Indoor units quantity	1
Indoor unit package depth	435 mm
Indoor unit package width	895 mm
Indoor unit package height	223 mm
Indoor unit package weight	10800 g
Cooling airflow (indoor unit)	4.3 m³/h
Indoor unit sound power level	46 dB
Indoor unit noise level (low speed)	21 dB
Indoor unit noise level (high speed)	27 dB
Outdoor unit noise level	- dB
