Connecting the Cables to the Outdoor Unit
Two electric cables must be connected to the outdoor unit:
◆
The assembly cable connecting the indoor unit to the outdoor unit.
◆ The power cable connecting the auxiliary circuit breaker to the
outdoor unit.
1 Remove the terminal board cover on the side of the outdoor unit.

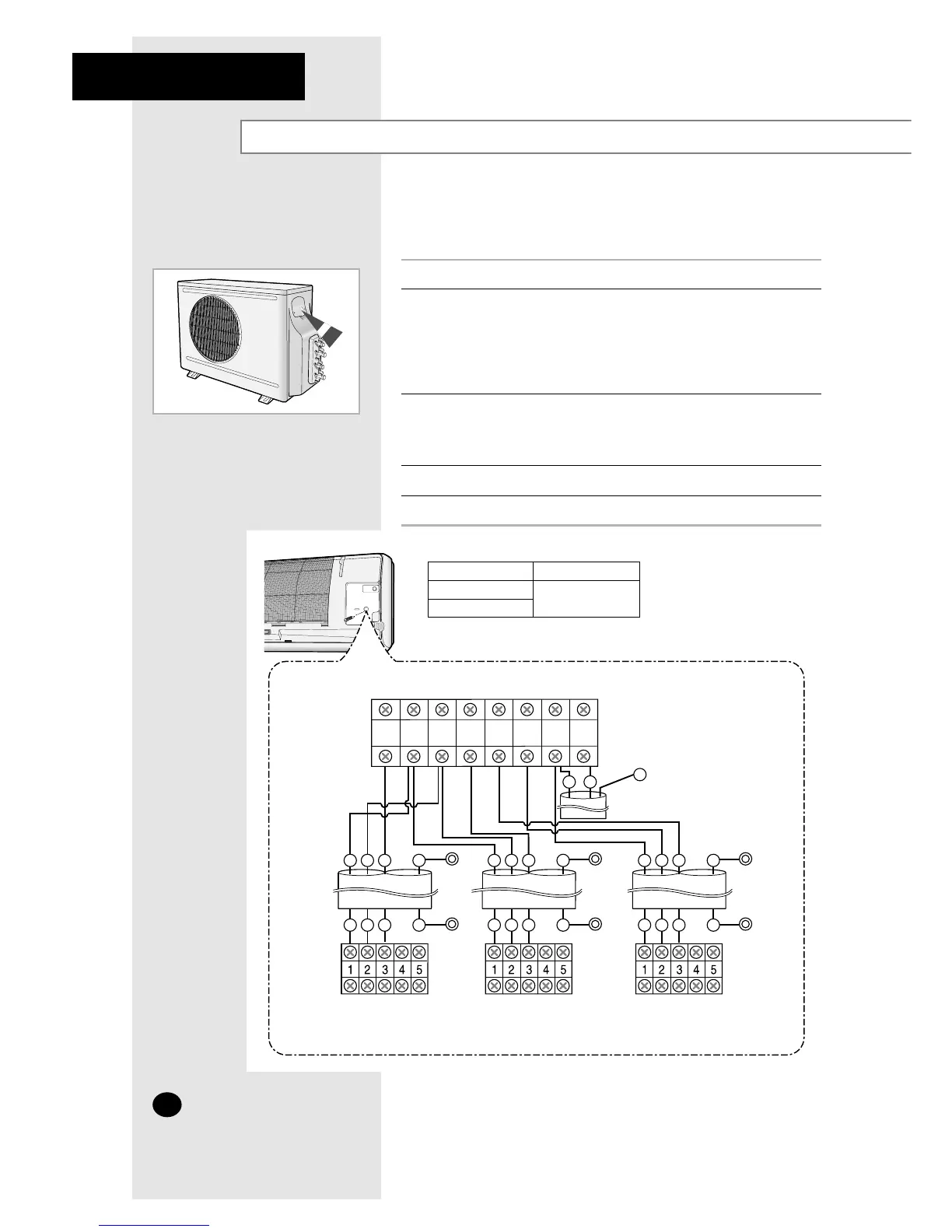

2 Connect the assembly cable to terminals 1 to 5 and connect the power
cable to the terminals A to B.
➢ Each wire is labelled with the corresponding terminal number.
➢ Ensure the wire number of the indoor unit and the terminal
number of the outdoor unit.
3 Connect the earth wires to the earth terminals.
➢ Refer to the page 39 for further details on how to check
that earthing is correct.
4 Replace the terminal board cover, carefully tightening the screw.
5 Connect the power cable to the auxiliary circuit breaker.
