Samsung APH289SEF - Outdoor Unit Disassembly Procedures

Samsung Electronics22
3-2 Outdoor Unit

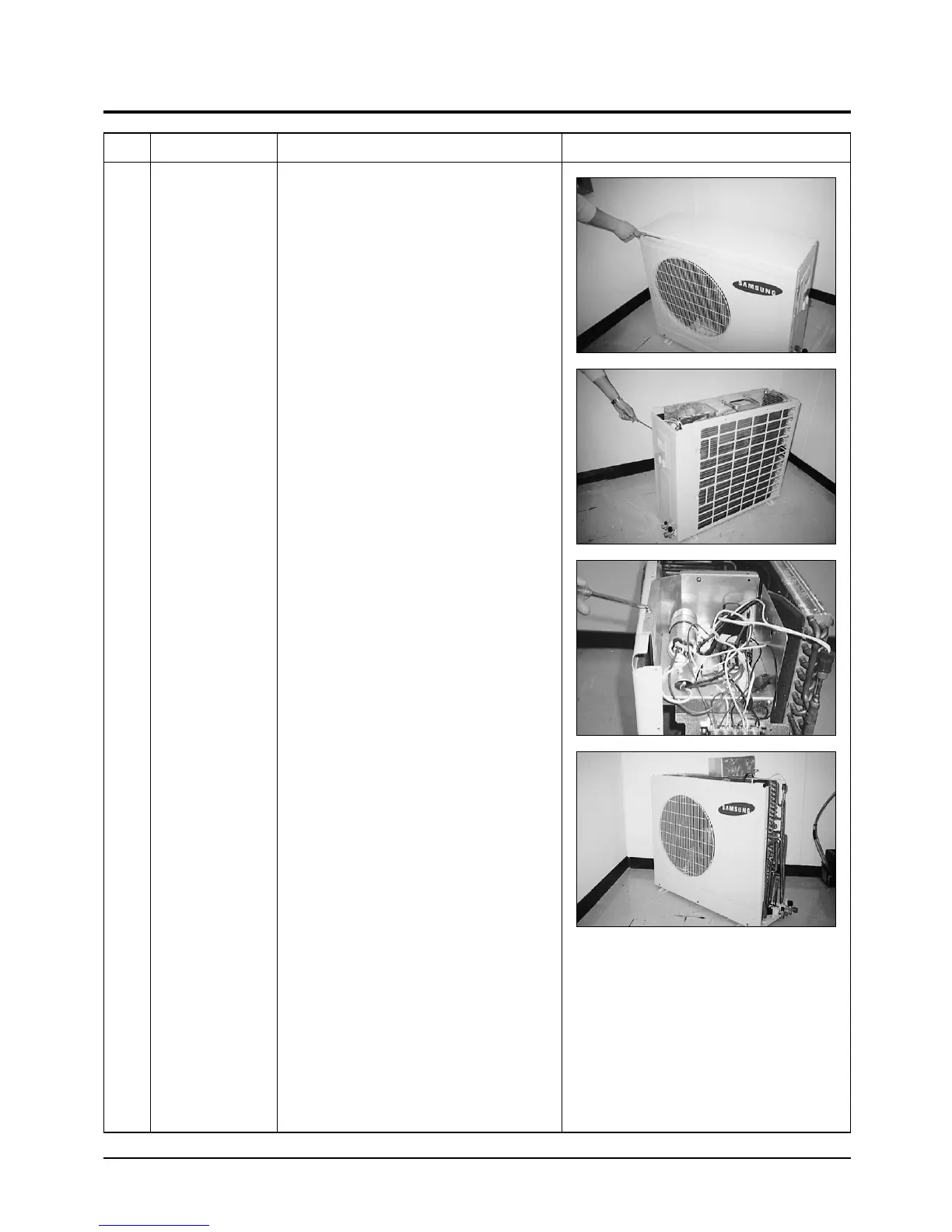

No Parts Procedure Remark
1 Common Work
1) Detach the Cover Top by removing the
screws fixing Cover Top.
2) Detach the Back Cabinet by removing the
screws fixing Back Cabinet.
3) Detach the Control Box by removing the
screws fixing Control Box.
(The feature of wiring may vary with the
models.)
4) Detach the Cover Front by removing the
screws fixing Cover Front. (M6 SCREW)
