4-10 Samsung Electronics
Disassembly and Reassembly

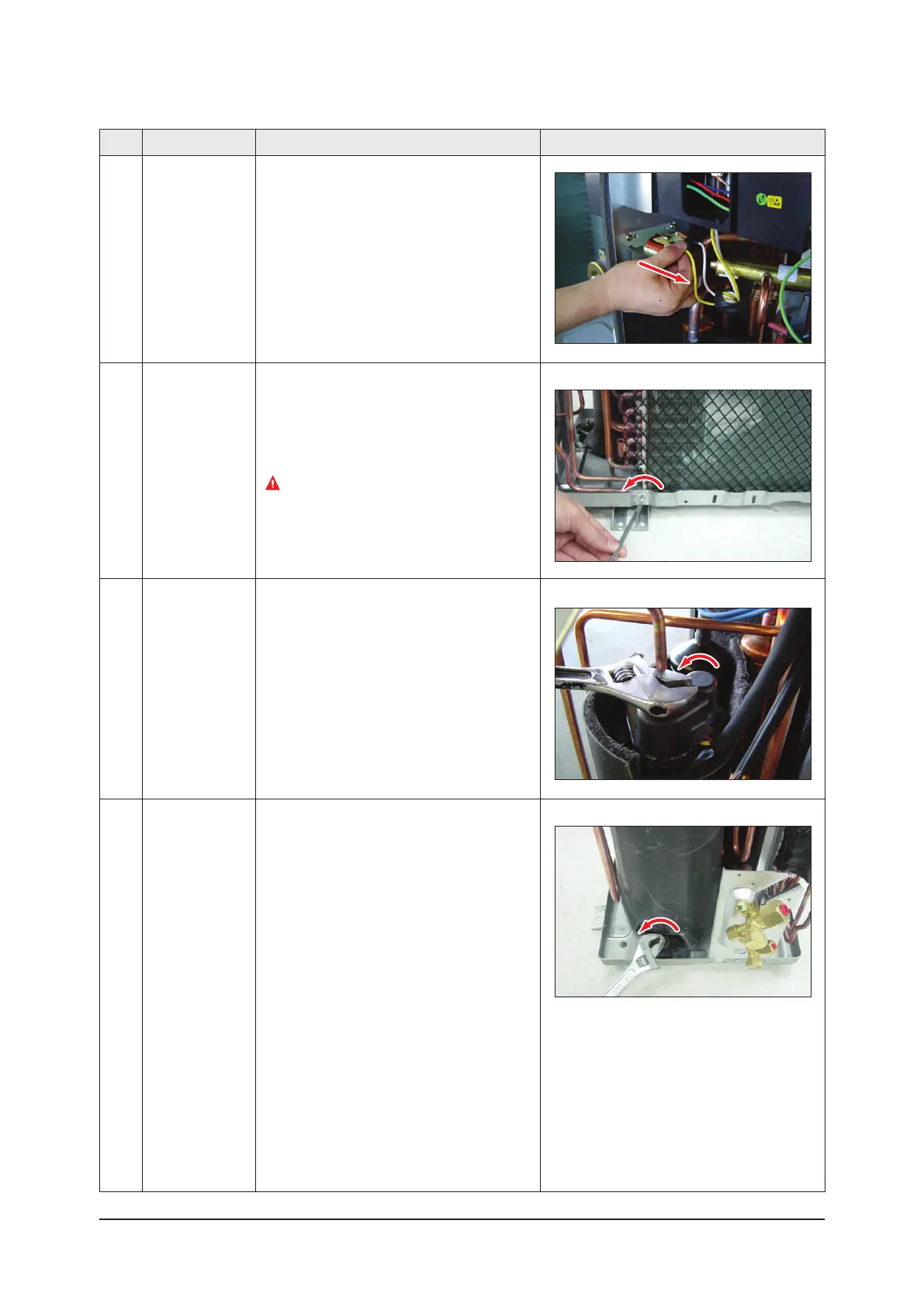

No Parts Procedure Remark
3 Ass’y Control Out 1) Detach several connectors from the
Ass’y Control Out.
2) Detach several connectors from the PCB of
Ass’y Control Out.
3) Pull up the Ass’y Control Out.
4 Heat Exchanger 1) Release the refrigerant at first.
2) Loosen fixing screw(CCW).
3) Disassemble the pipes in both inlet and outlet
with welding torch.
4) Detach the Heat Exchanger.
Before you disassemble the pipes and
Condenser, be sure that there should be
no refrigerant remained in the unit.
5 Compressor 1) Loosen the fixing nut(CCW) and detach the
Compressor Lead Wire.
2) Disassemble the Felt Comp Sound.
3) Loosen the 3 bolts(CCW) at the bottom of
Compressor like the picture on the right side.
To Next Page
