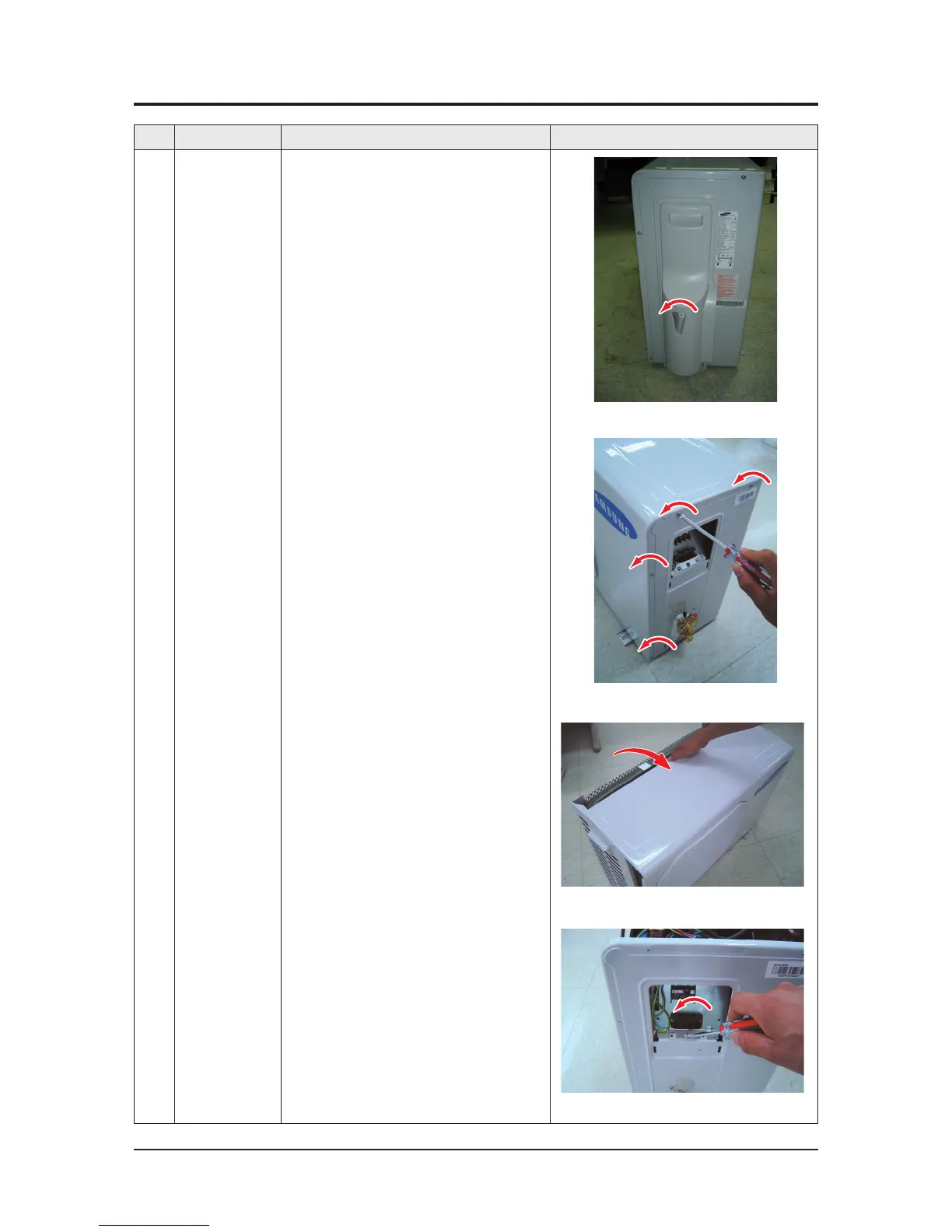

No Parts Procedure Remark
1 Common Work 1) Loosen 1 fixing screw(CCW) of the Cover-Side.
(Use +Screw Driver.)
2) Loosen each 4 screws(CCW) on both right and
left Cabinet Side edges and a fixing screw on
the Cabinet Front lower to detach the Cabinet
Front. (Use +Screw Driver.)
3) Detach the Cabinet Front like the picture on the
right side.
4) Loosen 1 screw(CCW) fixed to assemble Plate
Control Out with Cabinet-Side RH.
(Use +Screw Driver.)
