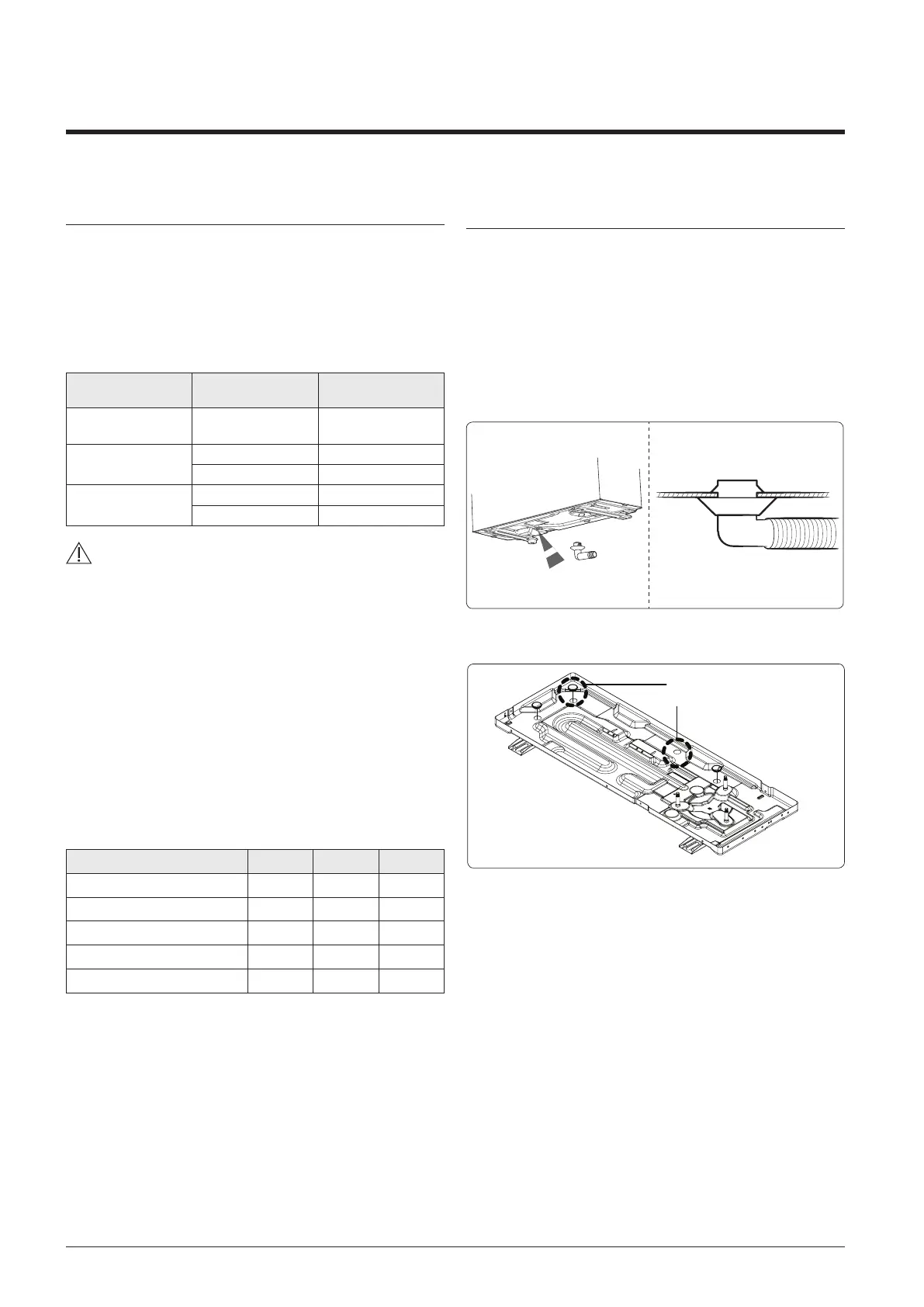

13. Installation
Calculating the quantity of refrigerant to add
The quantity of additional refrigerant is variable according to the
installation situation. Thus, make sure the outdoor unit situation
before adding refrigerant.
If you install the excessive length of pipe, add additional
refrigerant as 10g or 20g per unit meter ; refer to the table below.
Refer to the Service Manual for more details on this operation.
Model
Total connecting
pipe length (L)
Adding refrigerant
AJ040TXJ2KG
AJ050TXJ2KG
Chargeless
AJ052TXJ3KG
AJ068TXJ3KG
Chargeless
(LT-30m)x10g
AJ080TXJ4KG
Chargeless
(LT-30m)x20g
CAUTION
of the product charging port (e.g. onto the inside of
the stop valve cover).
Make sure that the total refrigerant charge does not
exceed (A), the maximum refrigerant charge, which
is calculated in the following formula: Maximum
refrigerant charge (A)= factory refrigerant charge
(B) + maximum additional refrigerant charge due to
piping extension (C).
Here below, the summary table with refrigerant
charge limits for each products.
(Unit:g)
Model A B C
AJ040TXJ2KG/EU 980 980 0
AJ050TXJ2KG/EU 1180 1180 0
AJ052TXJ3KG/EU 1750 1550 200
AJ068TXJ3KG/EU 2200 2000 200
AJ080TXJ4KG/EU 2800 2000 800
Connecting the drain hose to the outdoor unit
When heating, ice may accumulate. During the process
of defrosting, check if condensation draining is
adequate.
For adequate draining, do the following :
1 Insert the drain plug into the drain hole on the
underside of the outdoor unit.
2 Connect the drain hose to the drain plug.
3 Ensure that condensation draining is adequate.
4 Be sure to plug the rest of drain holes not connected
with drain plugs using drain caps.
Drain cap (3EA)
Drain plug (1EA)
When installing the product, make sure that the rack
is not placed under the drain hole.
If the product is installed in a region of heavy snow,
allow enough separation distance between the
product and the ground.
