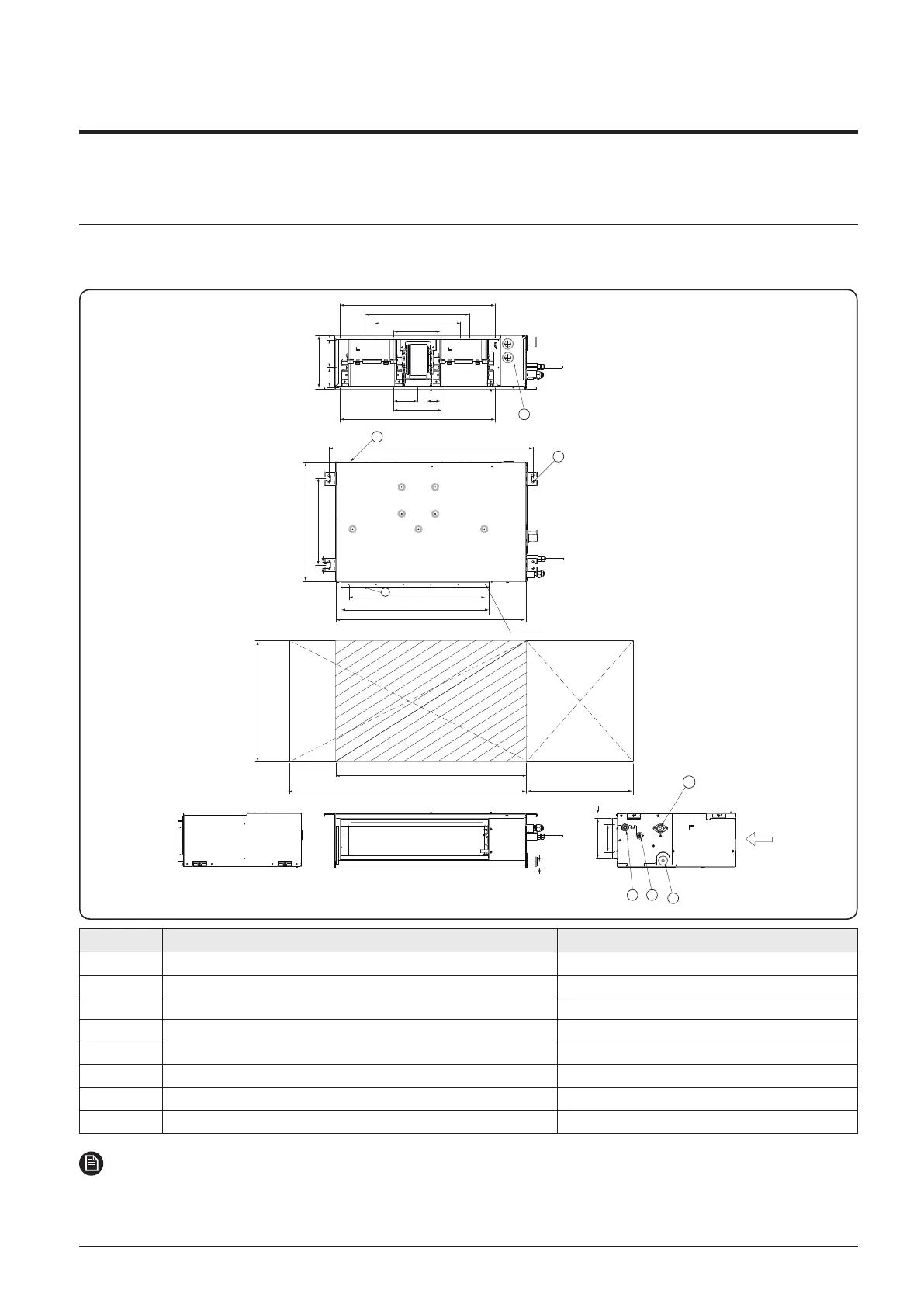

5. Dimensional Drawing
5-2. Indoor unit
6
Home duct : AJ026TNLPEG/EU, AJ035TNLPEG/EU
Units : mm [inches]
566
566
173
86 52
382
312
173
01071
91 9
87.
746
440
316
4-28
542
5x100=500
700
16-Ø3.2
8
7
6
700
800 500
23.2
3
1
2
4
010
015
19
Suspension podition
Suspension podition
Air outlet duct flange
440
5
NO Name Description
1 Liquid pipe connection ø6.35
2 Gas pipe connection ø12.70
3 Drain pipe connection without drain pump VP25 (OD ø32,ID ø25)
4 Drain pipe connection with drain pump VP25 (OD ø32,ID ø25)
5 Power supply/Communication connection -
6 Air discharge grille flange -
7 Return air side -
8 Hook ø9.52 or M10
NOTE
As for drain pipe, please use VP25 (PVC, O.D.I - 1/4 (32 mm)).
As for suspension bolt, please use M10 or W3/8. (Produced at local site)
