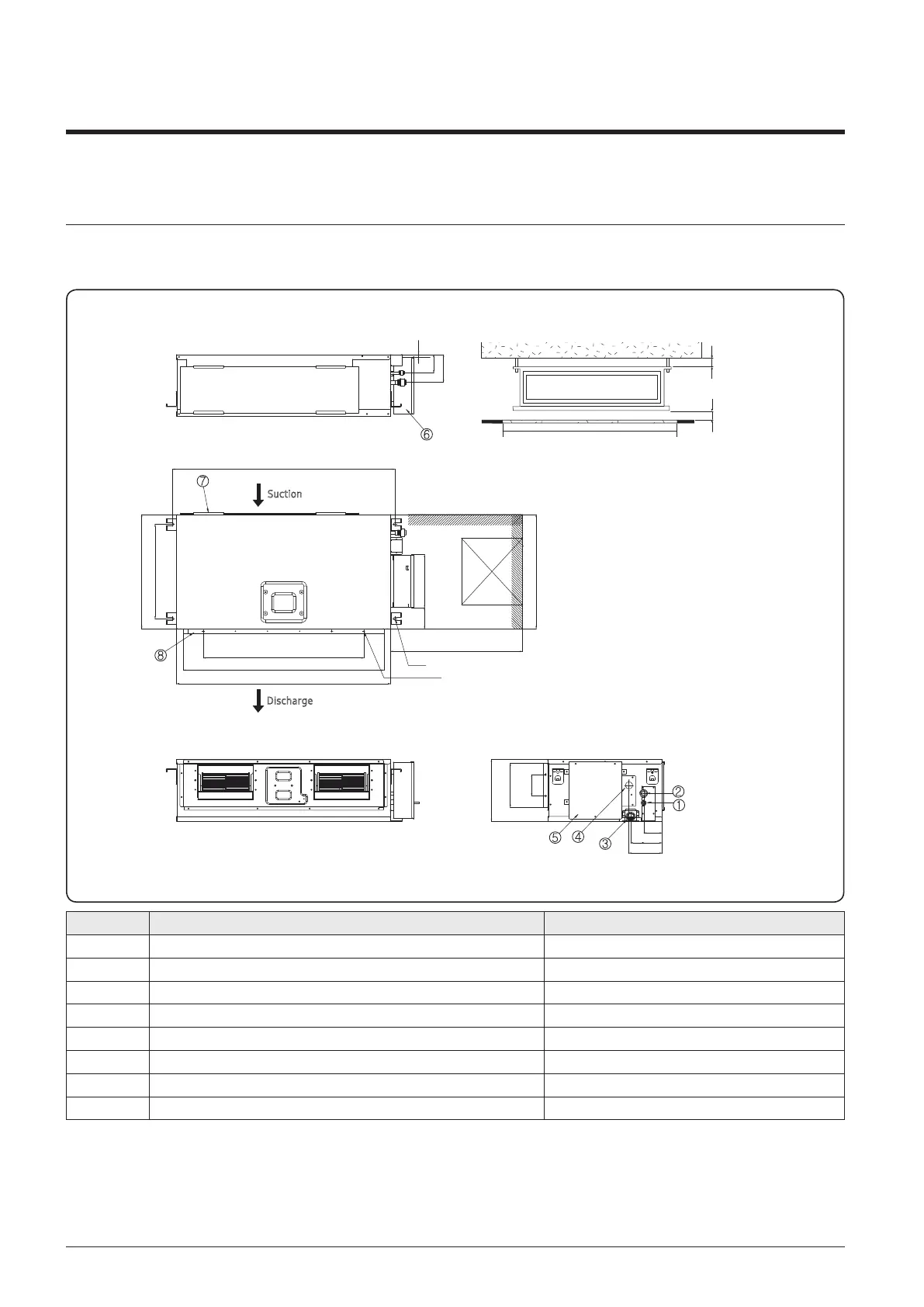

5. Dimensional Drawing
5-2. Indoor unit
6
Home Duct : AJ052TNMDEG/EU
Units : mm [inches]
936 [31-7/8"]
480 [18- 7/8"]
397 [15- 5/8"]
900 [35-7/16"]
844 [33-1/4"] (Air outlet duct flange)
5x135=675 [26-9/16"]
600 [26-9/16"]
480 [18- 7/8"]
222 [8- 3/4"]
87
[3-7/16"]
117
[4-5/8"]
77 [3"]
12 [1/2"]
260 [10-1/4"]
185 [7-5/16"]
90 [3-9/16"]
(Air outlet duct flange)
139 [5-1/2"]
132 [5-3/16"]
76 [3"]
Discharge
Suction
Duct Flange connection bolts(M4) x 16EA
Suspension bolts(M8-M10) x 4EA
20mm or more
20mm or more
Discharge Side
NO Name Description
1 Liquid pipe connection
2 Gas pipe connection
3 Drain pipe connection VP-25 (OD 32, ID 25)
4 Knockout hole for Drain pump Option kit
5 Control unit -
6 Conduit for power supply & Communication wiring -
7 Return air side -
8 Air outlet duct flange -
