4-20 Samsung Electronics
No Parts

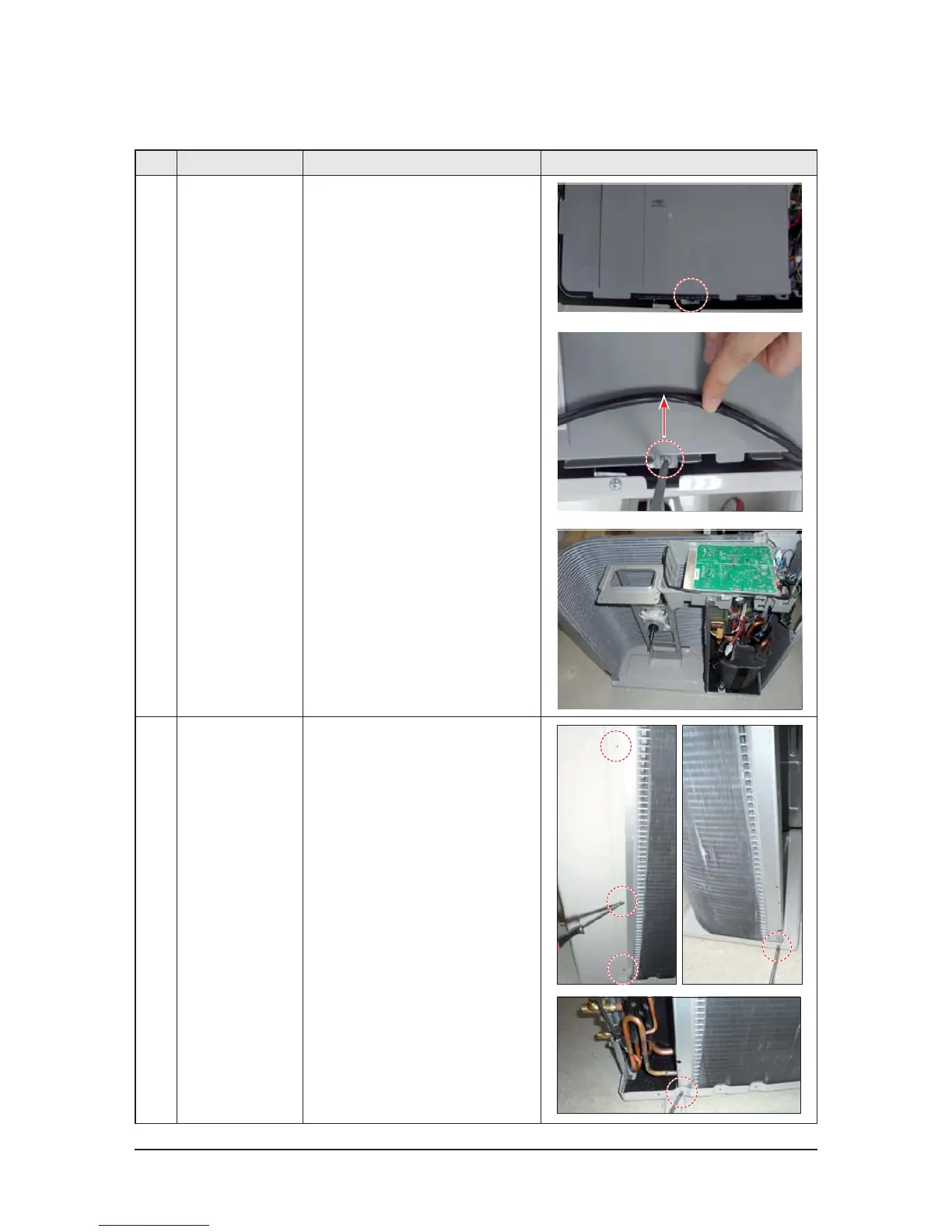

Procedure Remark
3Ass’y
Control Out
1) To remove the Cover control box : Pull the motor
wire is allow sufficient space as shown on the
right side and then remove the screw.
2) Detach several connectors from the Ass’y
Control Out.
3) Detach several connectors from the PCB of Ass’y
Control Out.
4 Heat Exchanger 1) Release the refrigerant at first.
2) Loosen fixing screw on both sides.
3) Disassemble the pipes in both inlet and
outlet with welding torch.
4) Detach the Heat Exchanger.
