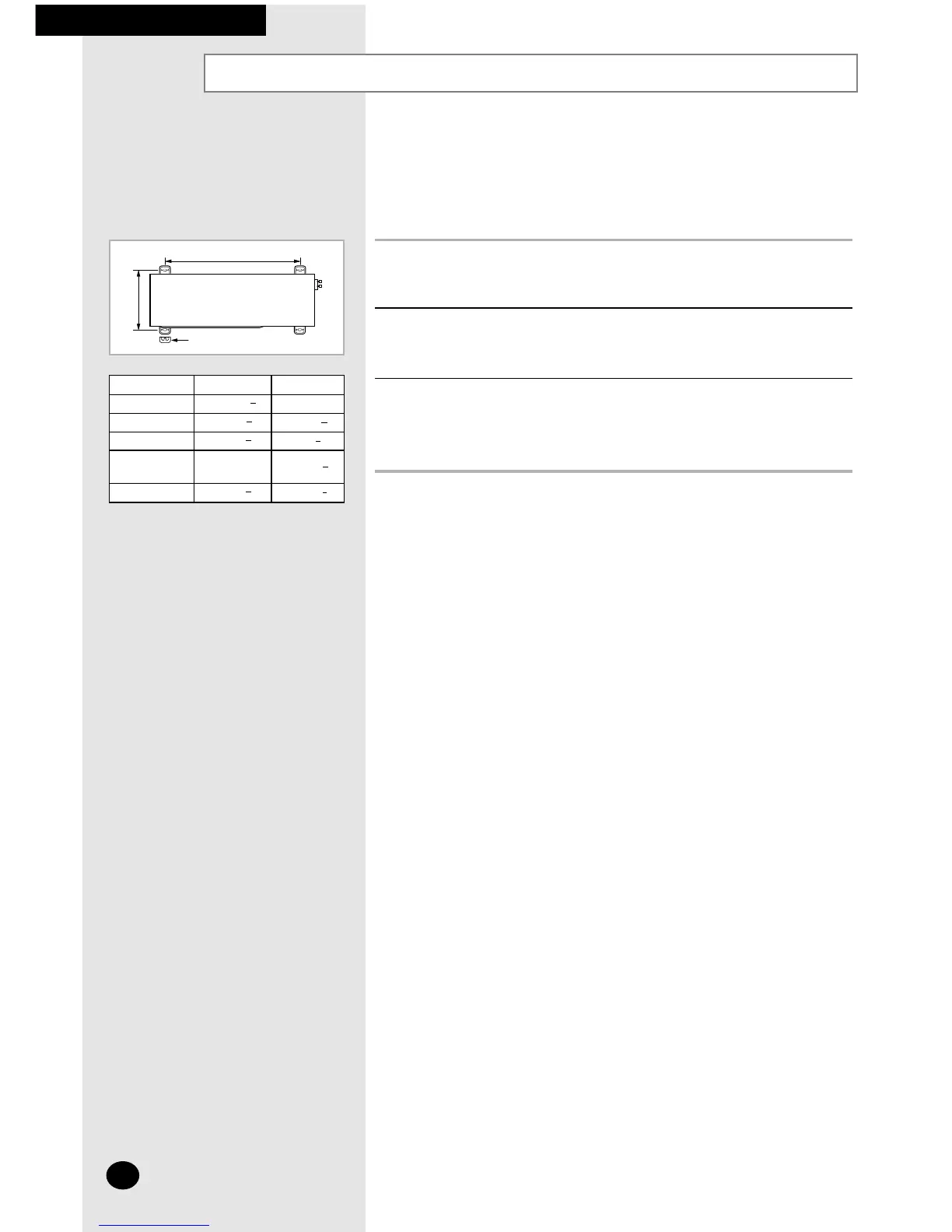

Fixing the Unit in Position
The outdoor unit must be installed on a rigid and stable base to avoid any increase
in the noise level and vibration, particularly if the outdoor unit is to be installed close
to a neighbour. If it is to be installed in a location exposed to strong winds or at a
height, the unit must be fixed to an appropriate support (wall or ground).
1 Position the outdoor unit so that the air flow is directed towards the
outside, as indicated by the arrows on the top of the unit.
2 Attach the outdoor unit to the appropriate support using anchor bolts.
3 If the outdoor unit is exposed to strong winds, install shield plates around
the outdoor unit, so that the fan can operate correctly.
❇ Certainly fix up its rubber leg, in order to prevent its vibration and noise.
X
Rubber leg
Y
I
NSTALLING THE
O
UTDOOR
U
NIT
Model
✴✴
07/09
✴✴
AS12A5(A6)MC
AS12AA(AB)MC
AS18A5(A6)RC
AS24A1(A2)RC
AS18A9(A0)RCD
X
493.7( )
555( )
506( )
660(26)
582( )
Y
254(10)
295( )
252( )
340( )
338( )
Unit : mm(inch)
