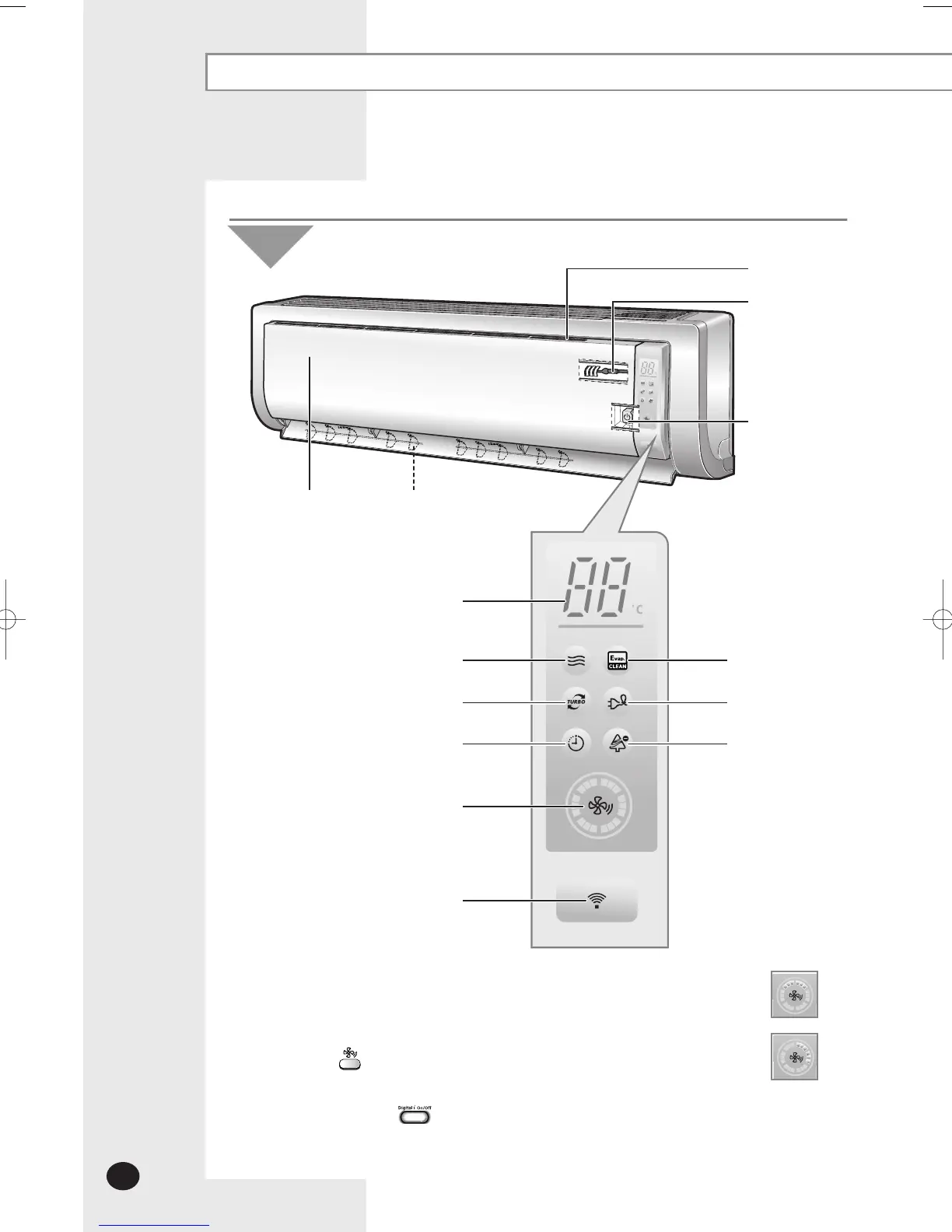

Name of Each Part

E-

The design and shape can be changed according to the model.

Indoor Unit

Air filter

(under the grille)

Airflow blades

(outlet)

Power(On/Off) button

Set temperature &

room temperature

Operation indicator

(Auto-Cool, Cool, Dry, Fan : Blue

Auto-Heat, Heat : Orange)

Auto cleaning indicator

(Blue)

Energy saving indicator

(Blue)

Anions indicator

(Blue)

Turbo function indicator

(Blue)

Timer indicator

(Orange)

Fan speed indicator

(Blue)

Remote control sensor

Room Temperature sensor

Air Inlet

◆ In the Auto mode, 2 fan indicators increase and decrease continuously

and turn round.

◆ In the modes except the Auto mode, the fan speed indicator increases

and decreases continuously and turn round each time you press the

button. If you set the Turbo function, the fan speed indicator turns

round with the maximum setting and speed.

◆ If you want to turn on/off the Display during operation,

press the button on the remote control.

◆ The room temperature sensor senses air temperature around the

sensor, and shows the temperature on the display.

AS09HPCN IB_E_24445 10/31/05 6:54 PM Page 4
