2. Disassembly and Reassembly
2-1 Indoor Unit
Stop operation of the air conditioner and remove the power cord before repairing the unit.
No Parts Procedure Remark

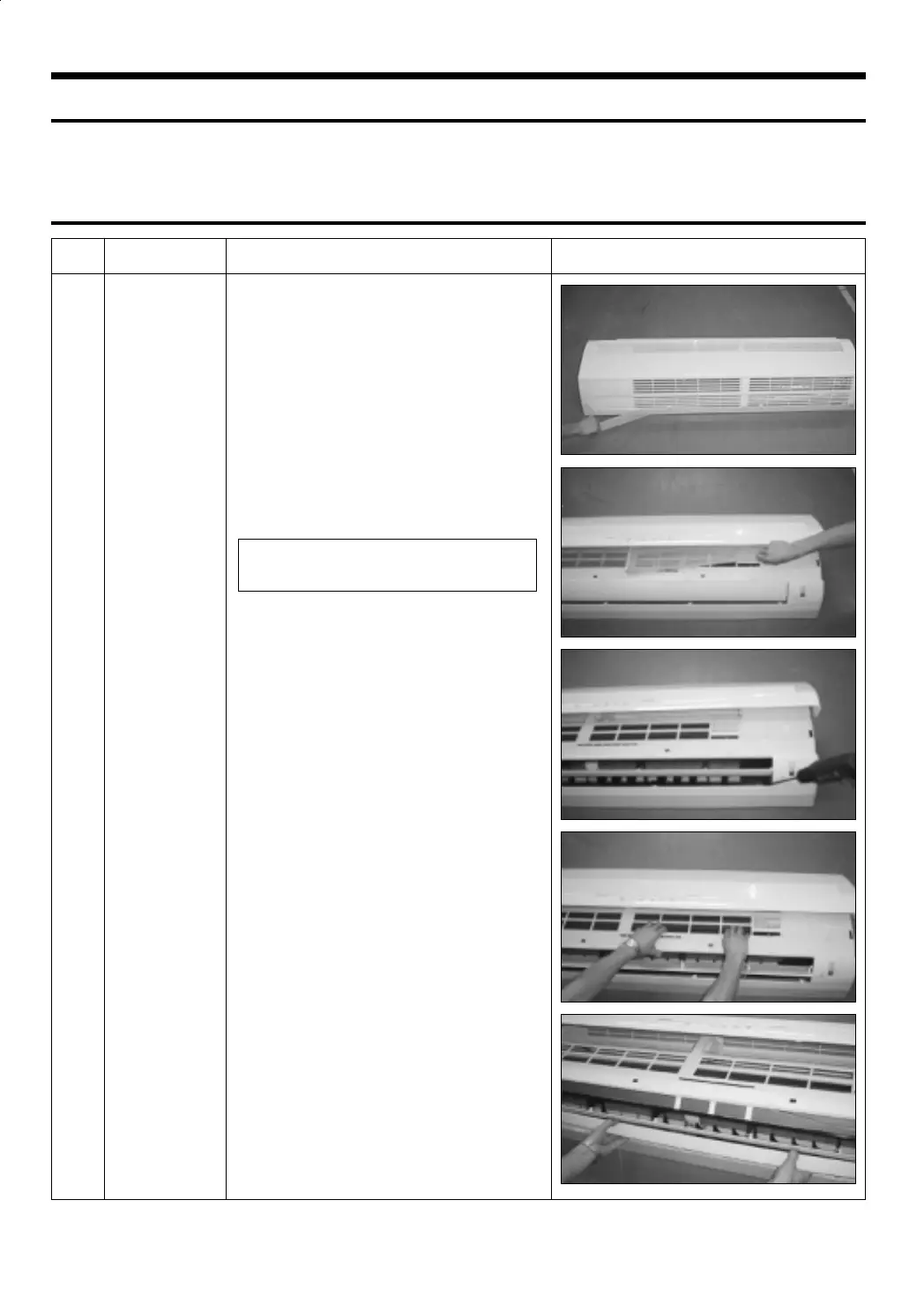

Front Grille
!
1) Stop the air conditioner operation and block the
main power.
2) Seperate tape of front panel upper.
3) Contract the second finger to the left, and right
handle and pull to open the inlet grille.
4) Take the left and right filter out.
5) Loosen one of the right fixing screw and seper-
ate the terminal cover.
6) Loosen four fixing screws of front grille.
7) Pull the upper four parts of discharge softly for
the outside cover to be pulled out.
8) Pull softly the lower part of discharge and push
it up.
Caution;
Fix the hook of four parts and assembly the front
panel.
* Take the Deodorizing and Electrostatic filter
out. (Optional)
