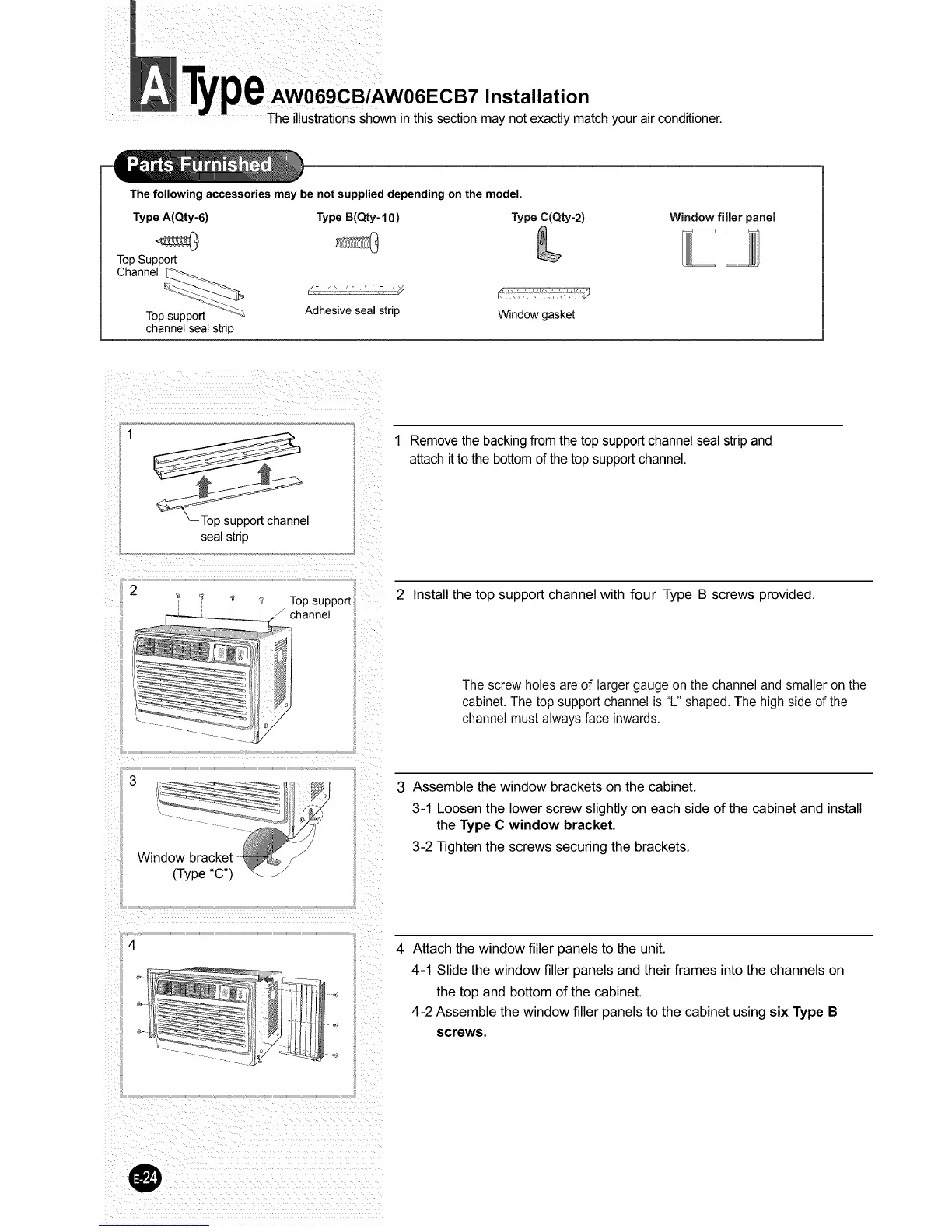

i AW069CB/AW06ECB7 Installation
l'he illustrations shown in this section may not exactly match your air conditioner.
The following accessories may be not supplied depending on the model.
Type A(Qty-6) TypeB(Qty-10)
TopSupport
Channel
Top_*_-- Adhesive sealstrip
channel sealstrip
Type C(Qty-2)
Window gasket
Window filler panel
1 Removethe backingfrom thetop supportchannelsealstrip and
attachitto the bottomof the top supportchannel.
Top support channel
seal strip
2 _ _ v _ Topsupport
. channel
2 Install the top support channel with four Type B screws provided.
The screw holes are of larger gauge on the channel and smaller on the
cabinet. The top support channel is "L" shaped. The high side of the
channel must always face inwards.
(Type "C")
3 Assemble the window brackets on the cabinet.
3-1 Loosen the lower screw slightly on each side of the cabinet and install
the Type C window bracket,
3-2 Tighten the screws securing the brackets.
Trli, .
4 Attach the window filler panels to the unit.
4-1 Slide the window filler panels and their frames into the channels on
the top and bottom of the cabinet.
4-2 Assemble the window filler panels to the cabinet using six Type B
screws.
@
