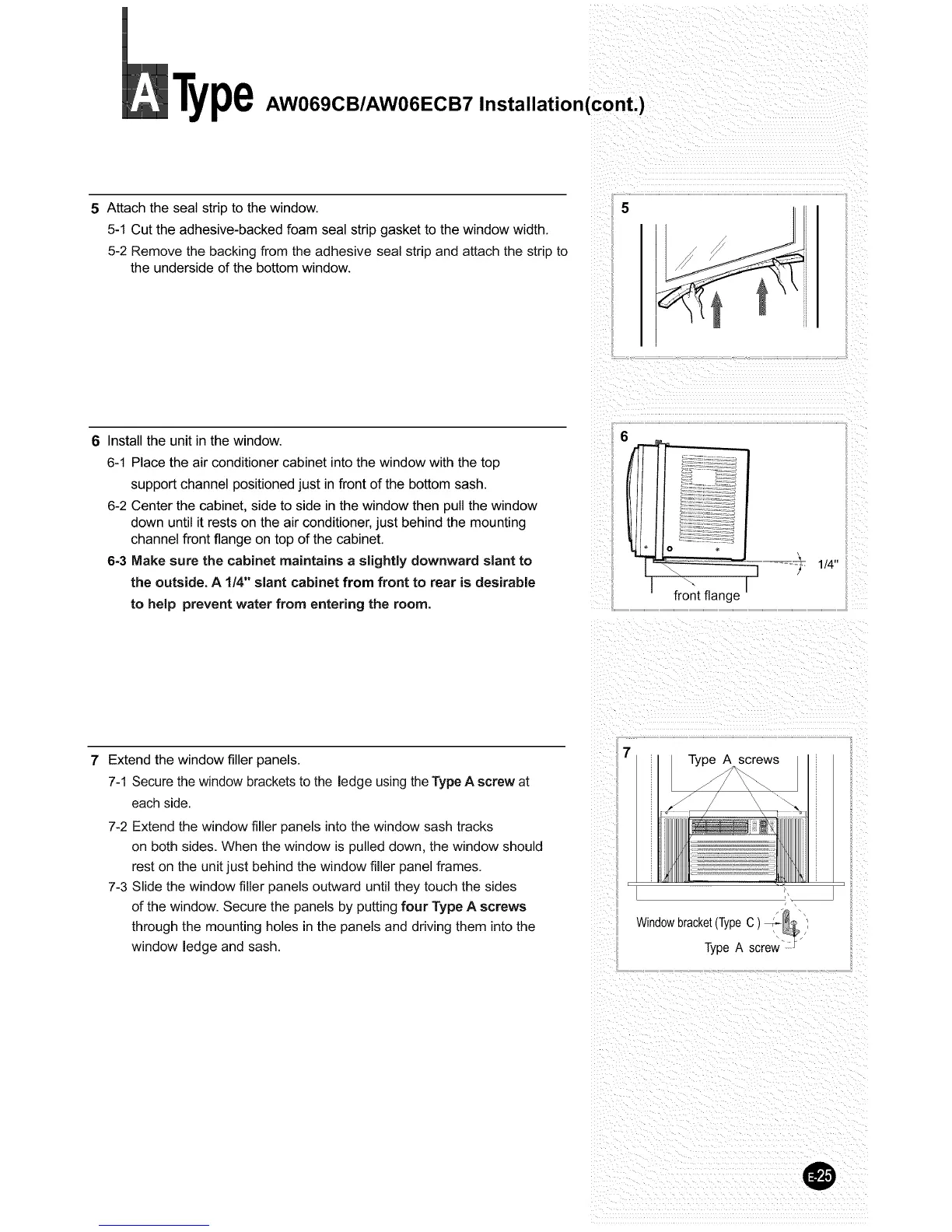

TypeAW069CB/AW06ECB7 Installation(cont.)
5 Attach the seal strip to the window.
5-1 Cut the adhesive-backed foam seal strip gasket to the window width.
5-2 Remove the backing from the adhesive seal strip and attach the strip to
the underside of the bottom window.
6 Install the unit in the window.
6-1 Place the air conditioner cabinet into the window with the top
support channel positioned just in front of the bottom sash.
6-2 Center the cabinet, side to side in the window then pull the window
down until it rests on the air conditioner, just behind the mounting
channel front flange on top of the cabinet.
6-3 Make sure the cabinet maintains a slightly downward slant to
the outside. A 1/4" slant cabinet from front to rear is desirable
to help prevent water from entering the room.
6
!
L
\\ iq
front flange
_°? 1/4"
Extend the window filler panels.
7-1 Secure the window brackets to the ledge using the Type A screw at
each side.
7-2 Extend the window filler panels into the window sash tracks
on both sides. When the window is pulled down, the window should
rest on the unit just behind the window filler panel frames.
7-3 Slide the window filler panels outward until they touch the sides
of the window. Secure the panels by putting four Type A screws
through the mounting holes in the panels and driving them into the
window ledge and sash.
7 A
Windowbracket(TypeC ) _--_.
Type A screw _"
@
