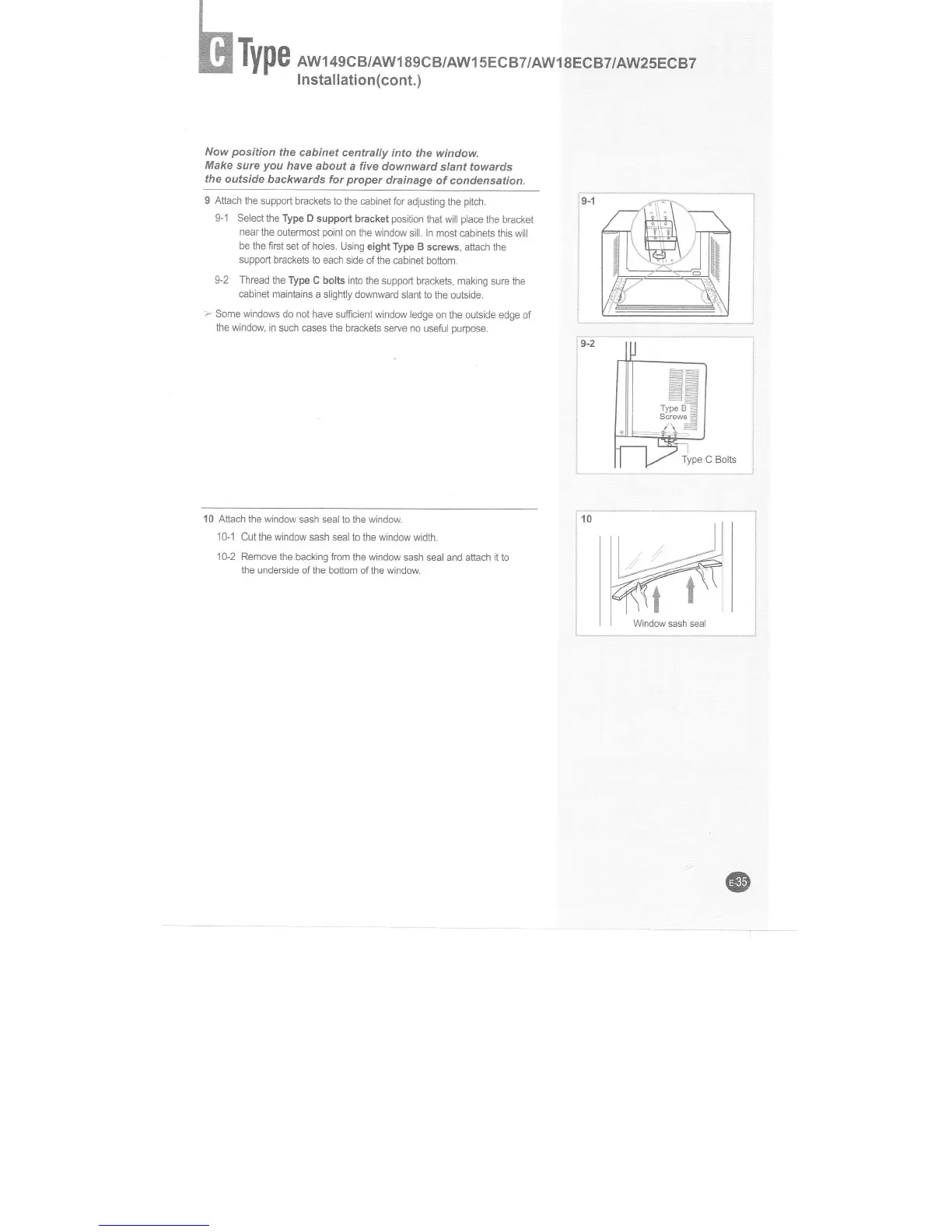

lnstatlationlcont.)
:
.
, :
Now
position
the
cabinet centrally
into
the window.
Make
sure
you
have
about
a
five
downward
slant towards
the outside
backwards for
proper
drainage
of condensation.
9 Attach the support
brackets to the
cabinet for
adjusting the
pitch.
9-1 Select the Type
D support
bracket
position
that will
place
the
bracket
near the
outermost
point
on the window
sill. ln most
cabinets this will
be the first
set of holes.
Using eight Type
B screws,
attach
lhe
support
brackets to each side
of the cabinet
bottom.
9-2
Thread
the Type
C bolts into the
support brackets,
making sure the
cabinet mainlains
a slightly
downward slant
to the outside.
>-
Some windows
do not have sufficient
window ledge
on the outside edge
of
the window, in such cases
the brackels serve
no useful
pumose.
10 Attach the window
sash seal to the window.
10-1
Cut the window sash
seal to the window width.
1 0-2 Remove
the backing from the window
sash seal and attach it to
the underide of the bottom
of the window.
