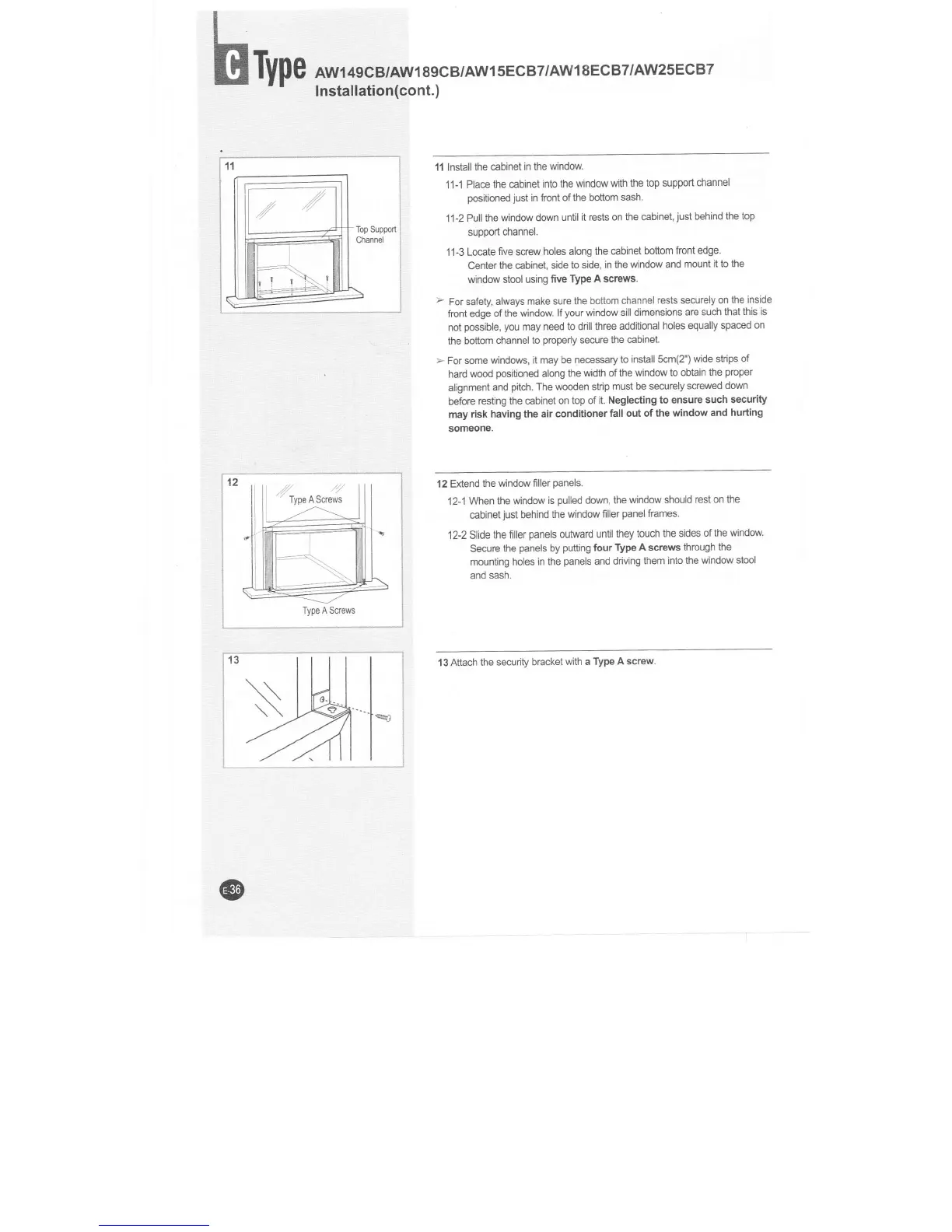

Samsung AW10ECB7 - Type C Installation Continued

I
I
El-
li|
ryp
e
fiHffi
:'igliec
B/Awl
sEc
B7lAwl
I Ec
B7lAw25
Ec 87
Type
A Screws
1l lnstallthe
cabinet
in the
window.
11-1
Place the cabinet
into
the window
with he
top support
channel
positioned
just
in front
of the bottom
sash.
11-2
Pull the
window down
until it rests
on the cabinet,
just
behind
the
top
support
channel.
11-3 Locate
five screw
holes along the
cabinet
bottom front edge.
Center
the cabinet,
side to
side, in
the windory and
mount
it to the
window
stool using
five Type
A
screlvs.
>
For safety,
always make
sure the
bottom channel
rests securely
on the inside
font edge
ofthe window
lf
your
window
sill dimensions
are such that
this is
not
possible,
pu
may need
tc drill three
additional
holes equally
spaced on
the
bottom
channel to
properly
secure the cabinet.
>
For some
windo
ts,
it may be
necessary
to install ftm(2")
wide
strips of
hard
wood
positioned
along
the width of
the window to
obtain the
proper
alignment
and
pitcfr.
The wooden
strip must
be securely
screwed down
before
resting
the cabinet
on top of it. Neglec'ting
to ensur€
such security
may
risk
having the air conditionor
fall out of the
window
and hurting
someone.
12 Extend
the
window filler
panels.
12-1
When
ttre window
is
pulled
down,
the window
should
rest on the
cabinet
lust
behind
the windo\w
filler
panel
frames.
12-2
Slide
the filler
panels
outward
until
they touch the
sides
of the
window
Secure
the
panels
by
pufiing
four
Type
A screws
through the
mounting
holes in
the
panels
and
driving
them into
the windor,v
stml
and
sash.
13 Attach
the secunty
bracket
with a Type
A screw
l-
