3-2 Function Description
3-2-1 Cooling operation mode
The compressor is turned on and off according to the ambient temperature and set temperature.
1. Compressor on and off control
• Compressor on and off control according to the ambient temperature.
*
The compressor is turned off when ambient temperature = set temperature
*
The compressor is turned on when "ambient temperature = set temperature +1˚C"
2. Default value after power reset ➔ set temperature = 24˚C(75˚F)
FAN SPEED = HIGH
3. Set temperature indicating (setting) range : 1˚C(1˚F) interval from 18˚C to 30˚C(64˚F to 86˚F).
3-2-2 Heating operation mode
The compressor is turned on and off according to the ambient temperature and set temperature.
1. Compressor on and off control
• Compressor on and off control according to the ambient temperature.
*
The compressor is turned off when "ambient temperature = set temperature +1˚C"
*
The compressor is turned on when "ambient temperature = set temperature -1˚C"
2. Default value after power reset ➔ set temperature = 24˚C(75F˚)
FAN SPEED = HIGH
3. Set temperature indicating (setting) range : 1˚C(1˚F) interval from 16˚C to 30˚C(61˚F to 86˚F).
3-2-3 Fan operation mode
1. If "Fan operation mode" signal is received from remocon or panel.
➔ the compressor is immediately turned off and only fan motor is operated at set blowing speed.
➔ it changes such as "HIGH ➔ MED ➔ LOW ➔ HIGH"( if Fan speed is selected).
2. The initial FAN speed is set to "HIGH".
3. The set temperature can not be indicated and set.

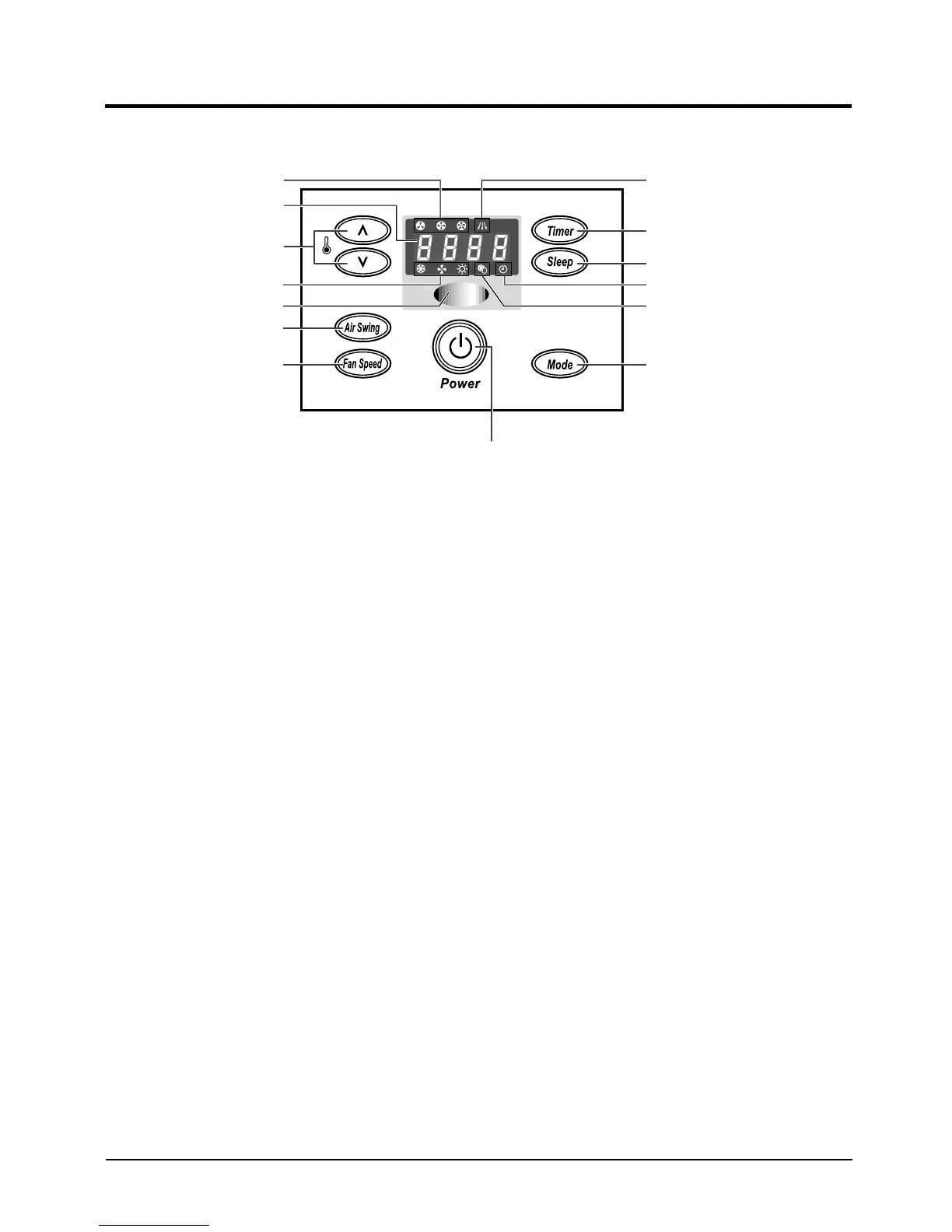

Fan speed indicators
(LOW, MED, HIGH)
Temperature/Timer
settings
Temperature adjustment
buttons
Operating mode indicators
(COOL, FAN, HEAT)
Remote Control sensor
Air flow blade swing button
Fan speed adjustment
button
Air flow blade swing indicator
Sleep timer setting button
Timer indicator
Deice indicator
ON/OFF button
Operating mode selection
button(COOL, FAN, HEAT)
Timer setting button
