Samsung CE124CF - 7-5 Exploded View & Parts List - Casing Parts

7-6 Samsung Electronics

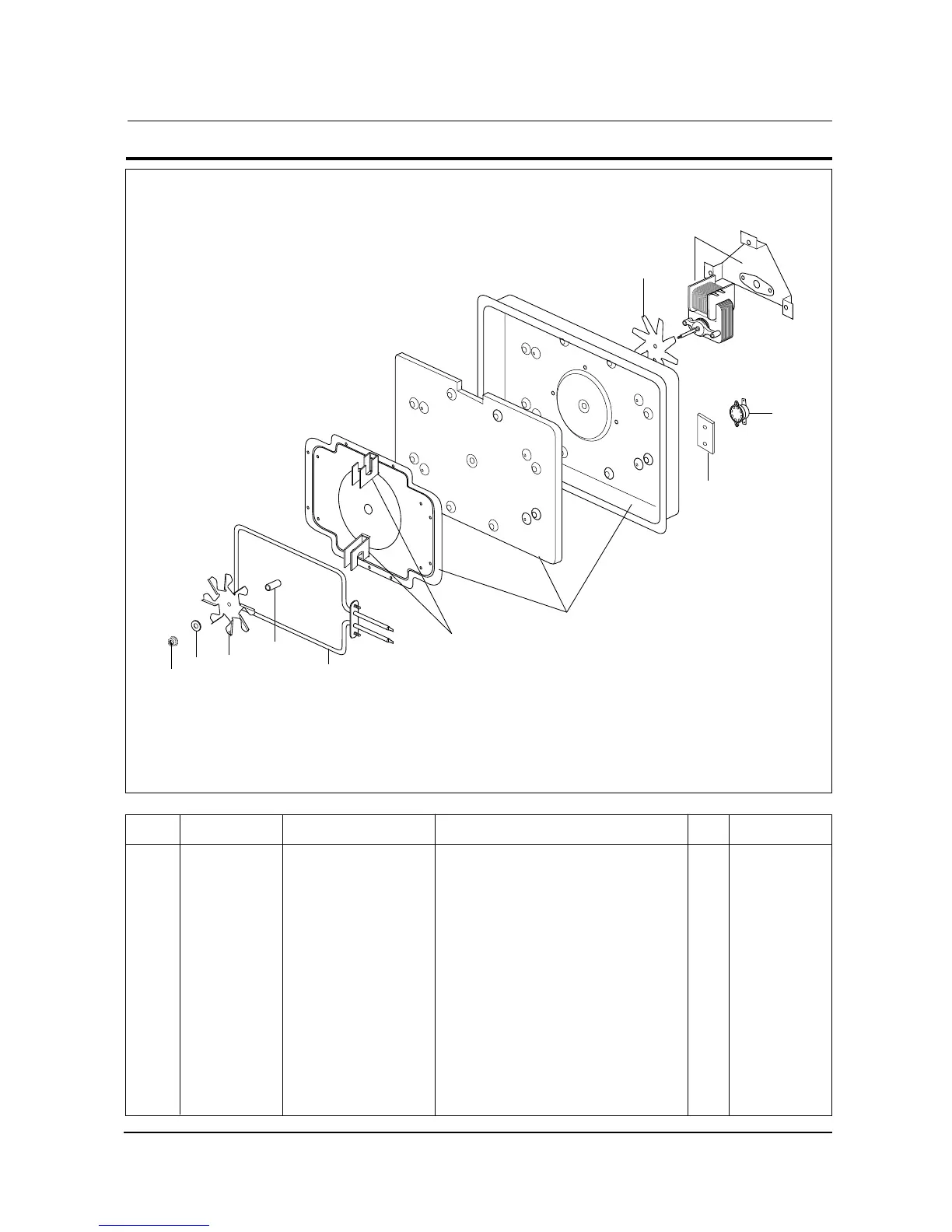

7-5 Exploded View & Parts List - Casing Parts
Ref. No. Parts No. Description Specification Q'ty Remarks
1 DE31-90020A BLADE-FAN ALSTAR,T0.6,W250,L250 1
2 DE47-70028B HEATER-CONVECTION D8,230V6.1A,1400W,RE-1280 1
3 DE72-30014A BUSH-GEAR MOTOR SWRM3,ID5,OD7,ZPC3 1
4 DE92-90212C ASSY-HEATER COVER RE-1280,NEW,SYSTEM,VI 1
5 DE61-50192A BRACKET-HEATER-B STS430,T0.8,W28.5,L65.4,RE-128 2
6 DE60-30016B NUT-FLANGE M4,MSWR10,FEFN 3 BL-FAN/HEATER
7 DE31-90019A BLADE-FAN SECC,T0.6 1
8 DE91-50031A ASSY-CONV.MOTOR AMM90-004AUEA,230V0.33A 1
9 DE47-20044A THERMOSTAT PW-2N,150/60,BKT23.8MM 1
10 DE60-40026A WASHER-PLAIN ID5.5,OD12,T1.0,SBC1 1
11 DE62-10014A INSULATION-TCO T2.0,W34,L26,YEL 1
12 DE92-90079G ASSY-CASING RE-1270/1280,230V,NEW,SYSTEM,V 1
10
1
3
2
4
5
6
7
8
9
11
Exploded Views and Parts List
