Samsung CE124CF - 7-4 Exploded View & Parts List - Control Parts

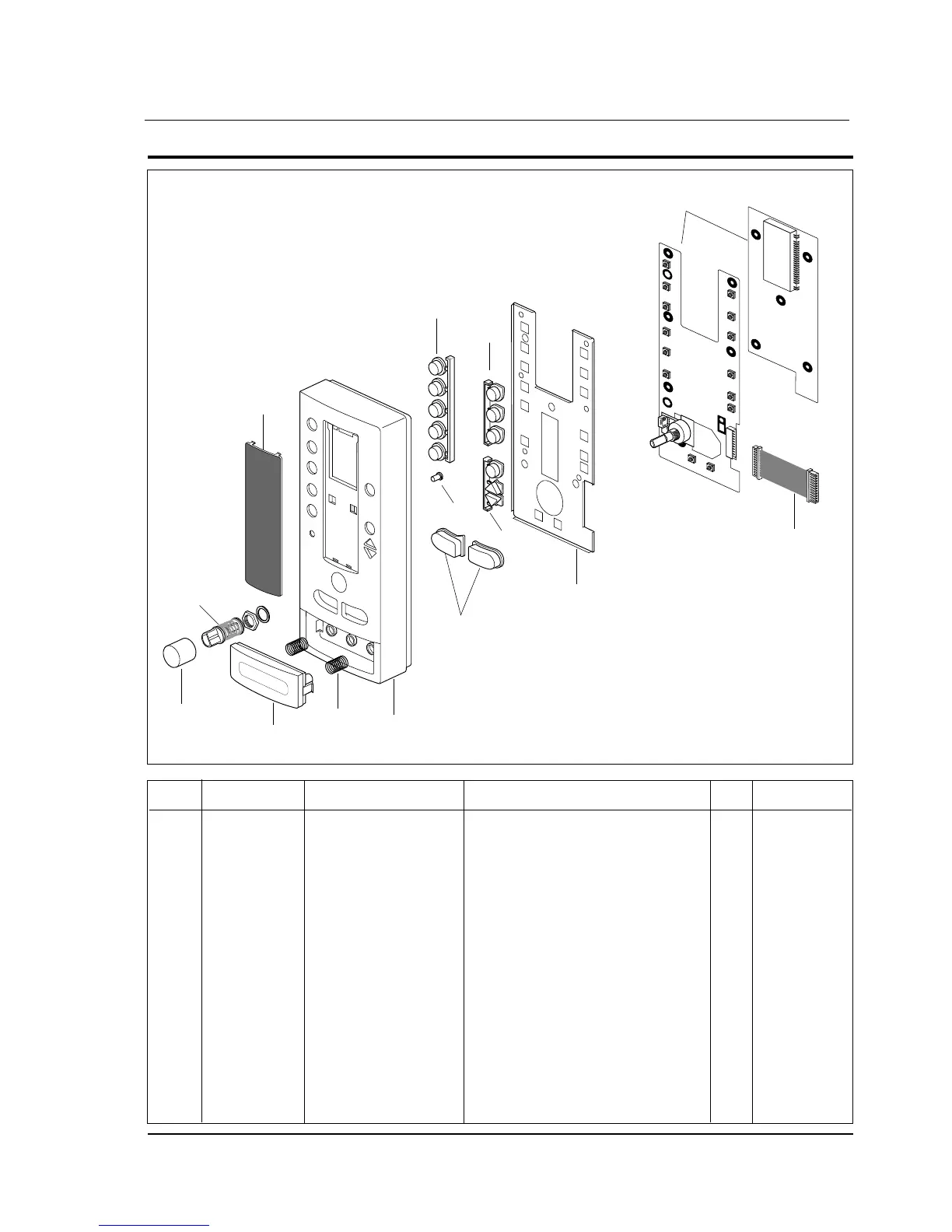

7-4 Exploded View & Parts List - Control Parts
Ref. No. Parts No. Description Specification Q'ty Remarks
1 DE66-20025A BUTTON-PUSH PC-LEXAN#141,RP-WH-01-K,19G,RE 1
2 DE72-70051M CONTROL-PANEL PC(LEXAN#141),RP-WH-01-K,230G 1
3 DE67-40027H WINDOW-DISPLAY ACRYL,SMOG,40G,AMFO 1
4 DE66-20041A BUTTON-CANCEL PC-LEXAN#141,RP-WH-01-K,6G,RE 2
5 DE66-20026A BUTTON-SELECT-L PC-LEXAN#141,RP-WH-01-K,16G 1
6 DE66-20042A BUTTON-SELECT-R PC-LEXAN#141,RP-WH-01-K,10G 1
7 DE66-20080A BUTTON-CLOCK PC-LEXAN#141,RP-WH-01-K,1G,RE 1
8 DE66-20024A BUTTON-MORE PC-LEXAN#141,RP-WH-01-K,7G,RE 1
9 DE61-50072A BRACKET-PANEL SECC,T0.8,W107,L286.35 1
12 DE39-30091A WIRE LEAD-PCB(B) L60,RE-1280(SAW),AMFO 1
13 DE64-10038C KNOB-VOLUME PC(LEXAN#141),WHT,5G,CIRCLE,PR 1
14 DE61-70076A SPRING-BUTTON HSWR,PI0.6 2
15 DE34-20030A SWITCH-VOLUME 4M17736 1
16 DE93-30066M ASSY CONTROL-BOX CE124CF(SAW),AMFO 1
13
1
14
2
4
15
3
5
9
12
6
7
8
11
Exploded Views and Parts List
Samsung Electronics 7-5
