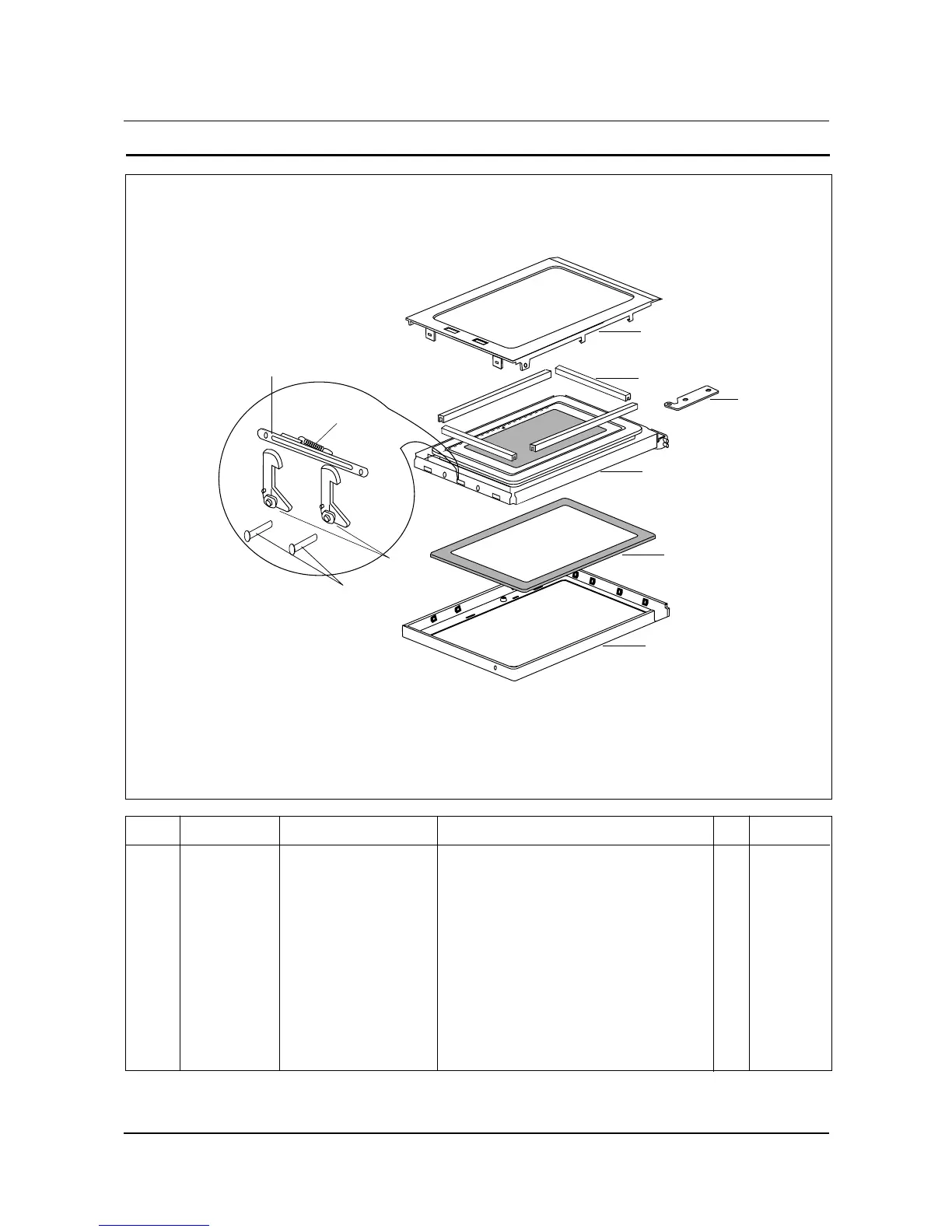

7-3 Exploded View & Parts List - Door Parts
Ref. No. Parts No. Description Specification Q'ty Remarks
1 DE64-40045A DOOR-A PC-LEXAN141,RP-WH-01-K,310G,RE 1
2 DE67-20029E SCREEN-DOOR(B) TEMP,GLASS,T3.2XW313XL435,VITA 1
3 DE92-50037A ASSY DOOR-E SILICON,BONDING 1
4 DE64-40103A DOOR-C PBT-1500G,158G 1
5 DE64-40124A DOOR-KEY NYLON#66-2411GF,5.1G 2
6 DE92-90138A ASSY-BRACKET SLIDER RE-909CG 1
7 DE61-70057B SPRING-KEY HSWR,PI1.2,D5.8,L47 1
8 DE92-90052A ASSY-HINGE-U SBC1,T2.0 1
9 DE73-90018A FERRITE DB-867CPE,T4.1,W7.0,L1310 1
10 DE60-60021A PIN-DOOR MSWR,ZPC3 2
1
2
3
4
5
6
7
9
10
8
