Samsung CLP-310 - Page 56

Disassembly and Reassembly
3-13
Samsung Electronics

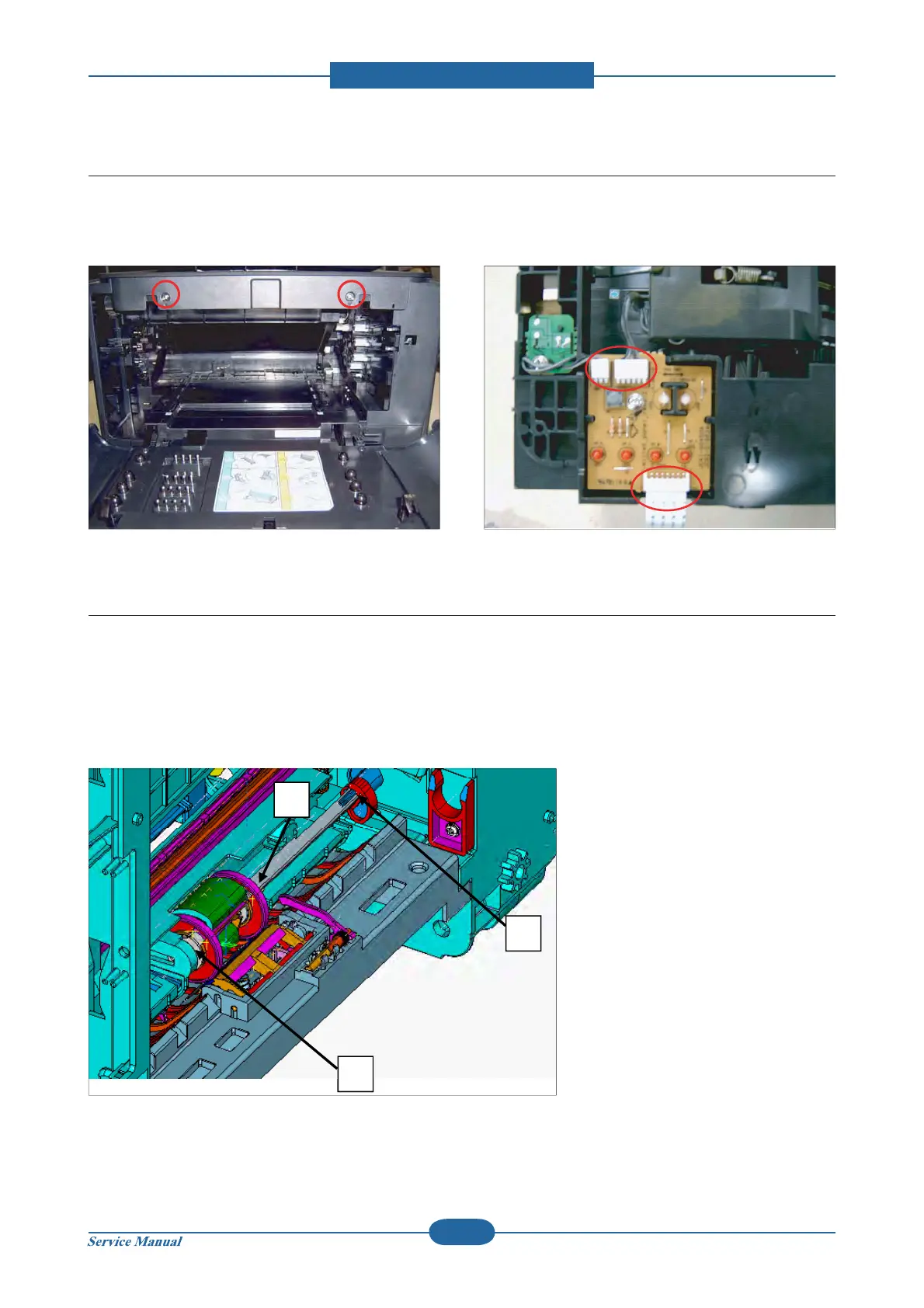

3.4.10 OPE PBA
3.4.11 Pick up roller
1. Remove the 2 screws securing the TOP Cover.
And lift the Top cover up
2. Lift OPE PBA up after unplug the 2 connectors
Before disassembling, remove the Guide Pick up unit.( refer to 3.4.8)
1
. Remove the hook from the position A and push to the left side.
2. Separate the Pick up roller Assy after release the position B.
3. Remove the hook of the part C,B in sequence.
4. Separate the Pick up rubber.
A
C
B
A
C
B
and 1 at cable..
