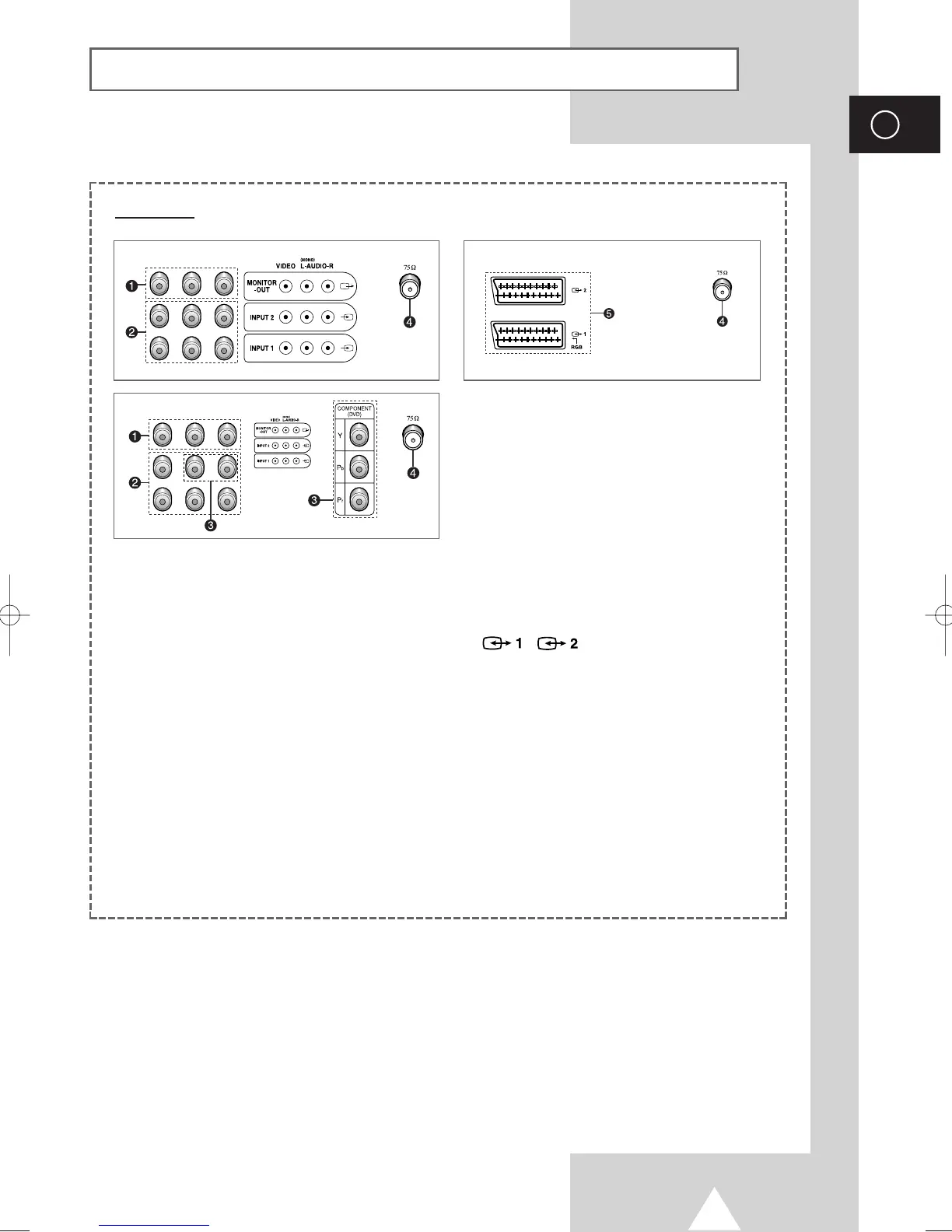

Connection Panels (depending on the model) (continued)
Œ
MONITOR OUT (VIDEO / L-AUDIO-R)
Outputs for external devices.
´ AV 1 (VCR) -VIDEO/AUDIO(L/R)
AV 2 (VCR) -VIDEO/L-AUDIO-R
Inputs or outputs for external devices,
such as VCR,DVD, video game device or
video disc players.
ˇ COMPONENT (DVD)
VIDEO (Y/P
b
/P
r
) and AUDIO (L/R) inputs
for Component.
¨ VHF/UHF (75Ω)
75Ω Coaxial connector for Aerial/
Cable Network.
ˆ / (SCART)
Inputs or outputs for external devices,
such as VCR, DVD, video game device or
video disc players.
Rear of TV
➢
Available format for Component Inputs : 480i
➢
When using the mono equipment such as camcorders, video disc players and some video
game device, connect to the “AUDIO-L” input connector.
