Samsung
DCS-408 & 408i Keyphone System Installation Manual
ā 2 ā
System Dimensions
Item
Height
(mm)
Width
(mm)
Depth
(mm)
Weight
(kg)
DCS-408/DCS-408i 190 350 60 2.0
DPIM 29 90 120 0.2
System Structure
System Capacity
DCS-408: 4 analogue trunk lines
Trunk
DCS-408i: 2 BRI lines (4 channels)
(BRI2 line (2 channels) can be substituted for
ISDN station lines)
Station
8 lines (4 lines for digital keysets and 4 lines
for analogue telephones)
Music-on-hold/ Background
music channel
1 (internal or external)
General-purpose dry contact 1
SIO port 1
External page 1
CAUTION
: The station lines have a fixed configuration of eight lines: 4 lines for digital keysets and
4 lines for analogue telephones. It is not possible to modify this configuration.

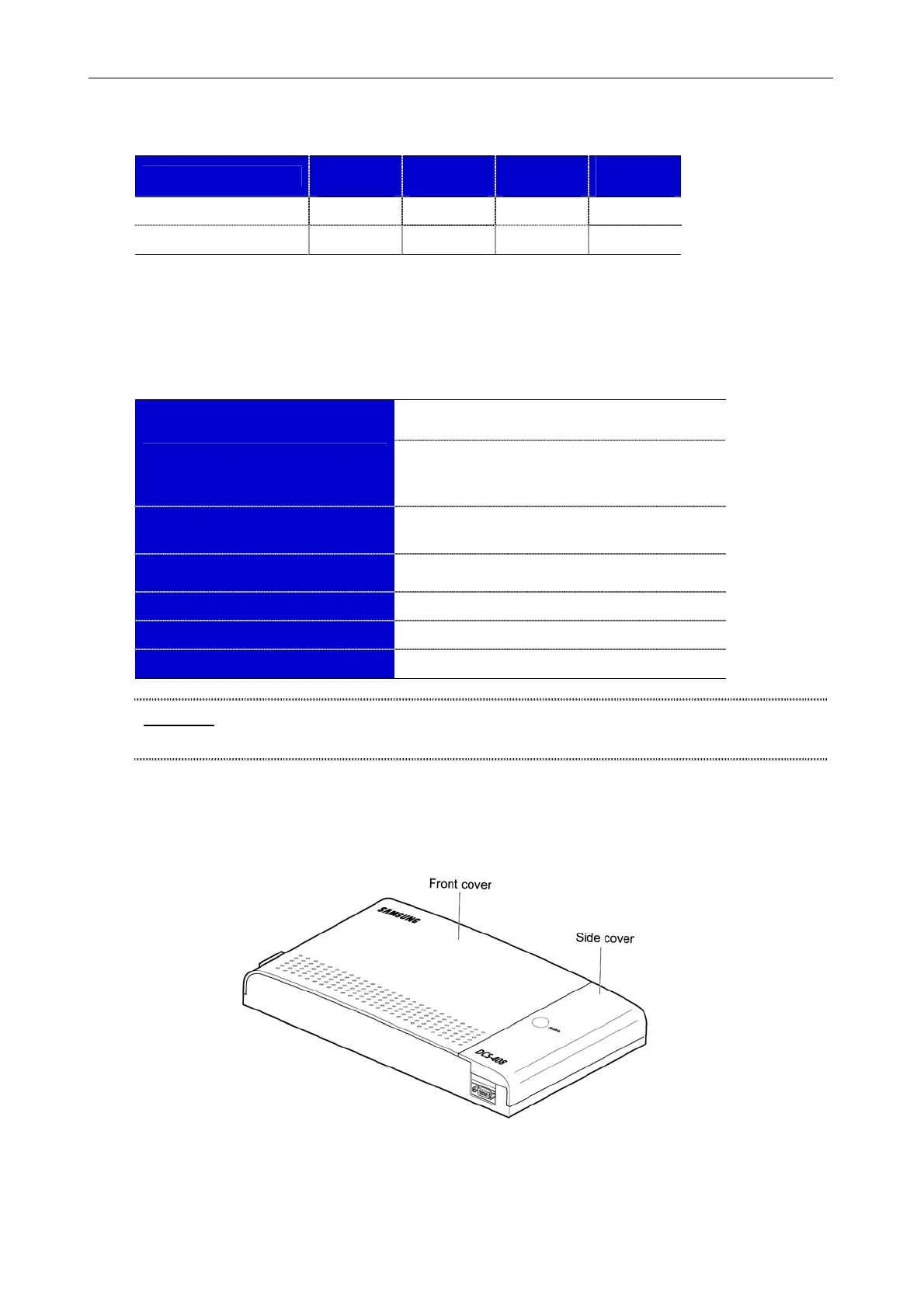

Front View of System
To Next Page
