English - 11
02 INSTALLATION

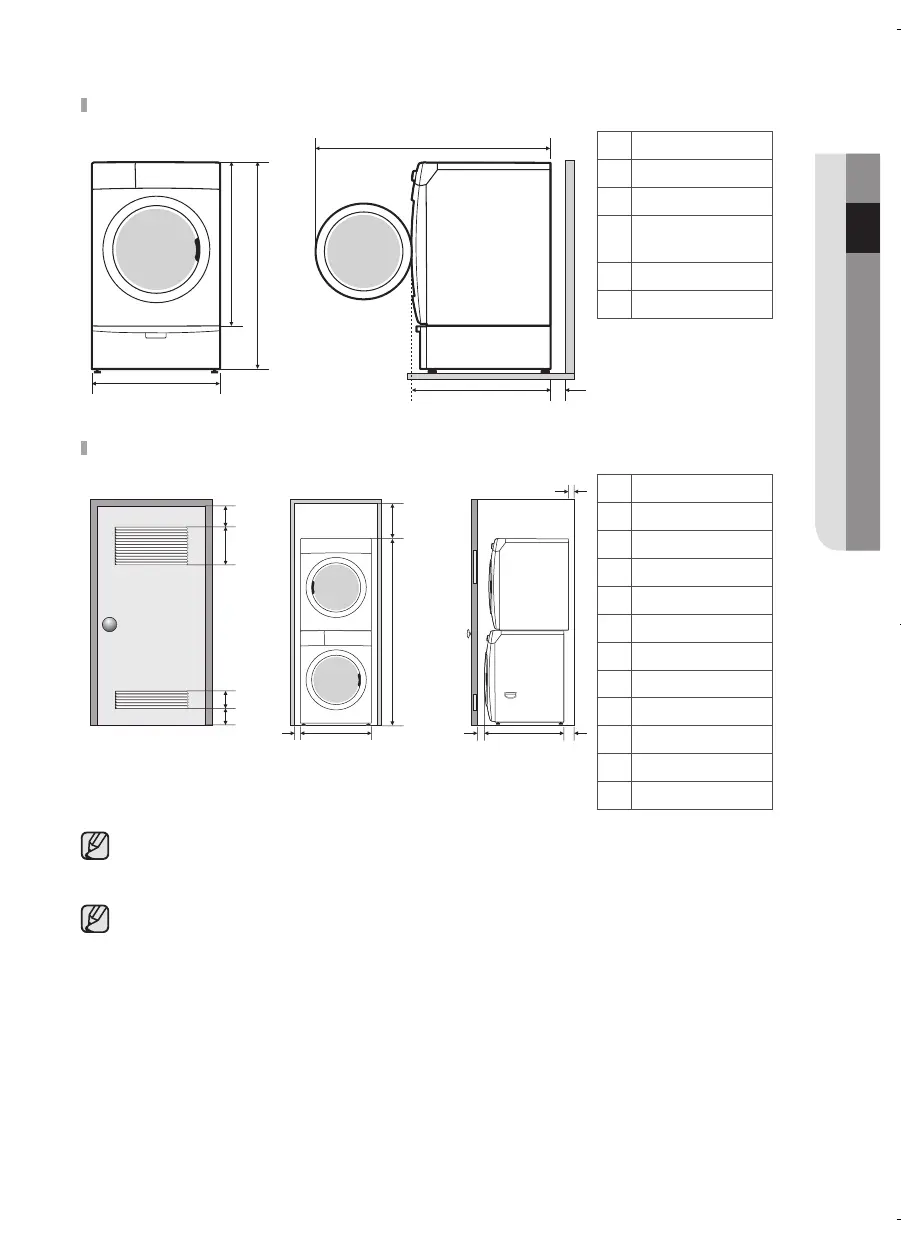

Installation with pedestal
A
B
C
D
A 38.7 in. (984 mm)
B 53.3 in. (1355 mm)
C 27 in. (686 mm)
D
53 in. (1345 mm) to
clear open door
E 32.4 in. (823 mm)
F 5.9 in. (150 mm)
Installation with stacked washing machine and dryer
A
E
I
F
GH JKL
B
C
D
A 3 in. (76 mm)
B 48 in.² (3100 mm²)
C 24 in.² (1550 mm²)
D 3 in. (76 mm)
E 6 in. (152 mm) *
F 77.5 in. (1968 mm)
G 1 in. (25 mm)
H 27 in. (686 mm)
I 5.9 in. (150 mm)
J 1 in. (25 mm)
K 32.4 in. (823 mm)
L 8.9 in. (226 mm)
The front of the closet must have two unobstructed air openings (B, C) for a combined minimum total
area of 72 in² (465 cm²) with a minimum clearance of 3 in. (7.6 cm) at the top (A) and bottom (D).
External exhaust elbow requires additional space (L).
Stacking (MODEL NO: SKK-7A/SKK-8K)
Samsung’s Washer and Dryer can be stacked to maximize usable space.
You can purchase an optional stacking kit from your Samsung retailer.
For details about stacking and compatible models, refer to the user manual included in the stacking kit you
purchase.
