Troubleshooting _ 38

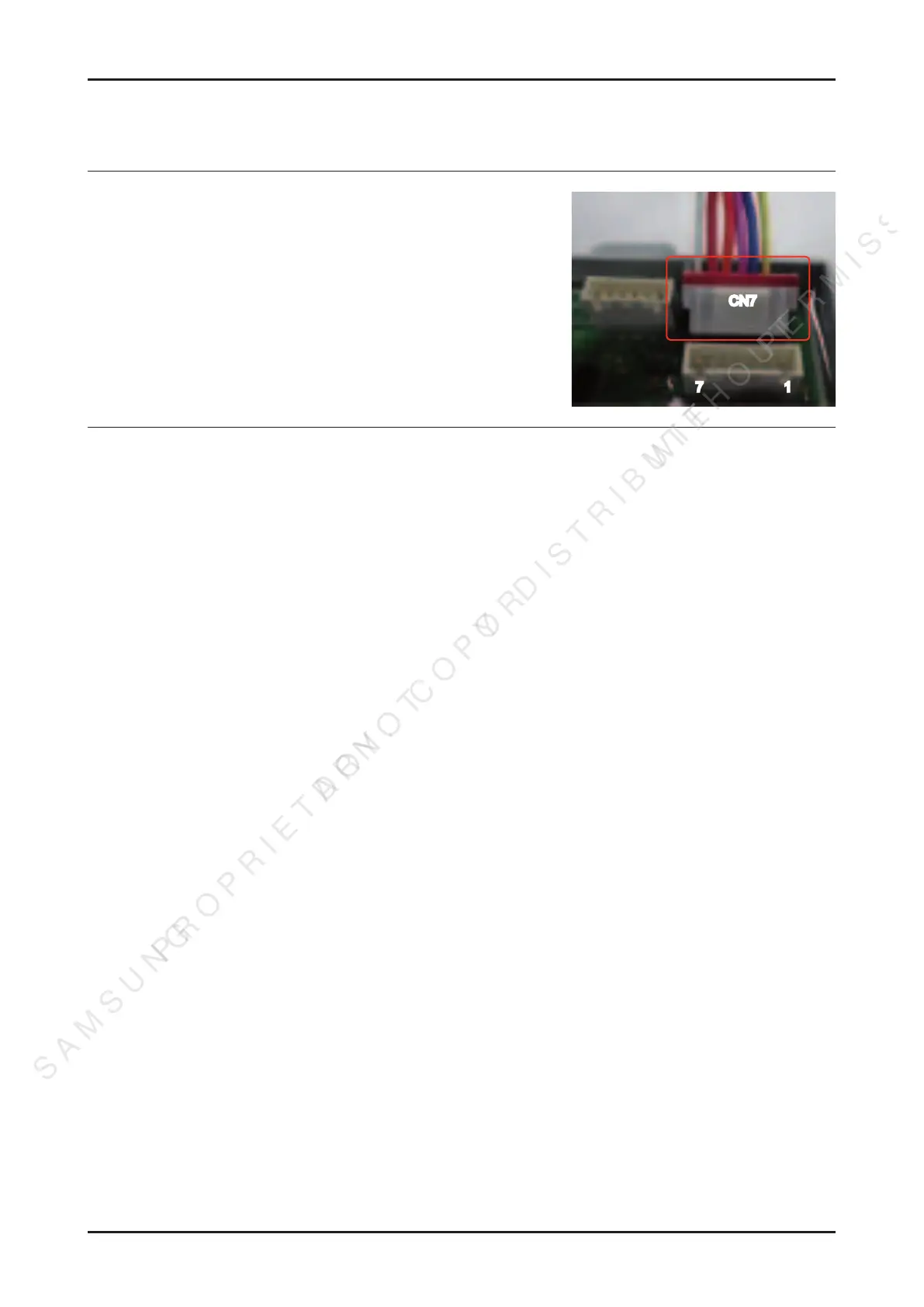

■ Sensor Bars & temperature sensor check
Sensor Bars
Disconnect harness and test Pink wire Pin 4 to Orange wire Pin 5.
• Approx ∞ Ω without laundry
• Approx. 10 Ω ~ 100 MΩ with wet clothes
Cycling Thermistor1
Disconnect harness and test Blue wire Pin 3 to Red wire Pin 6.
• Approx 10 KΩ at 25 °C/77 °F
Cycling Thermistor2
Disconnect harness and test Yellow wire Pin 2 to White wire Pin 7.
• Approx 238.231 KΩ at 25 °C/77 °F
CN7
7 1
